Thread Repair Specifications

Engine Block:

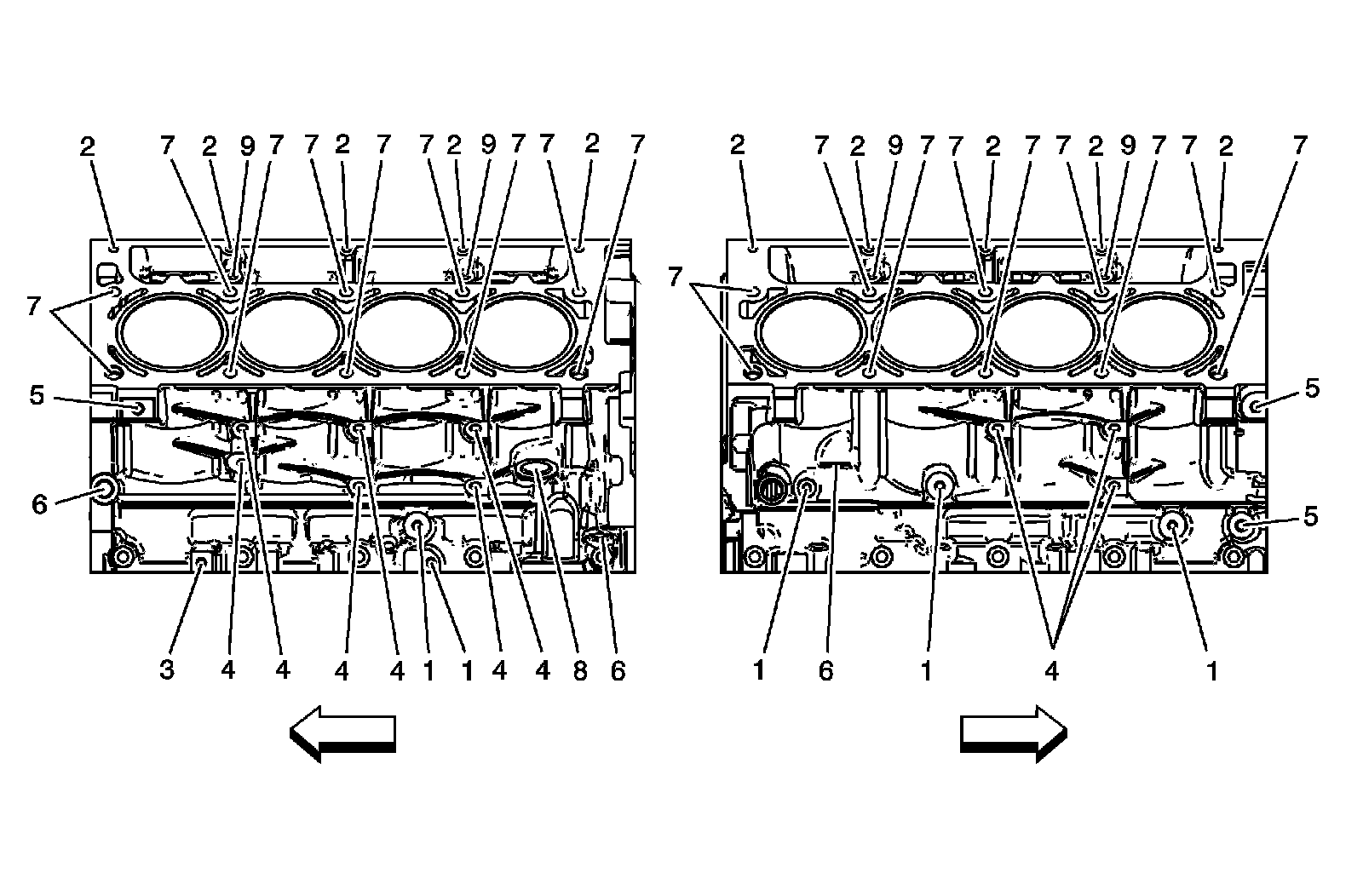

Engine Block - Left/Right Side Views:

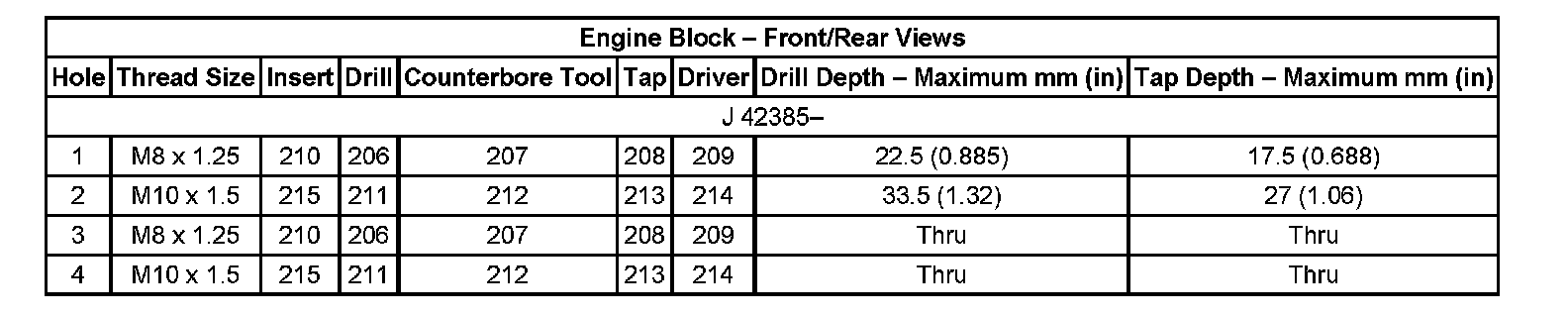

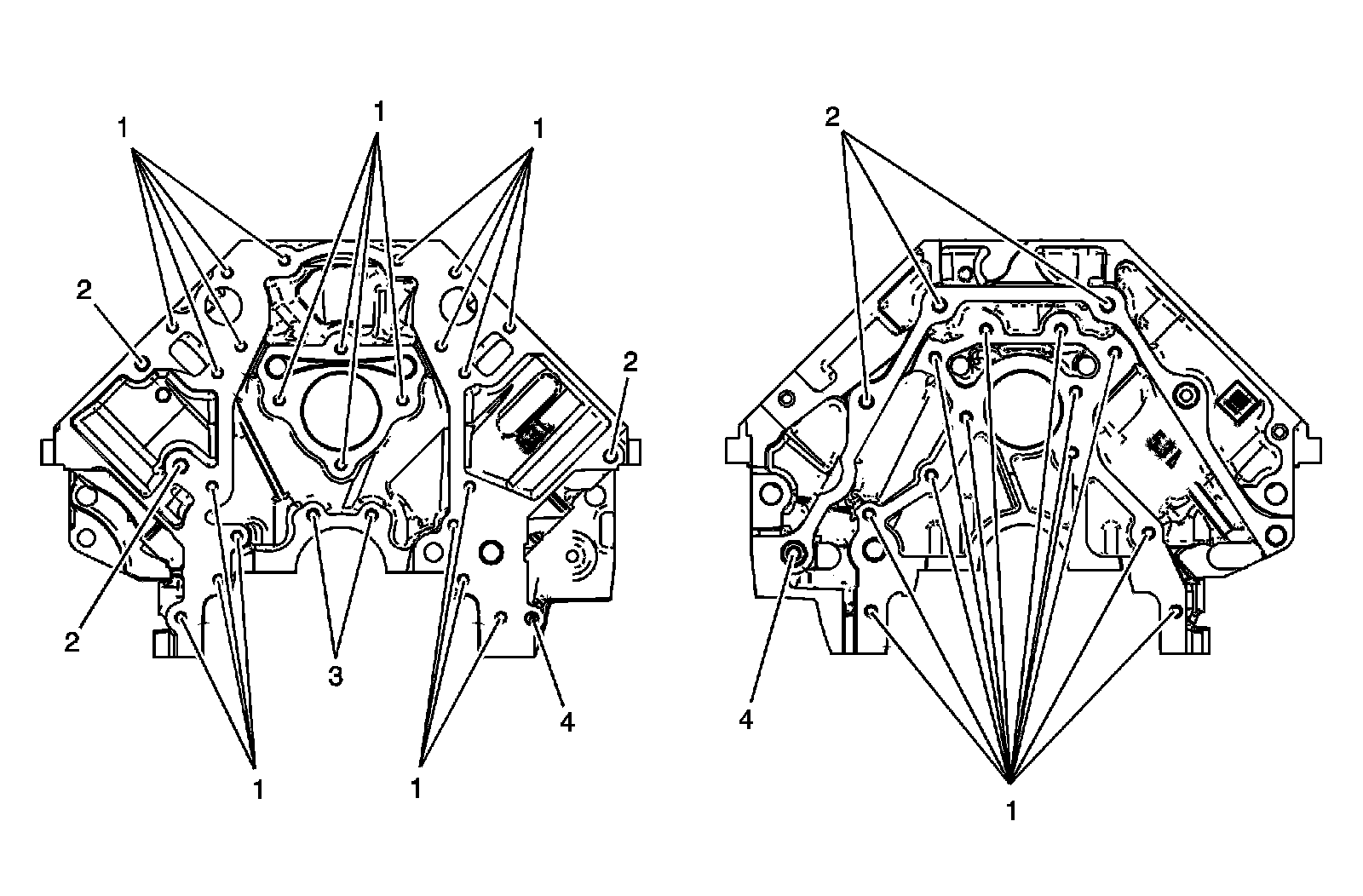

Engine Block:

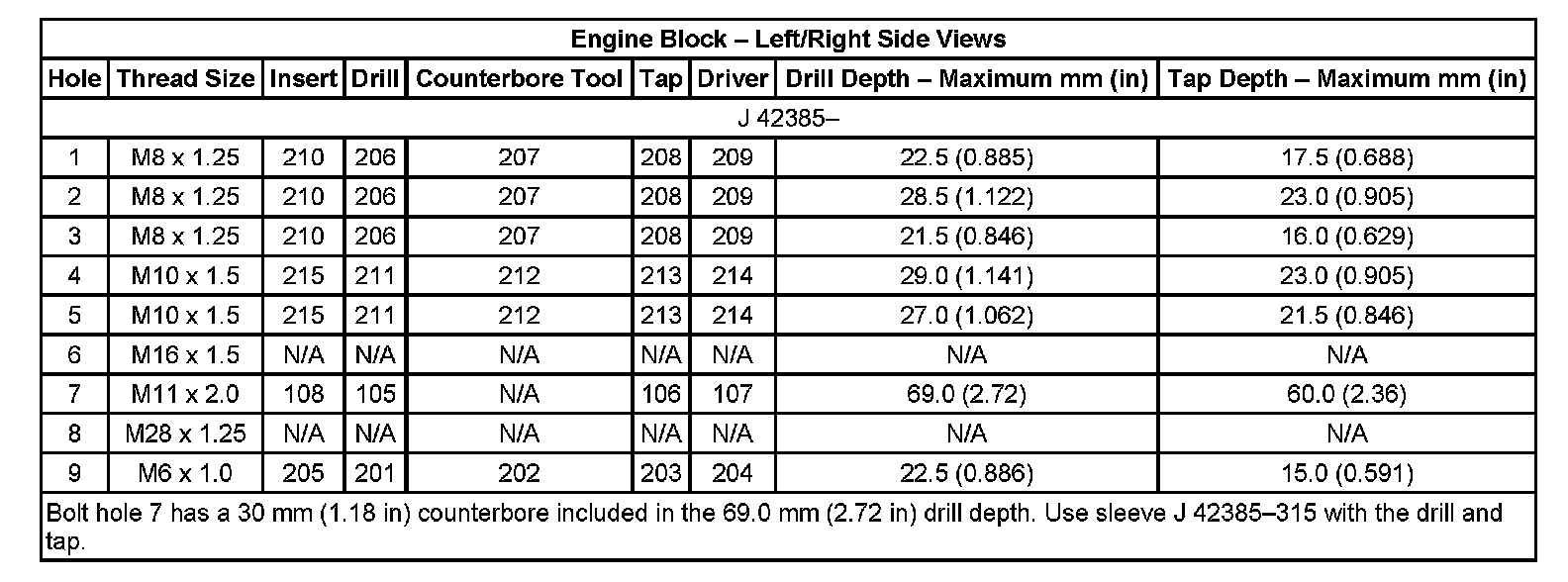

Engine Block - Left/Right Side Views:

Engine Block:

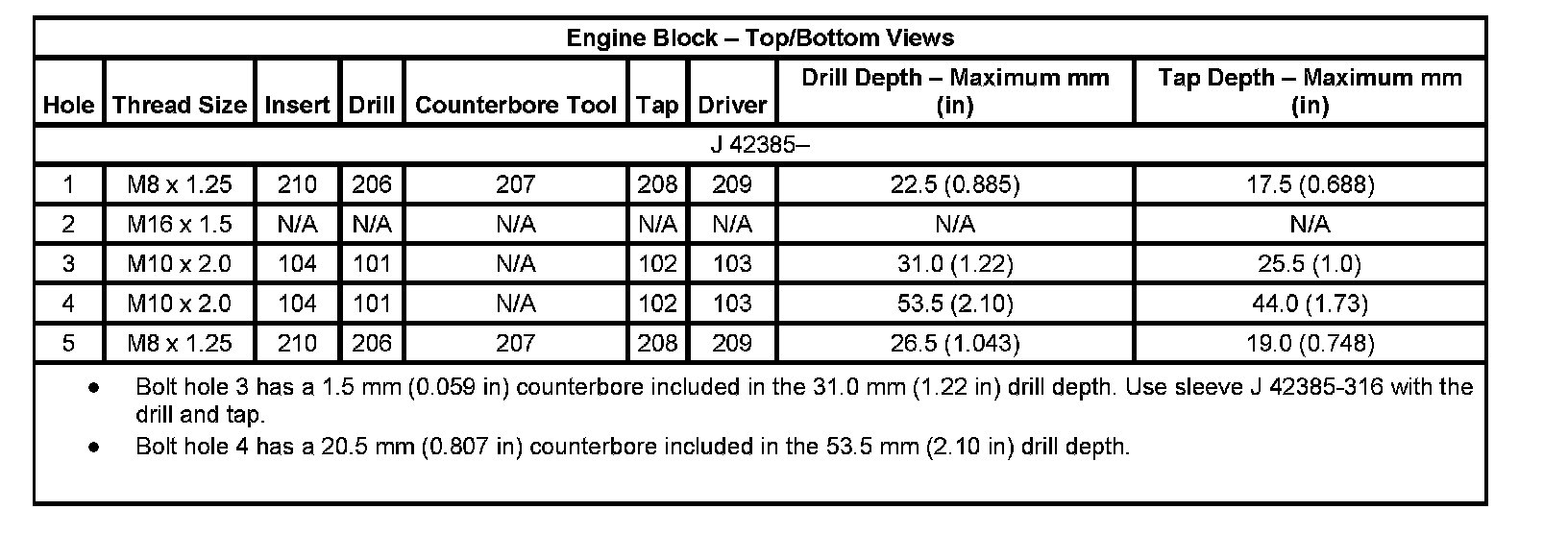

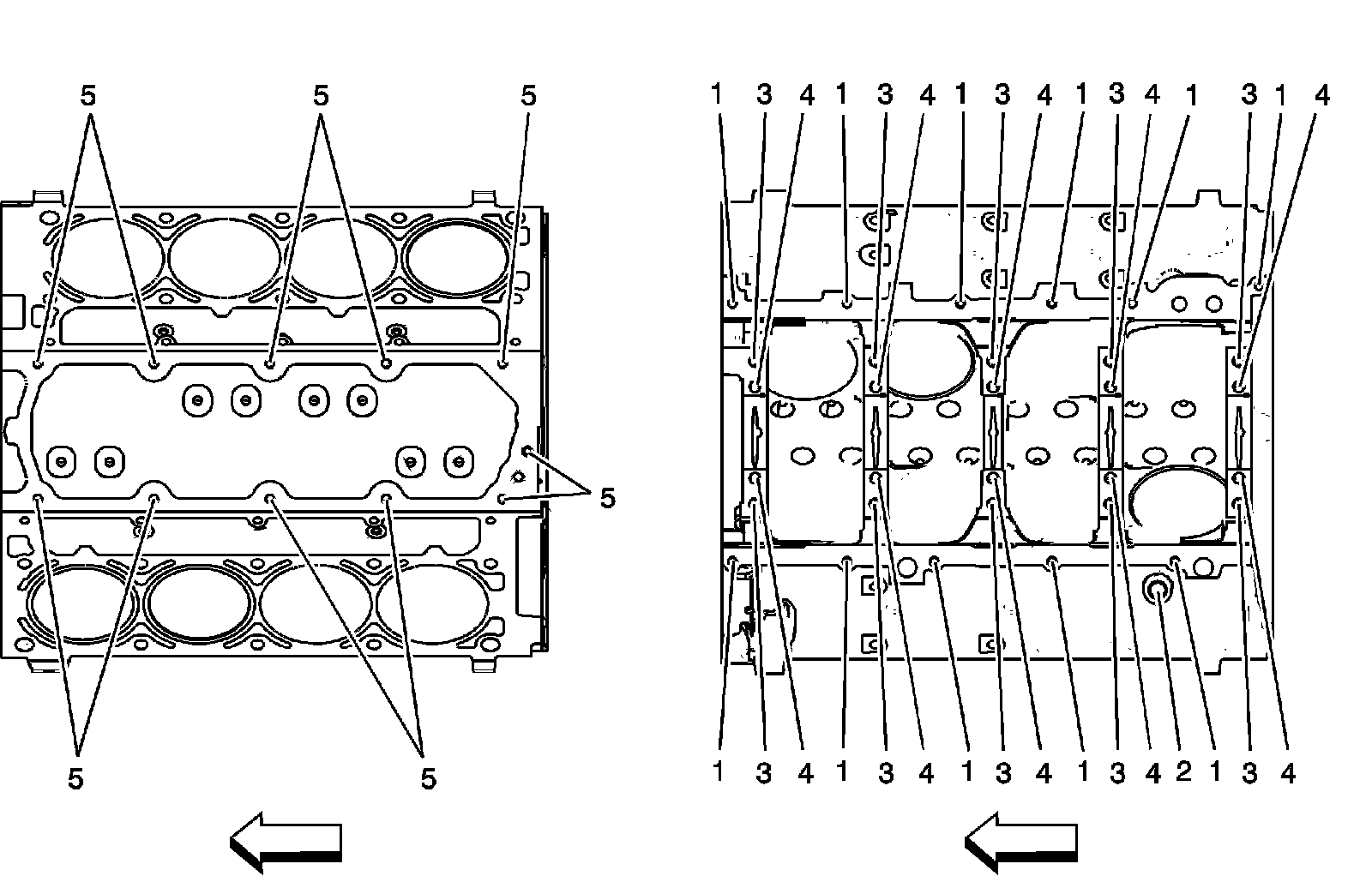

Engine Block - Top/Bottom Views:

Cylinder Head:

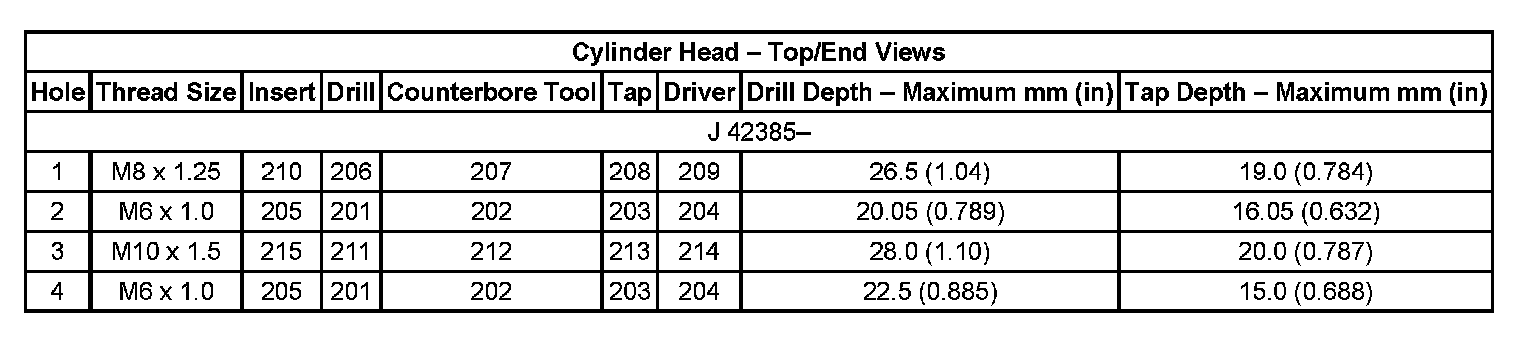

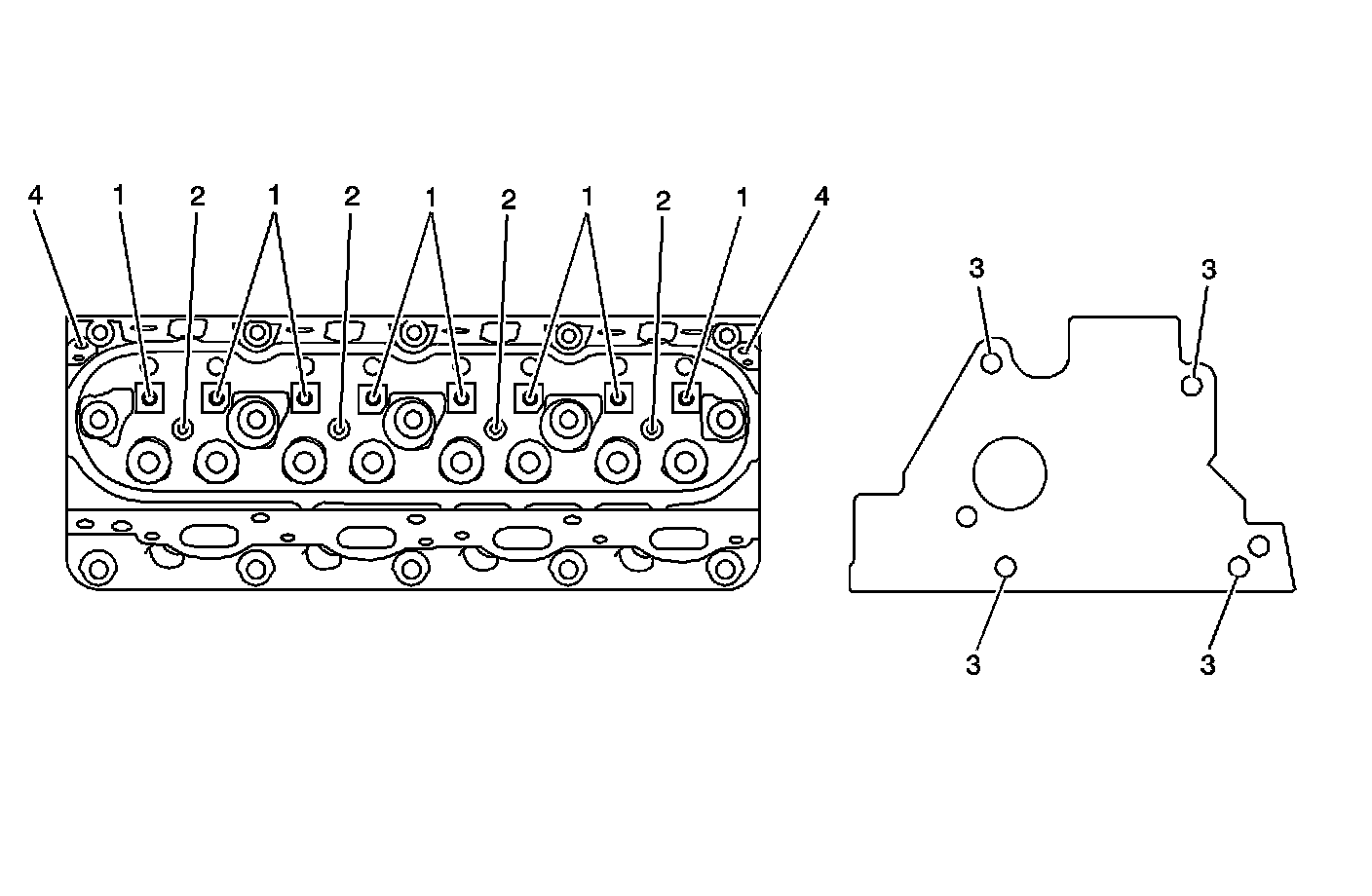

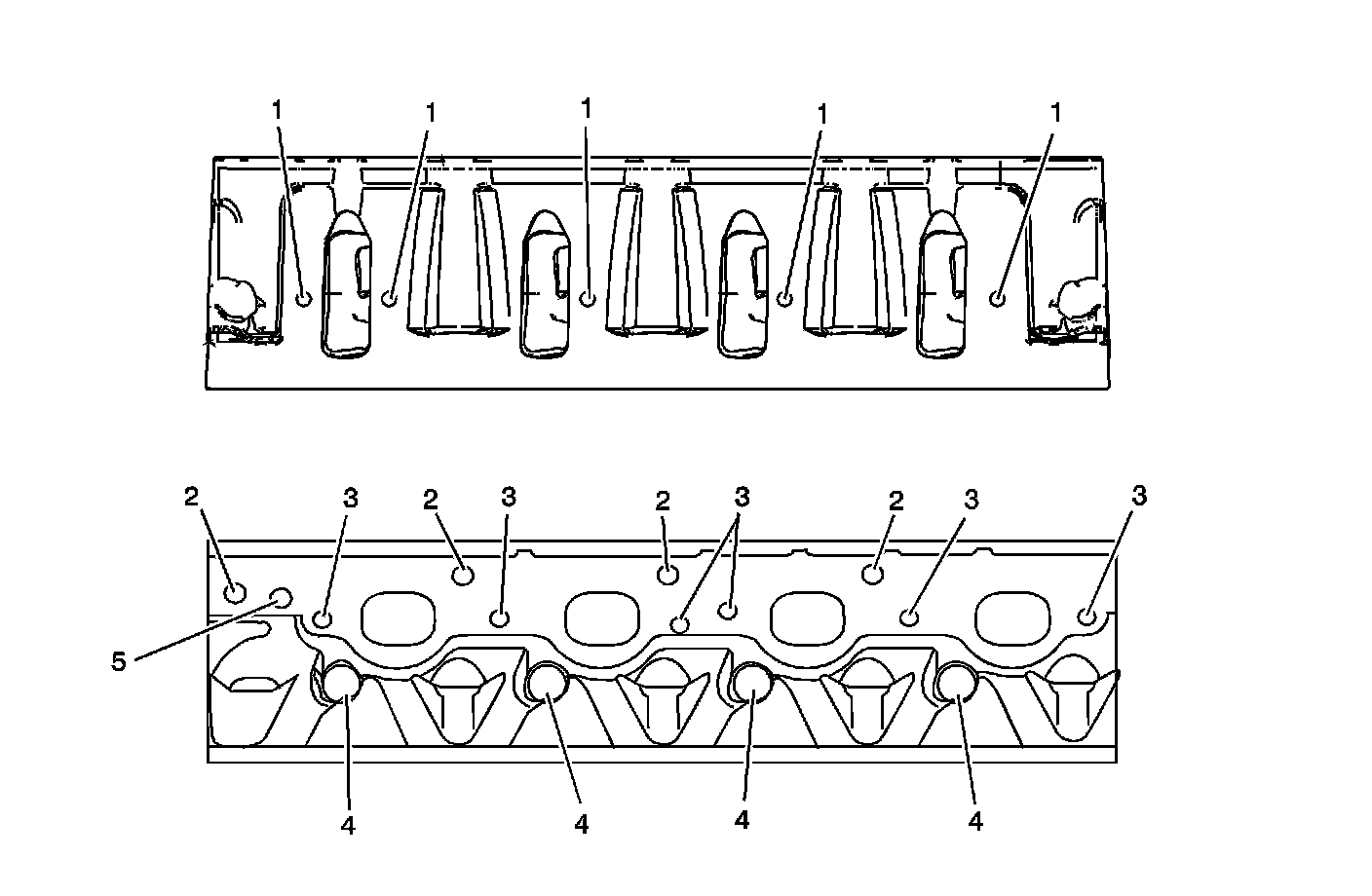

Cylinder Head - Top/End Views:

Cylinder Head:

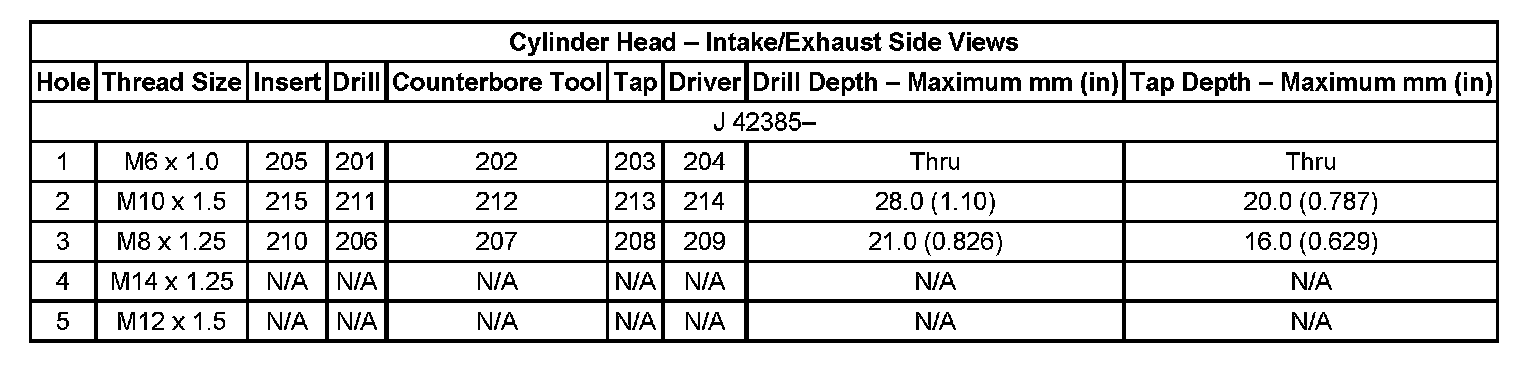

Cylinder Head - Intake/Exhaust Side Views:
