Home >> Chevrolet >> 2007 >> Impala V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams

Ignition Control Module: Diagrams

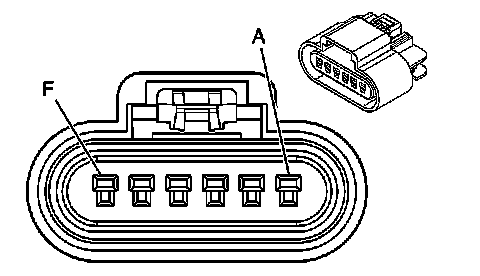

Engine Controls Connector End Views

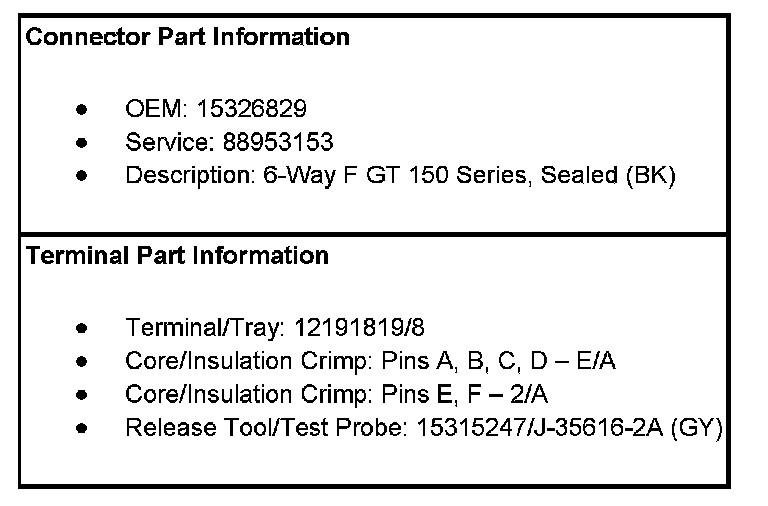

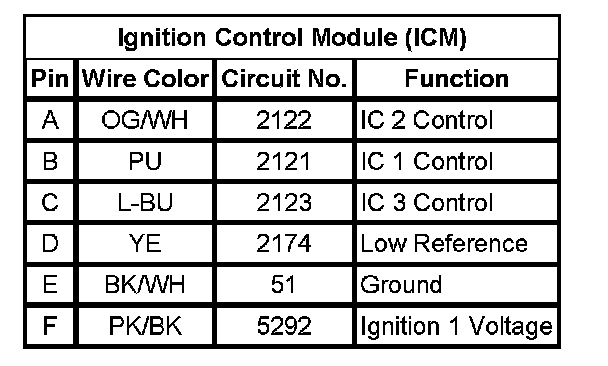

Ignition Control Module (ICM)
