HHR L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Engine Compartment Views
Engine Compartment Views

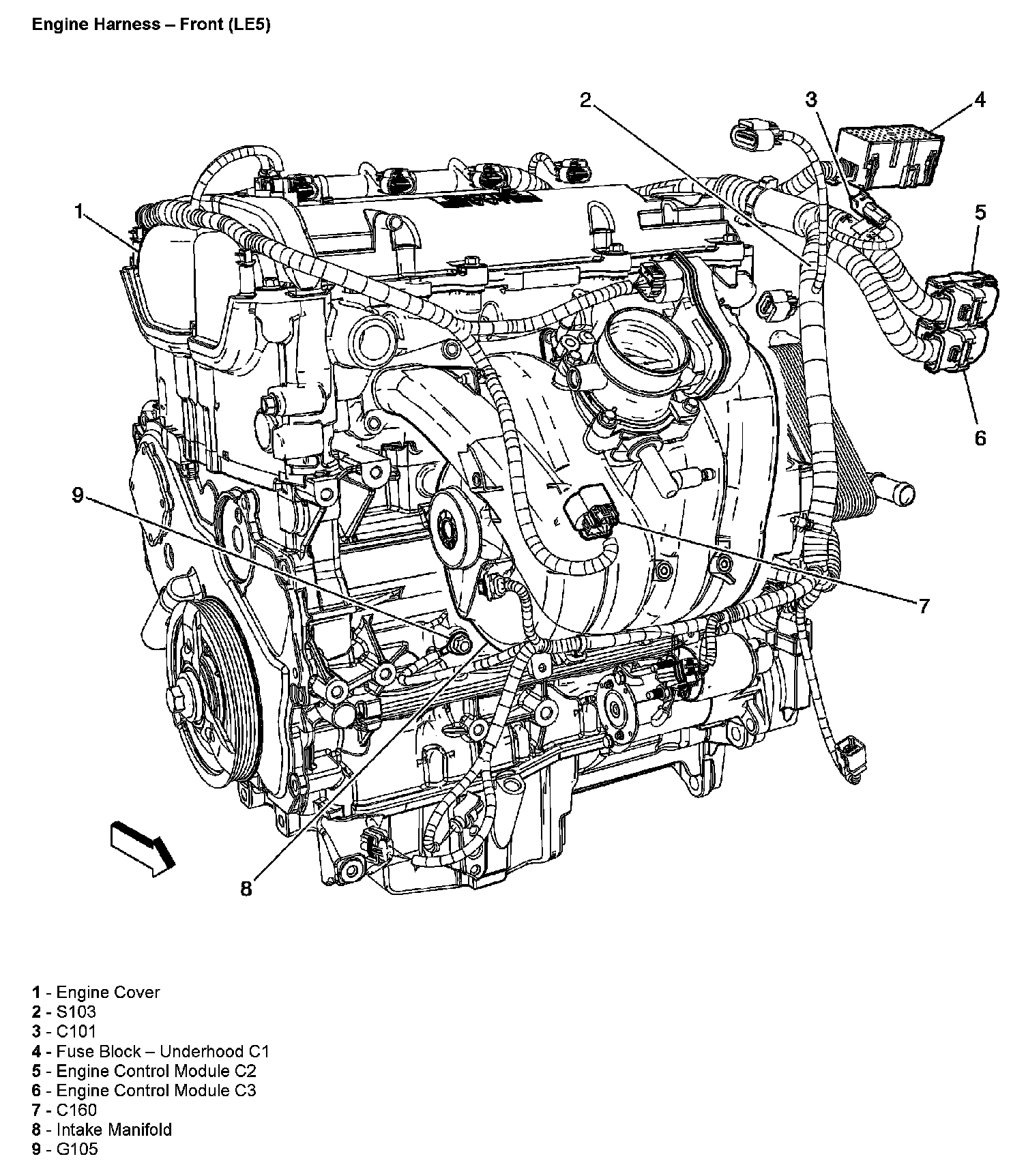

Engine Harness - Front (With RPO Code LE5):

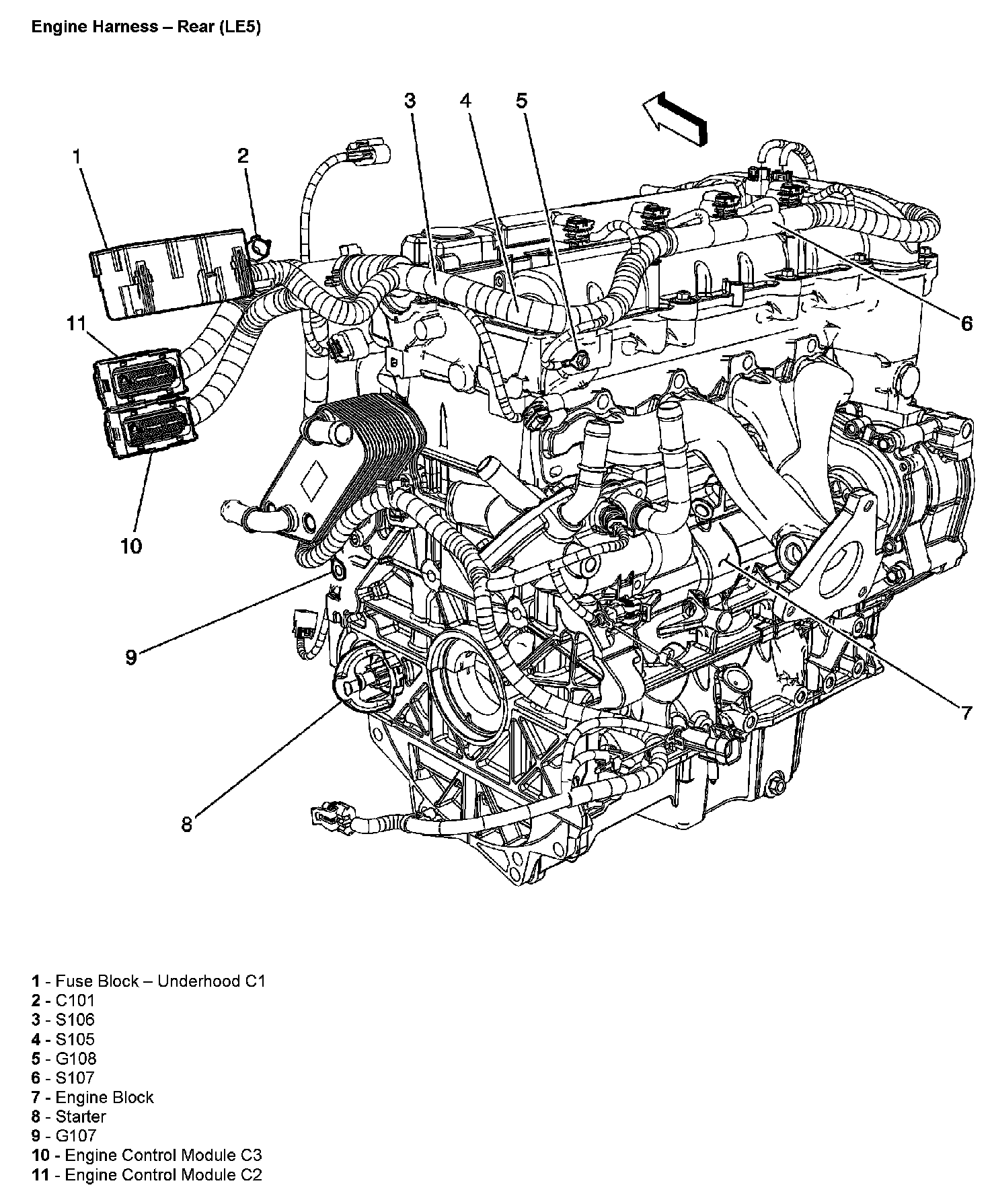

Engine Harness - Rear (With RPO Code LE5):
