Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Lock >> Diagrams

Ignition Lock: Diagrams

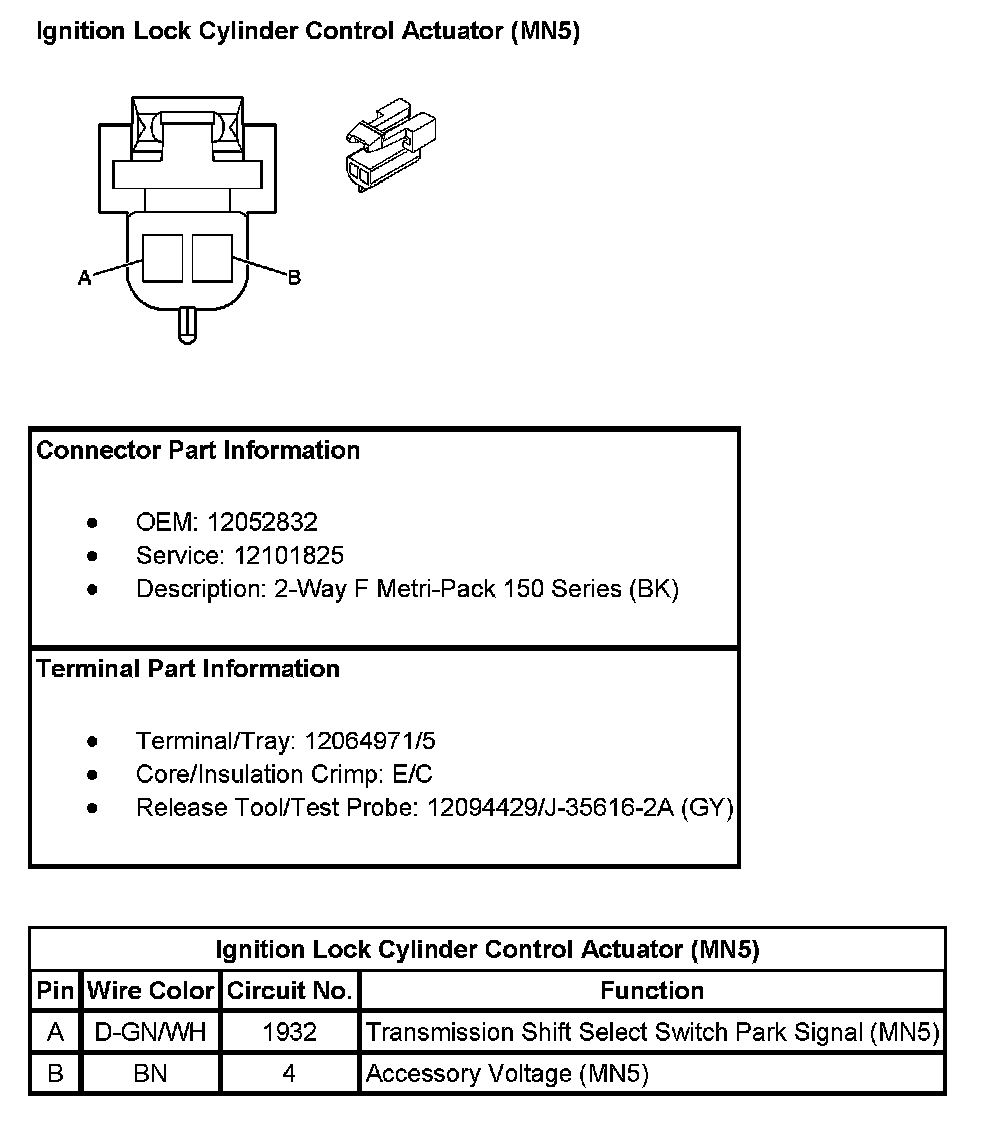

Ignition Lock Cylinder Control Actuator (With RPO Code MN5):
