Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams

Vehicle Speed Sensor: Diagrams

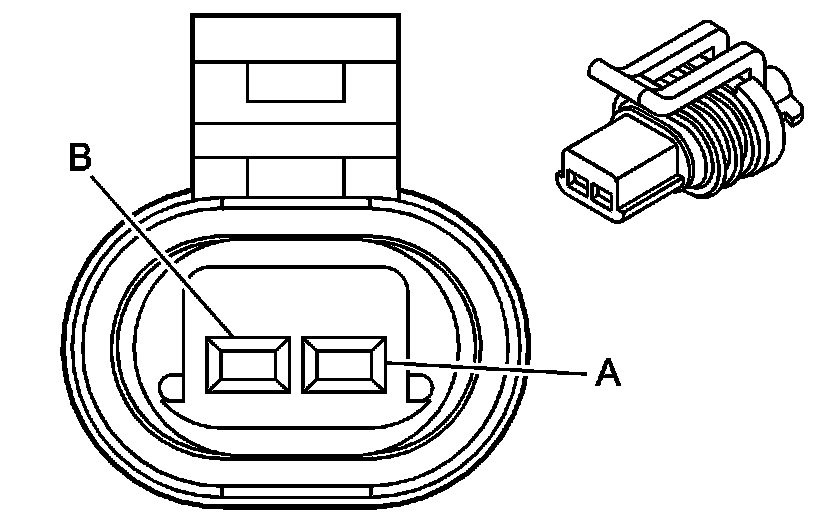

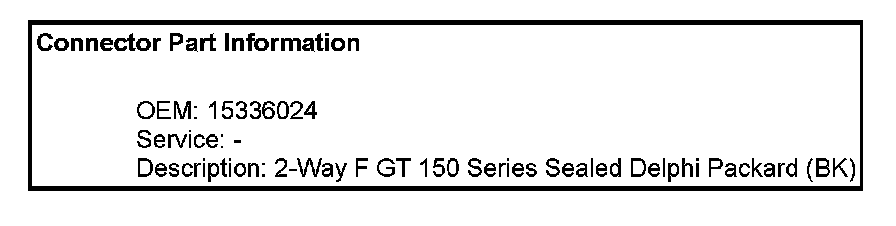

Manual Transmission Connector End Views

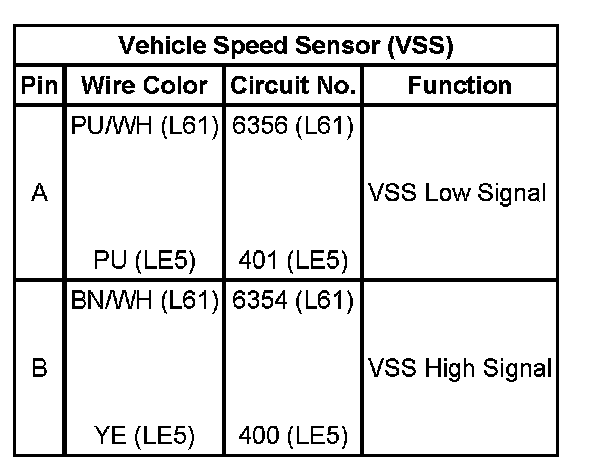

Vehicle Speed Sensor (VSS)







Vehicle Speed Sensor (VSS):
