Transmission Position Sensor/Switch: Diagrams

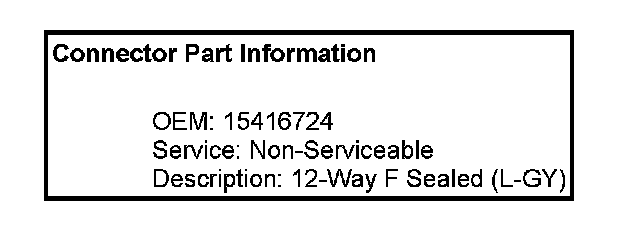

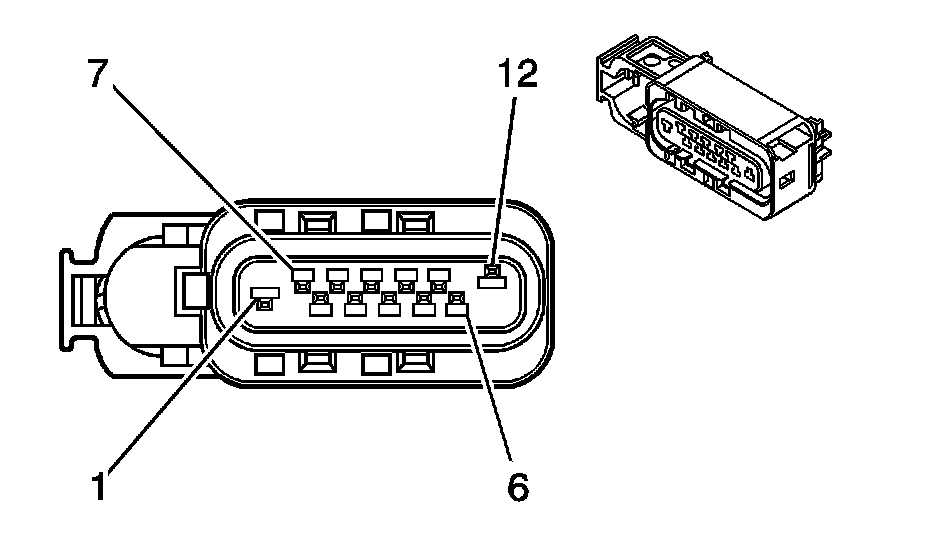

Automatic Transmission Related Connector End Views

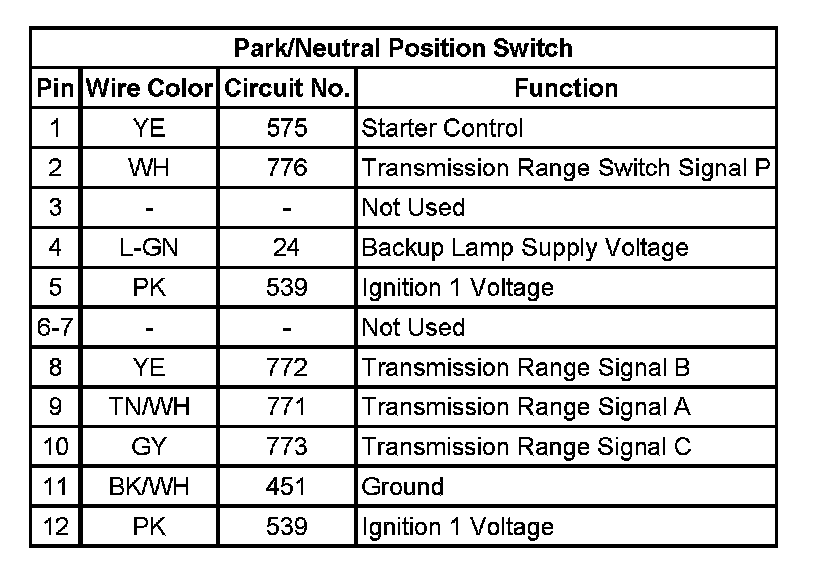

Park/Neutral Position Switch:
