Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch

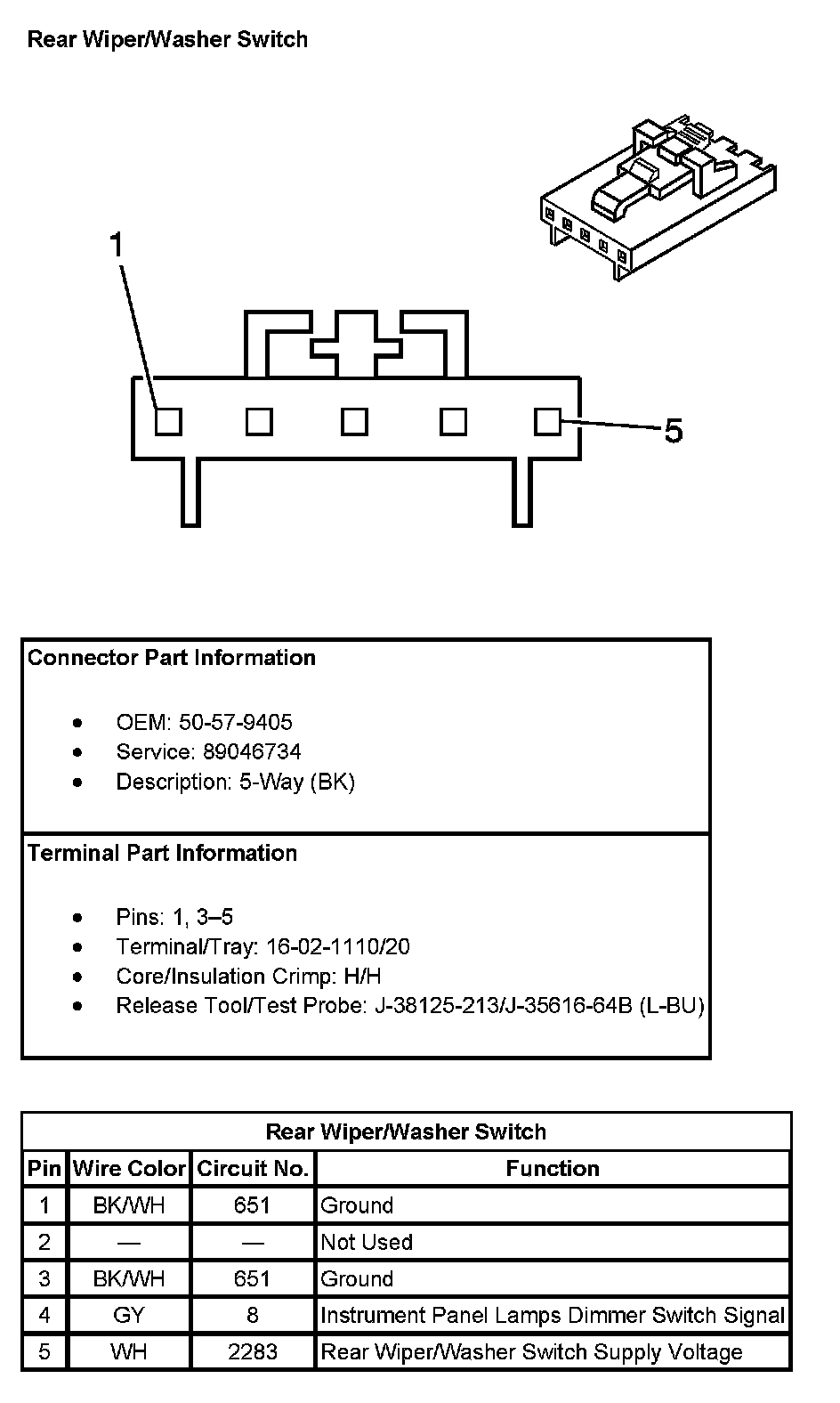

Rear Wiper/Washer Switch:

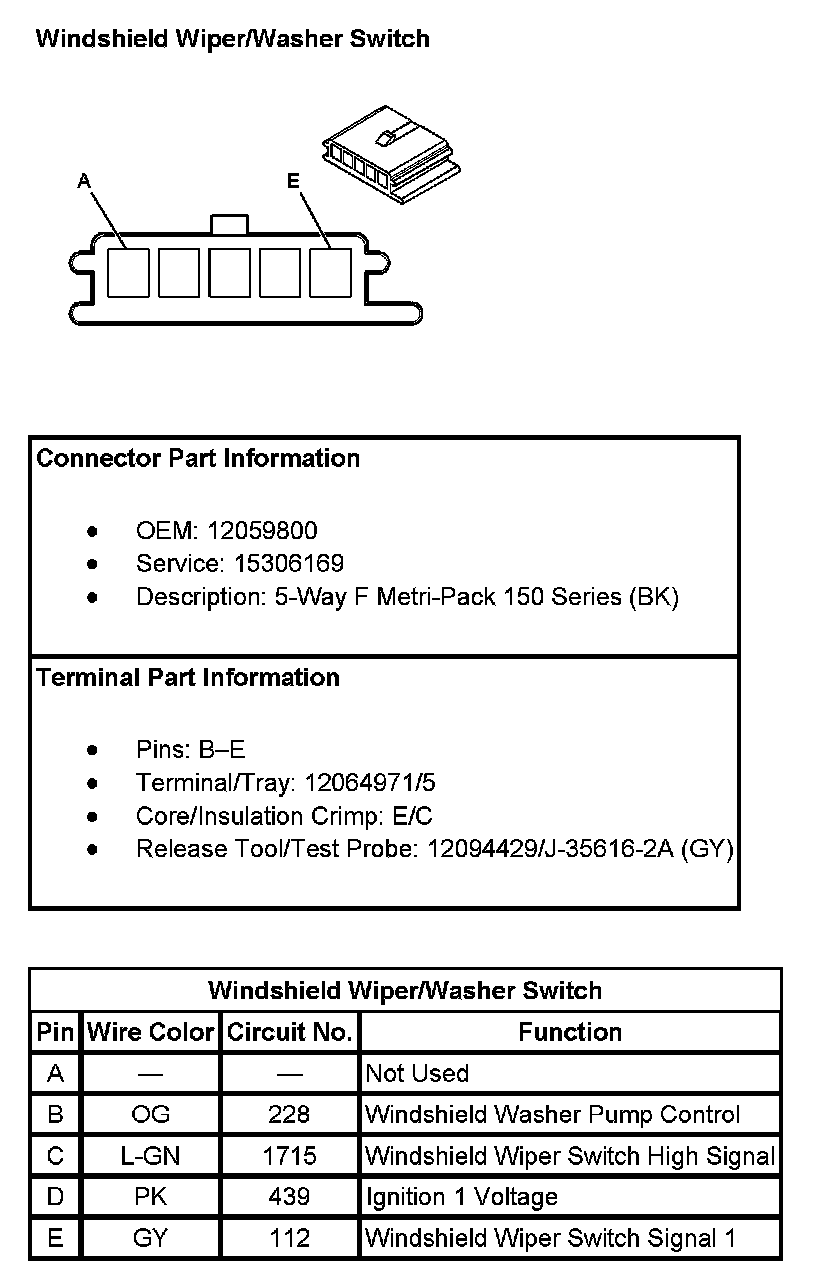

Windshield Wiper/Washer Switch:
