Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module

Sunroof / Moonroof Module

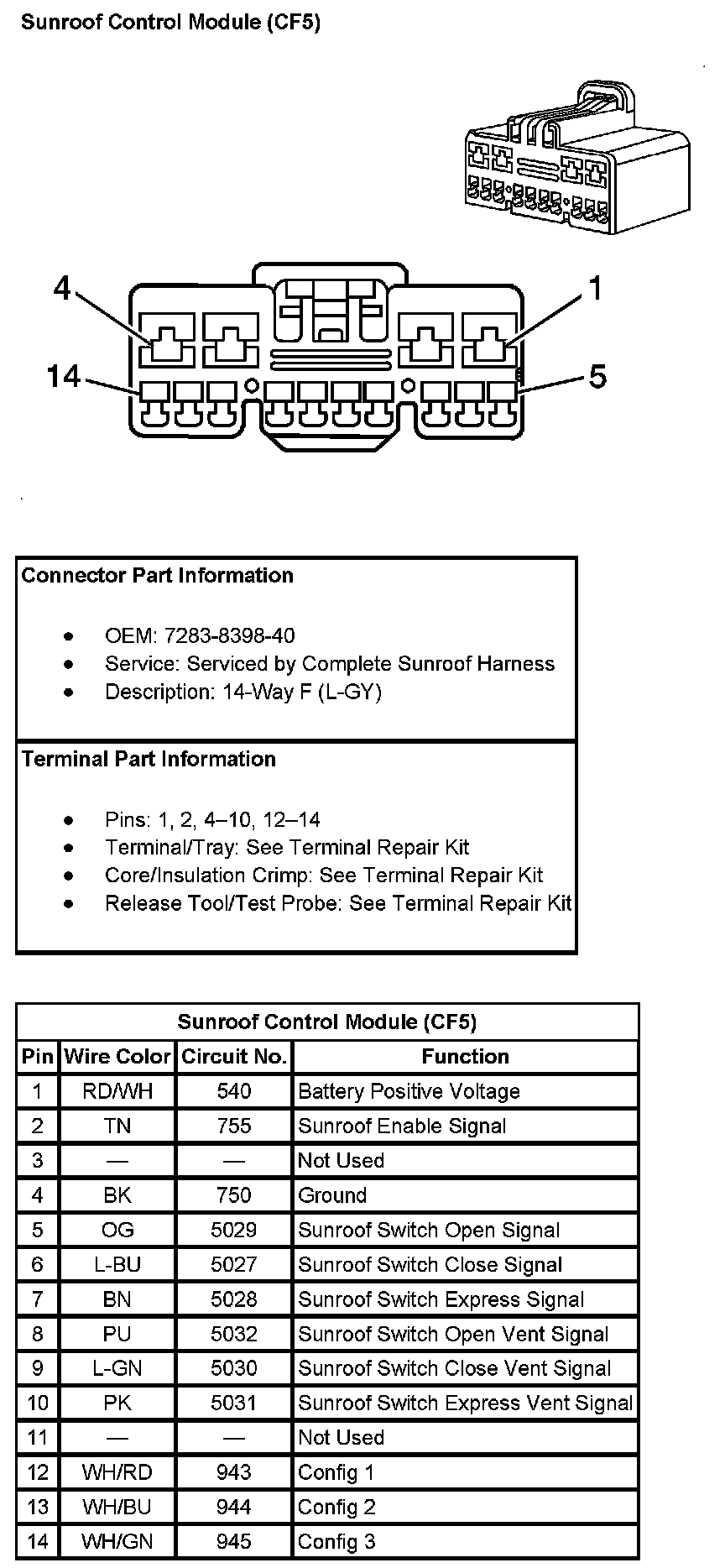

Sunroof Control Module (With RPO Code CF5):
