Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module

Seat Temperature Control Module

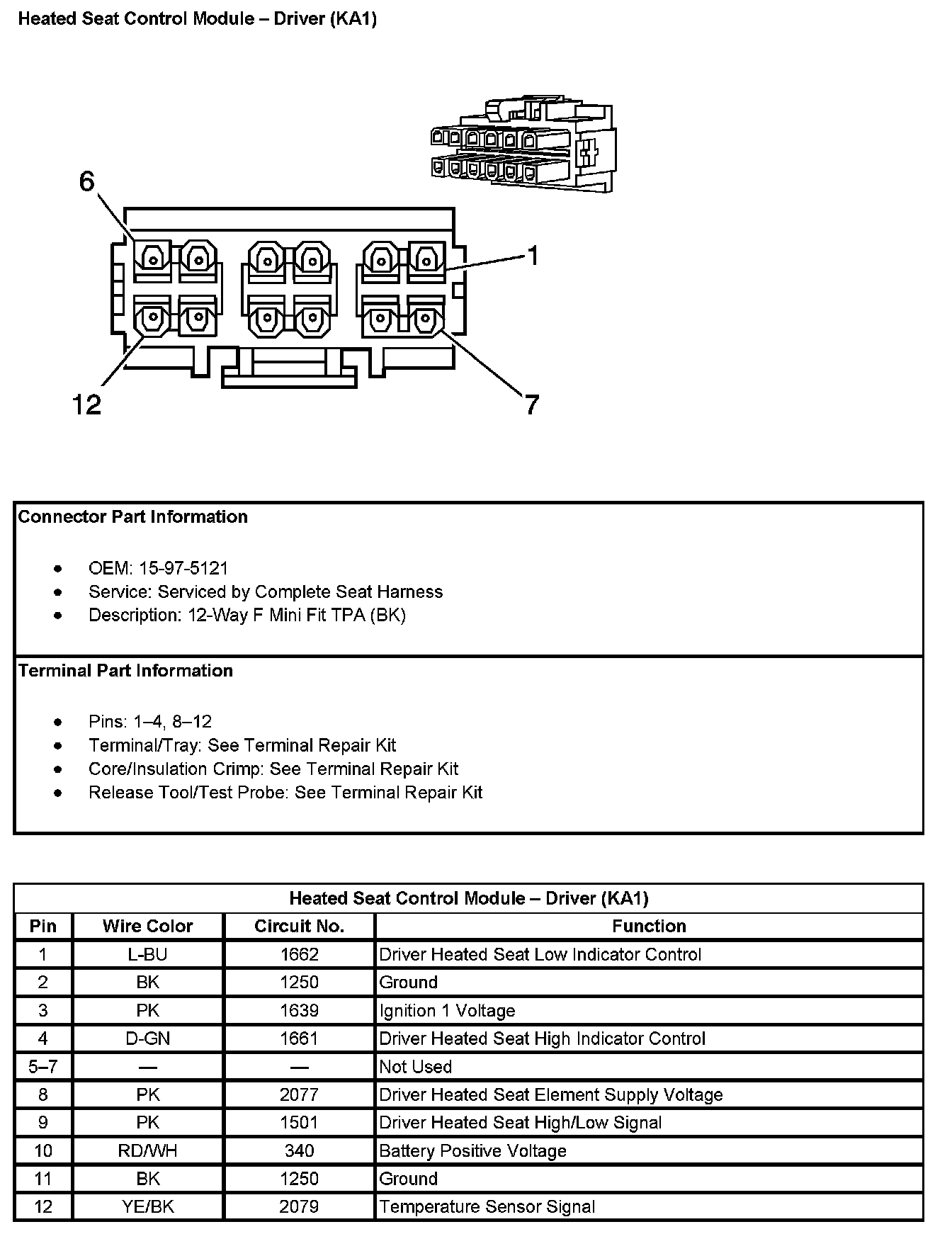

Heated Seat Control Module - Driver (With RPO Code KA1):

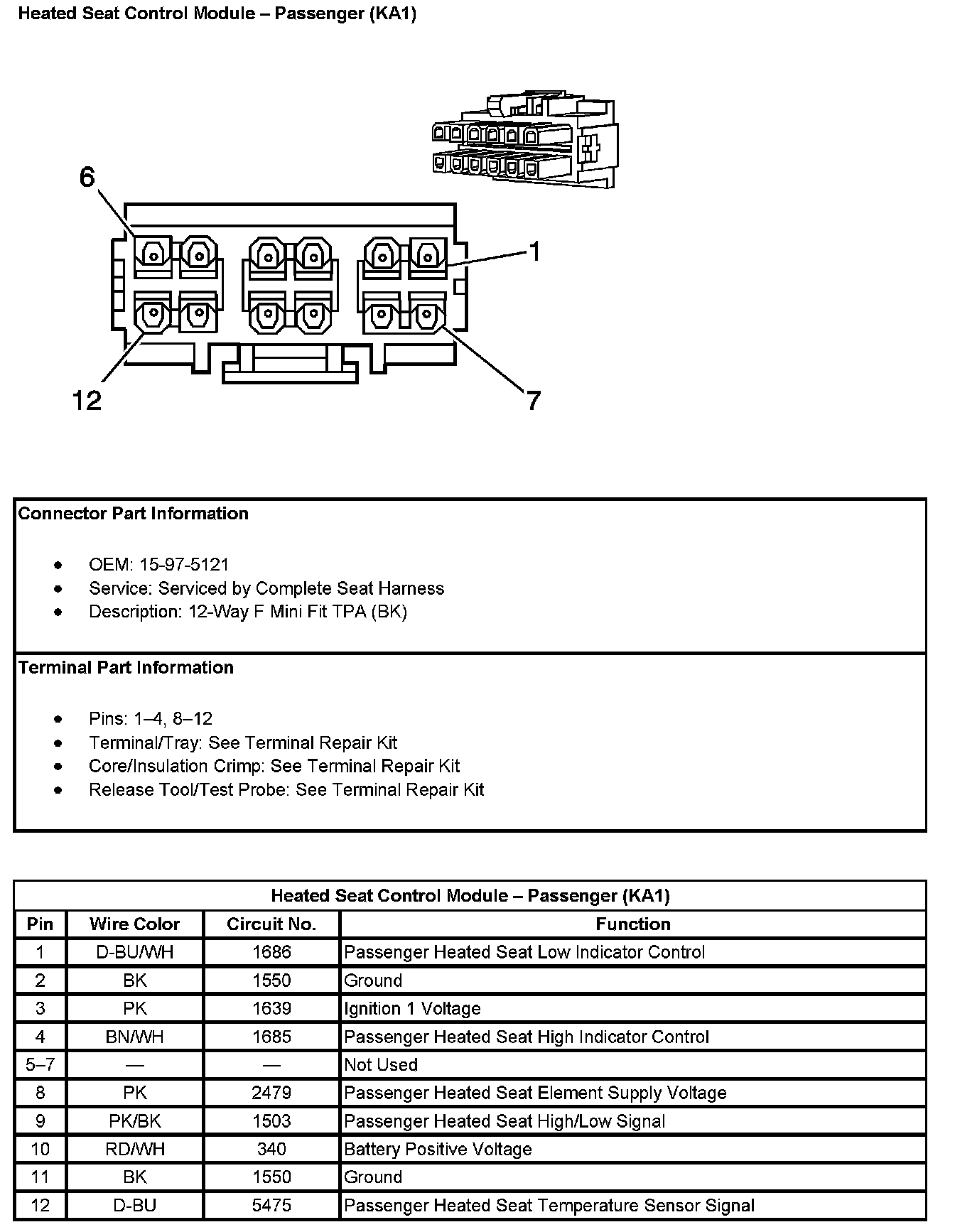

Heated Seat Control Module - Passenger (With RPO Code KA1):
