Power Window Switch
Power Window Switch

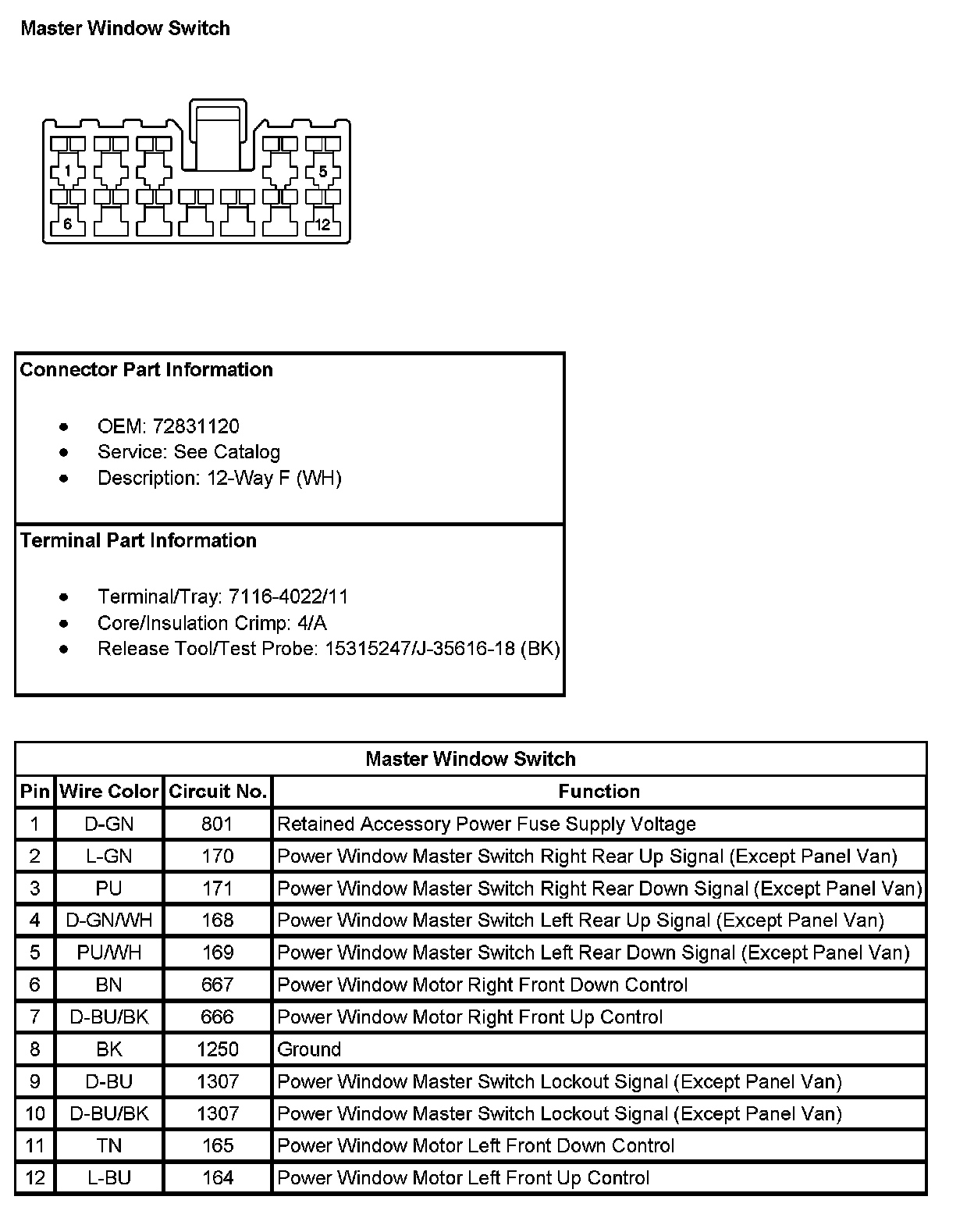

Master Window Switch:

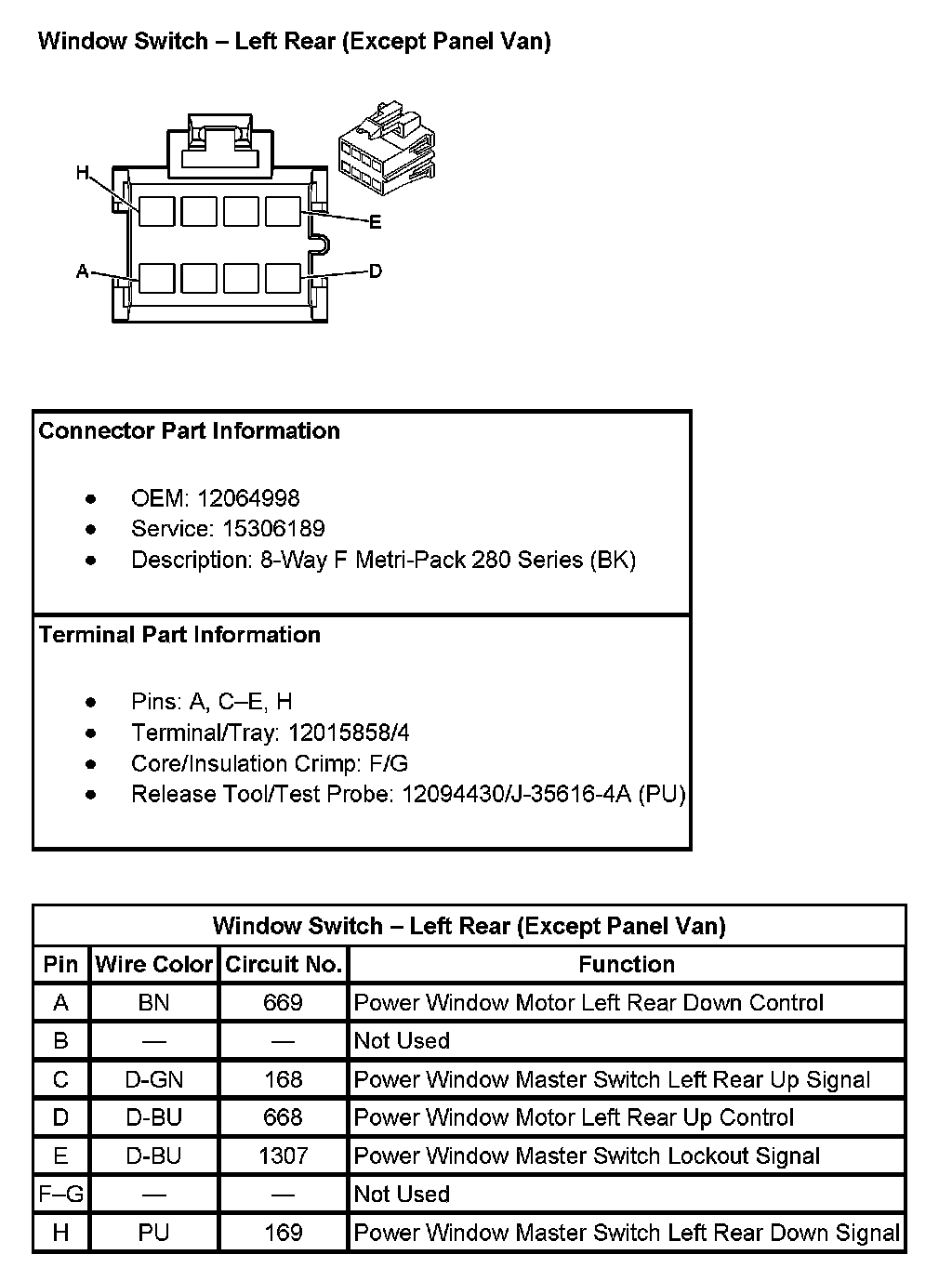

Window Switch - Left Rear (Except Panel Van):

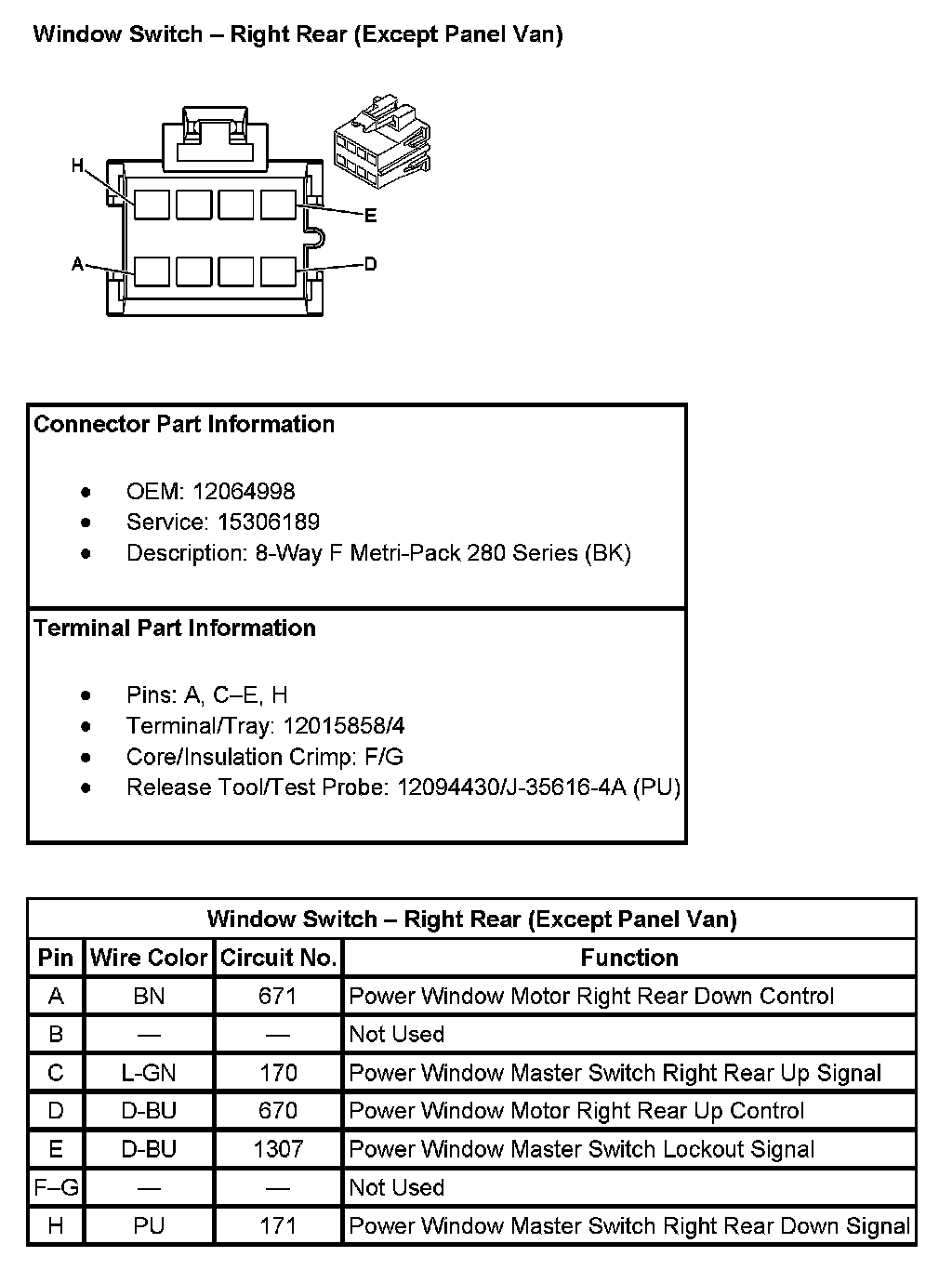

Window Switch - Right Rear (Except Panel Van):
