Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

Window Motor - Driver:

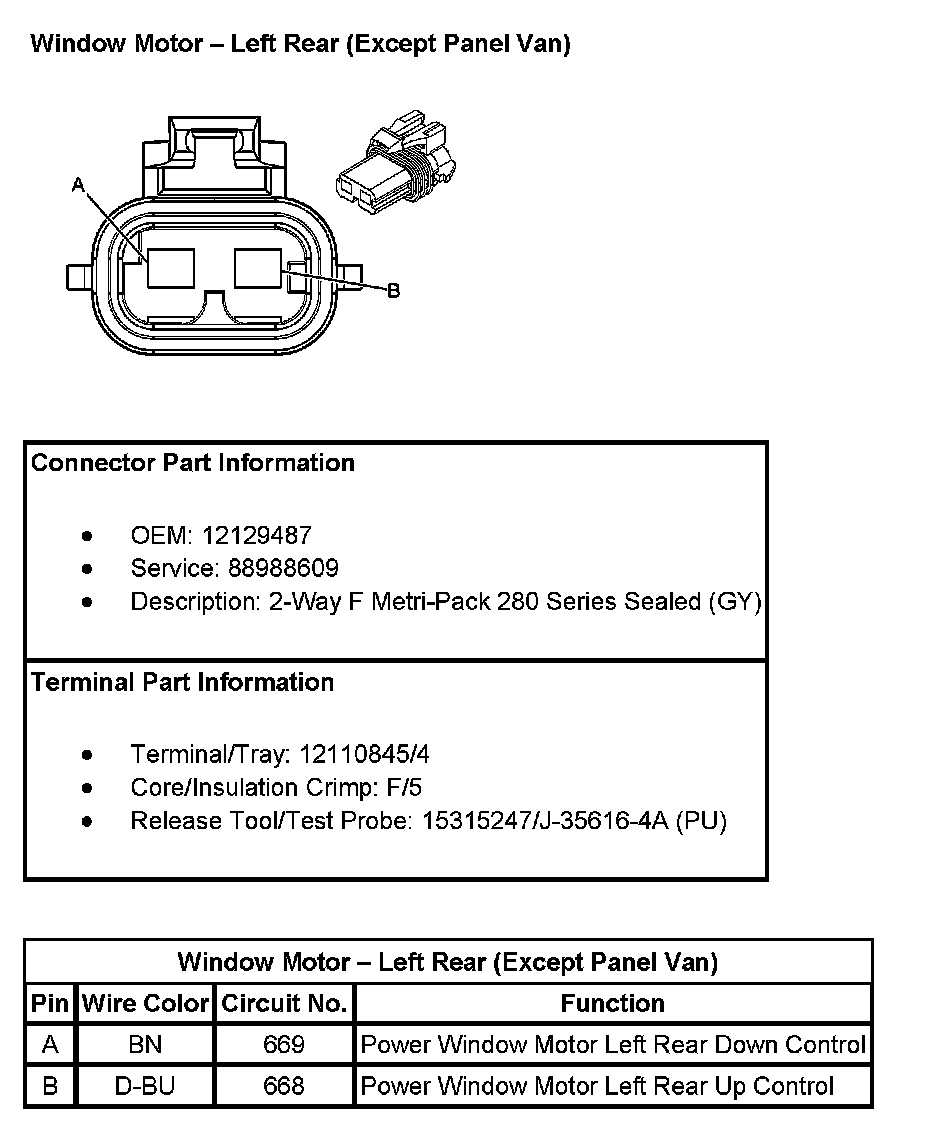

Window Motor - Left Rear (Except Panel Van):

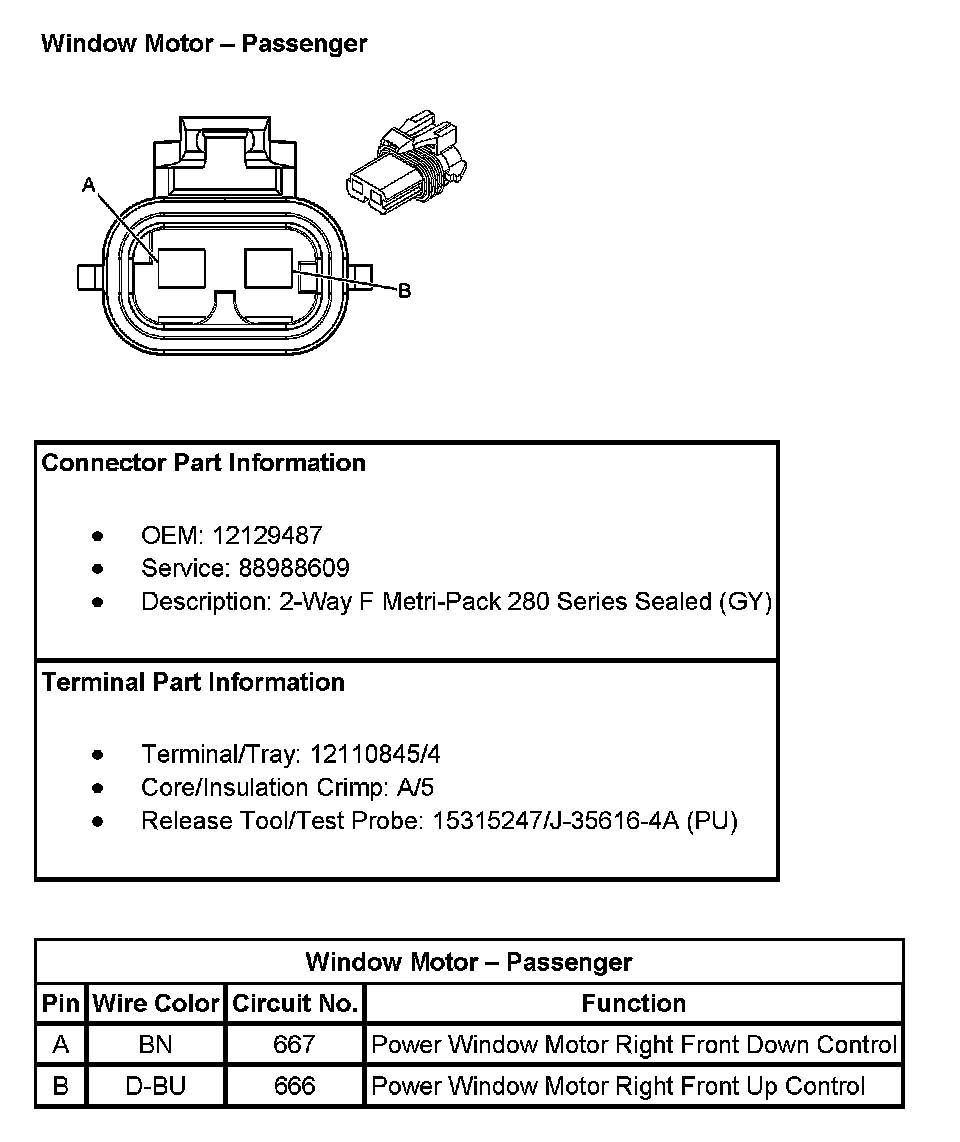

Window Motor - Passenger:

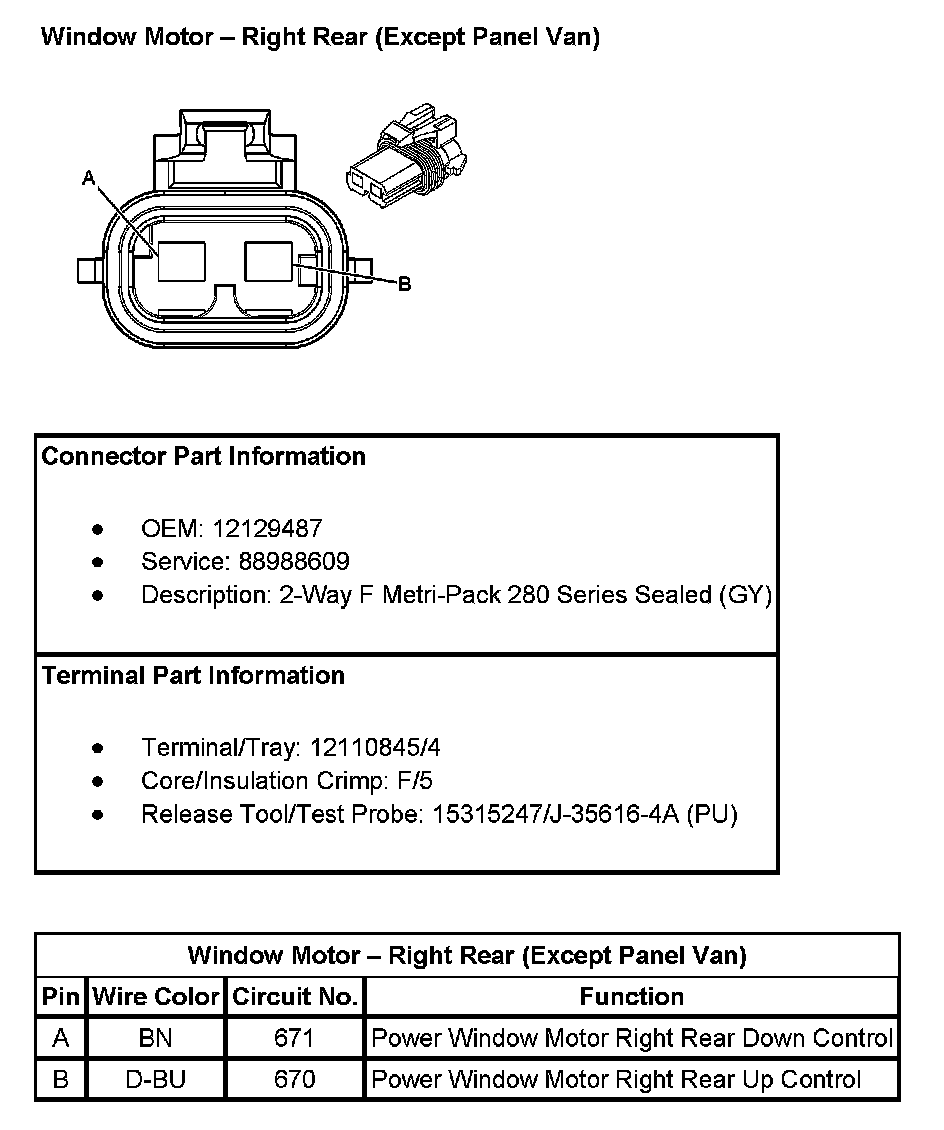

Window Motor - Right Rear (Except Panel Van):
