Outside Temperature Display Sensor
Outside Temperature Display Sensor
Displays and Gages Connector End Views

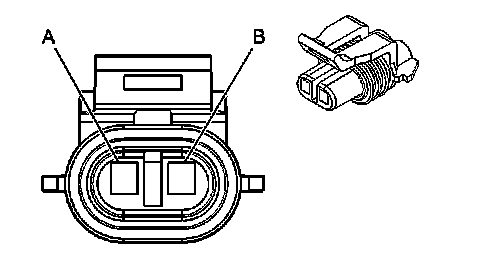

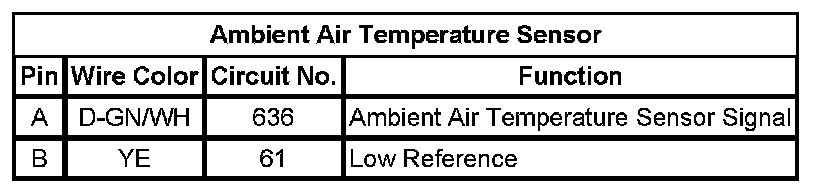

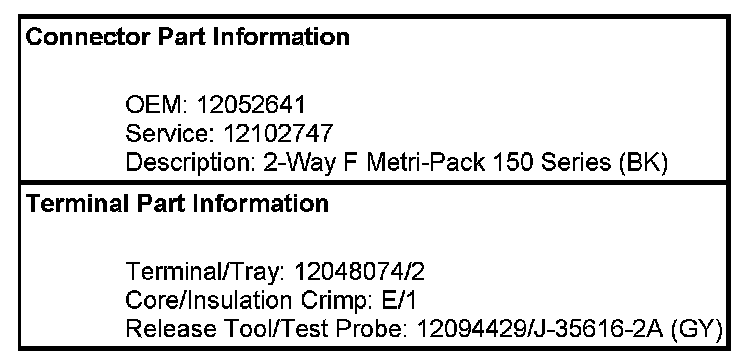

Ambient Air Temperature Sensor
