Impact Sensor



SIR Connector End Views

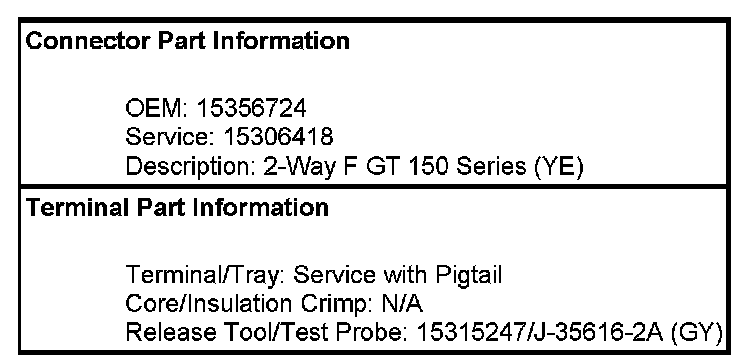

Inflatable Restraint Front End Sensor

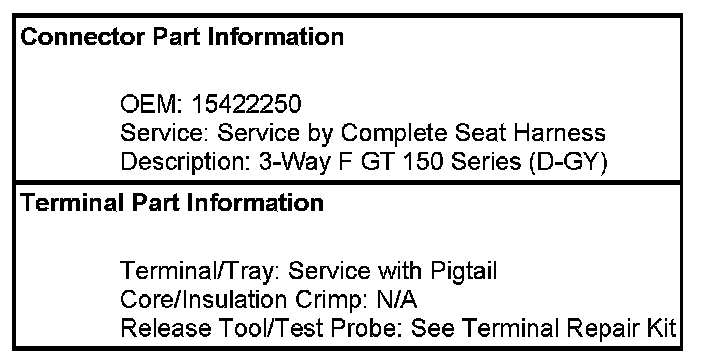

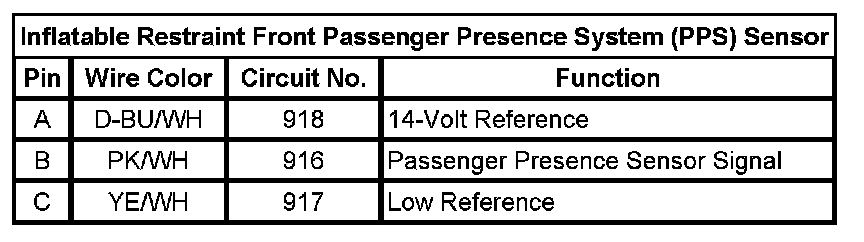

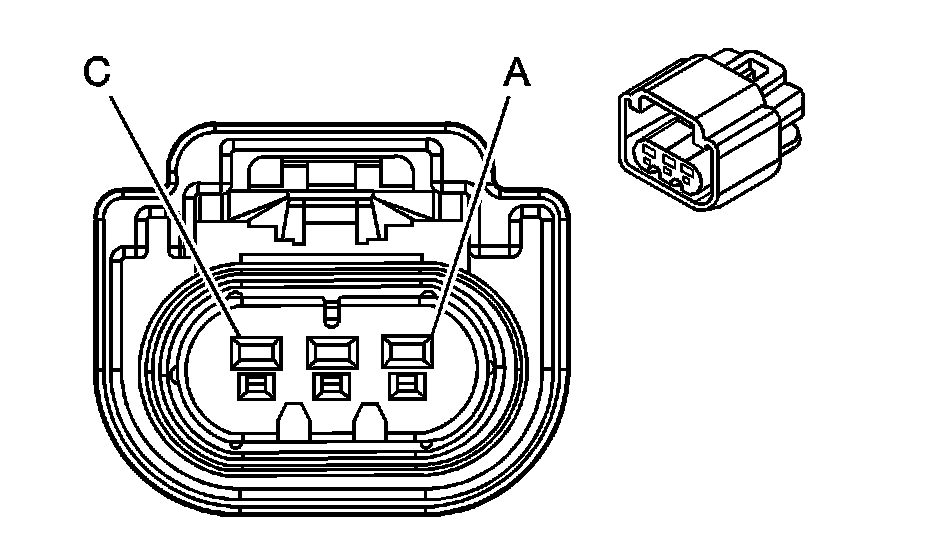

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

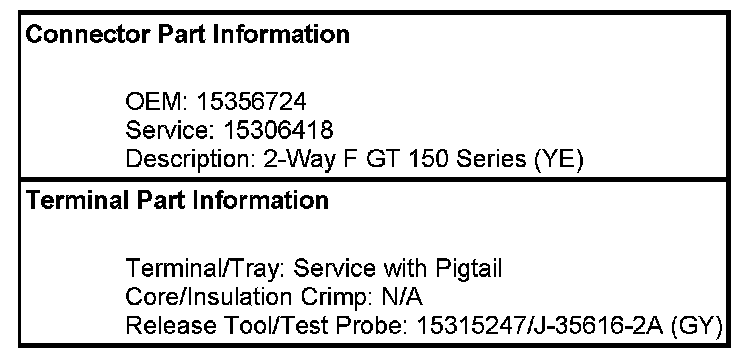

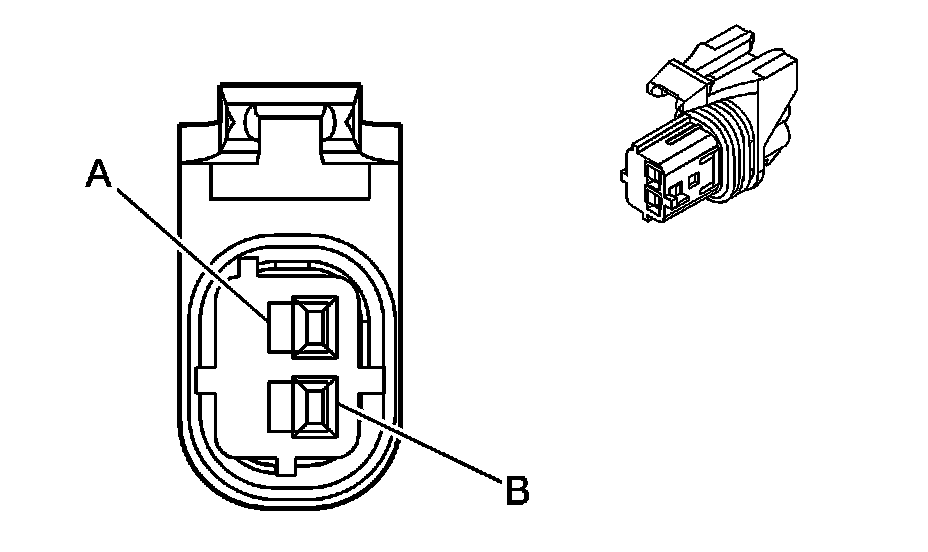

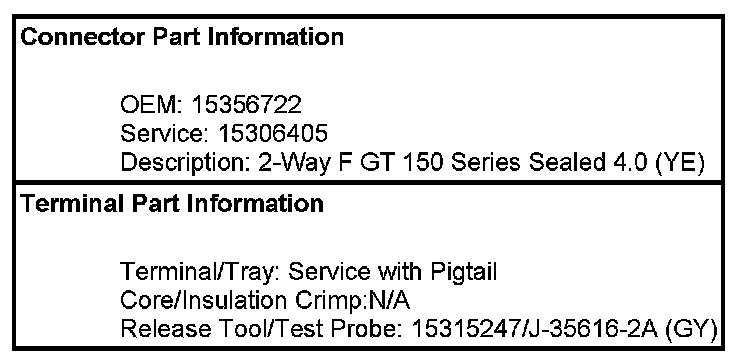

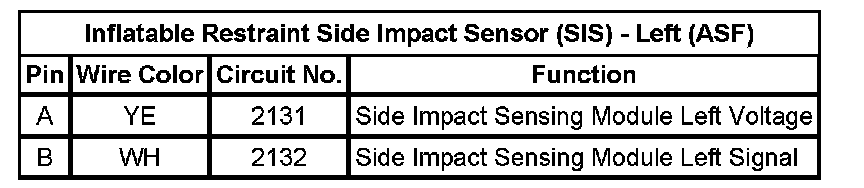

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

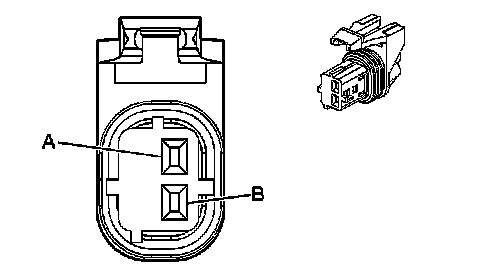

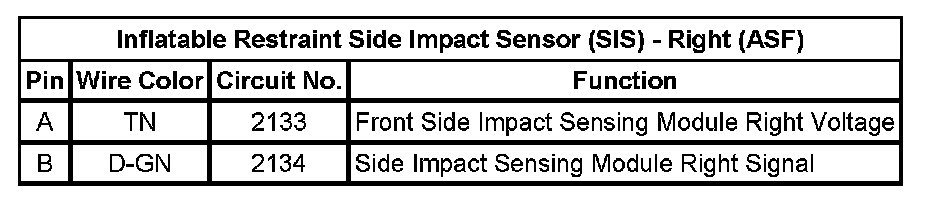

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
