Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

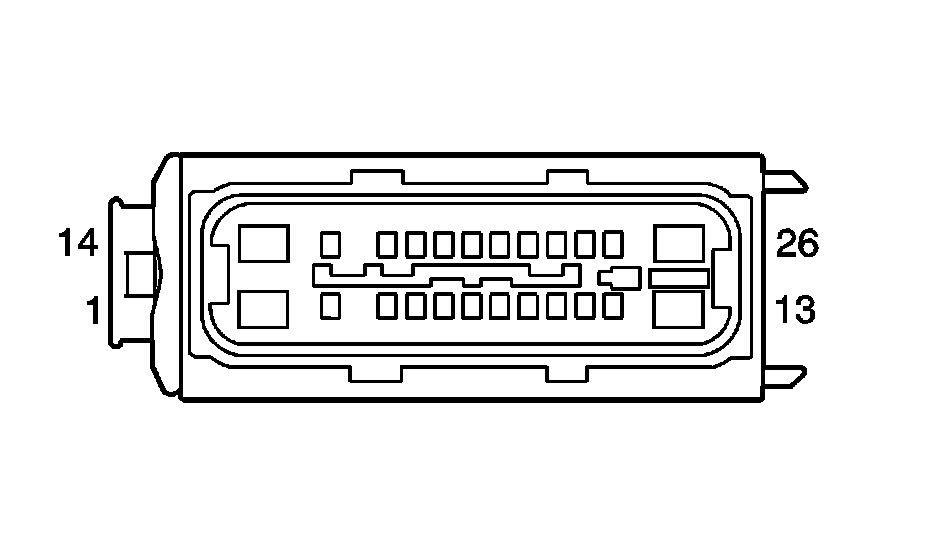

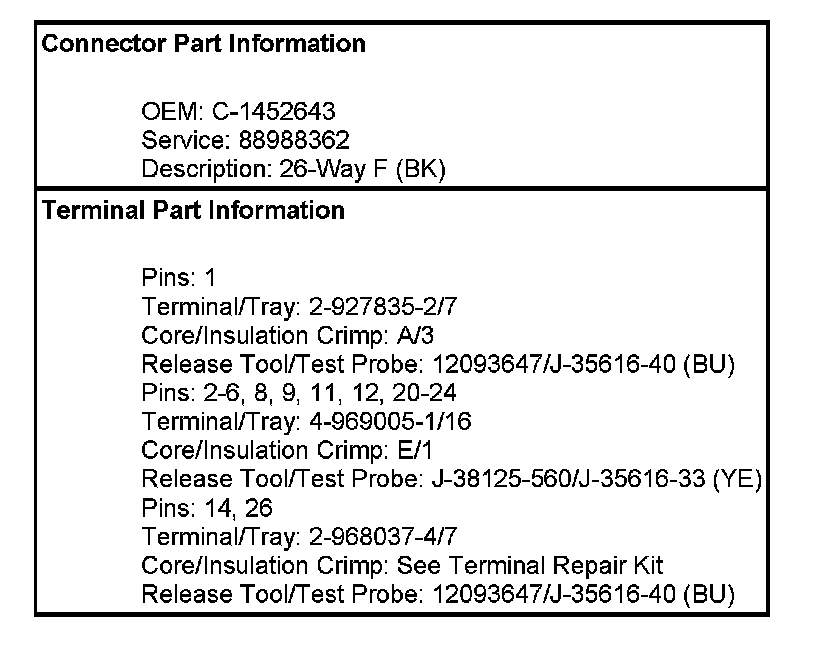

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM):
