Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

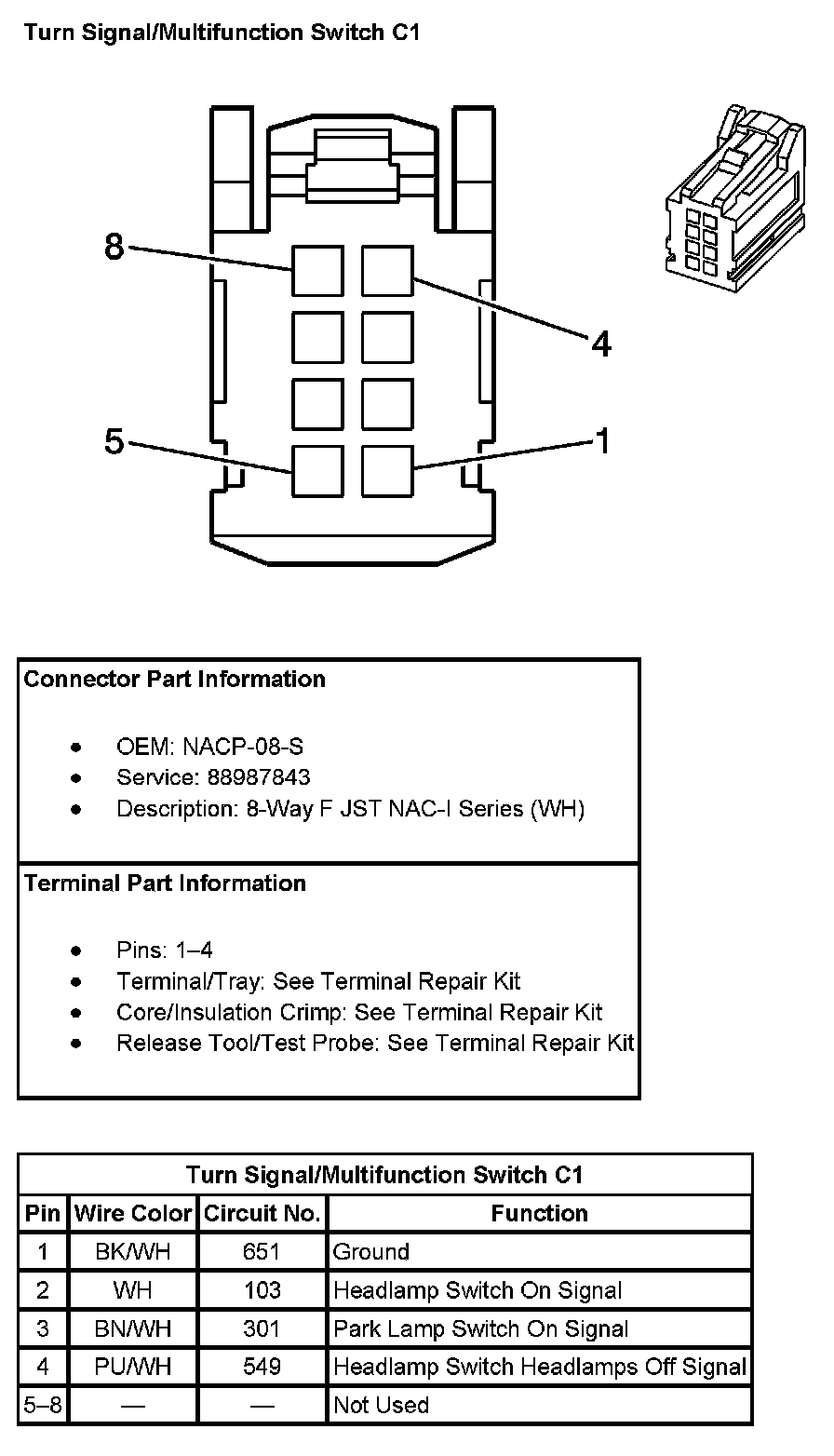

Turn Signal/Multifunction Switch C1:

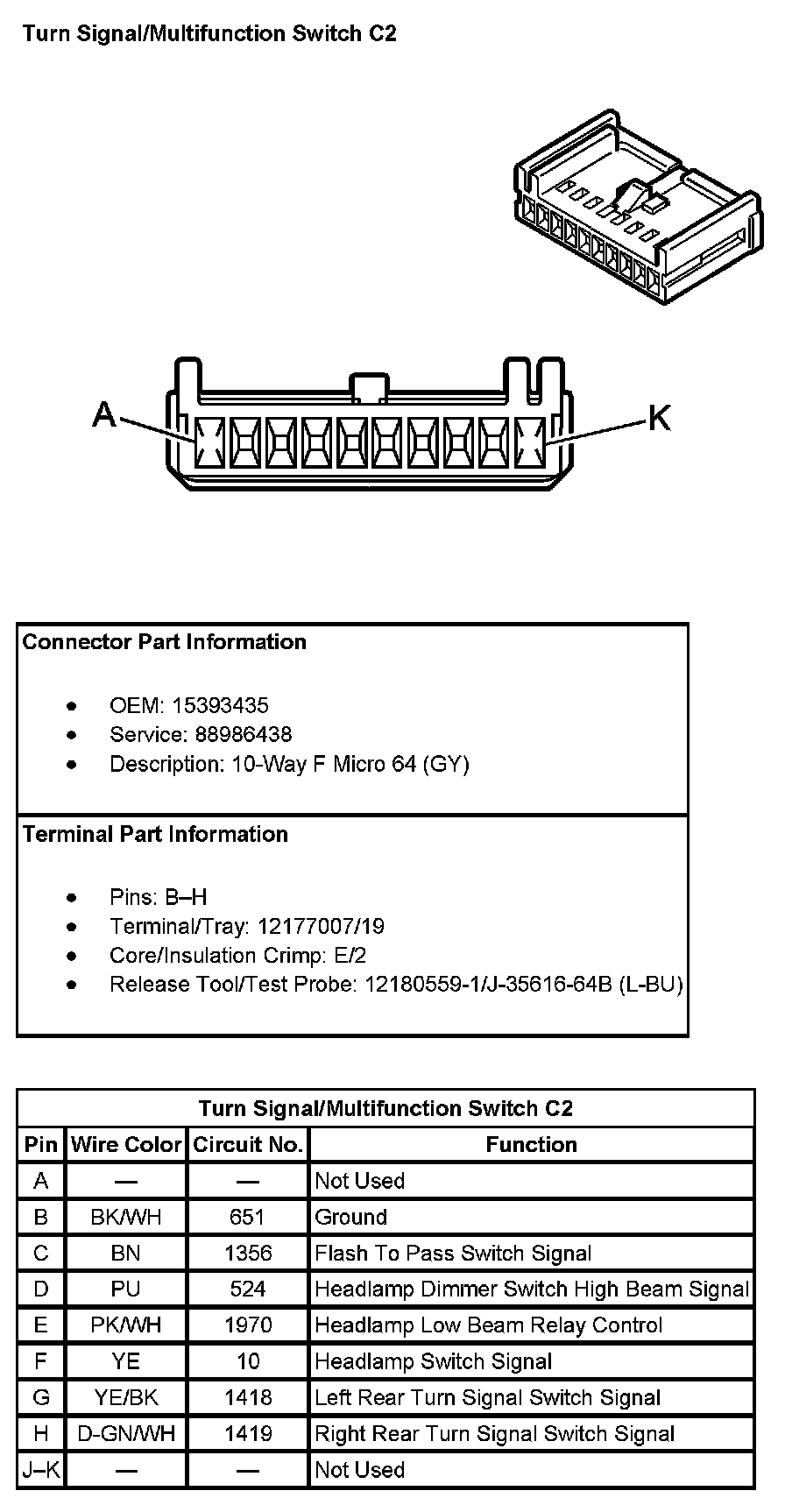

Turn Signal/Multifunction Switch C2:
