Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module

Central Control Module



Entertainment/Communication Connector End Views

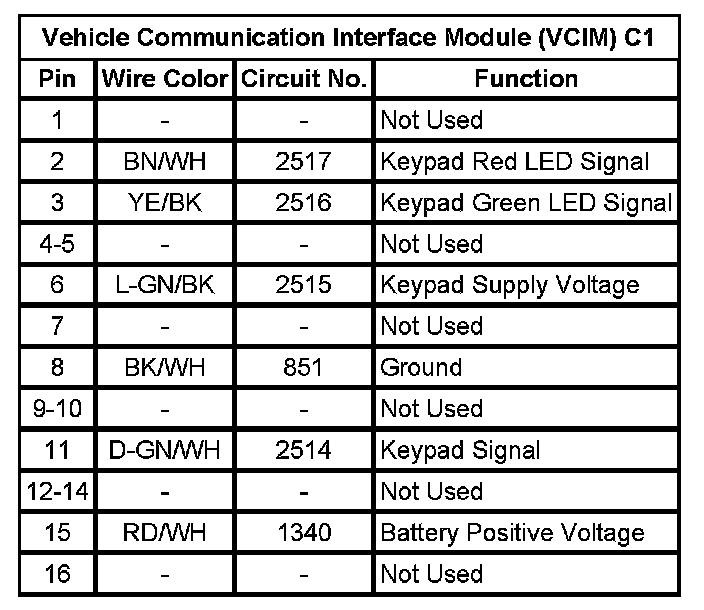

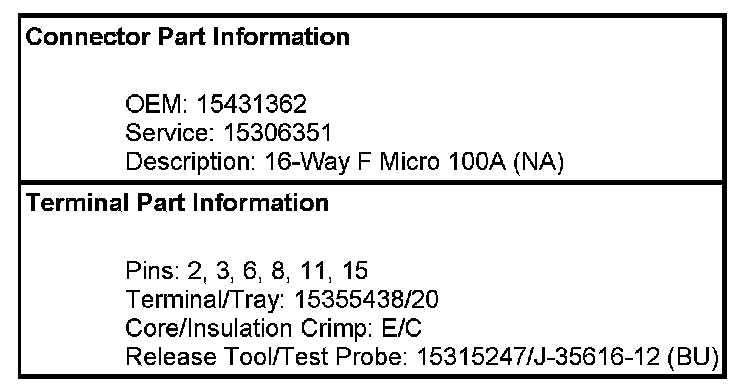

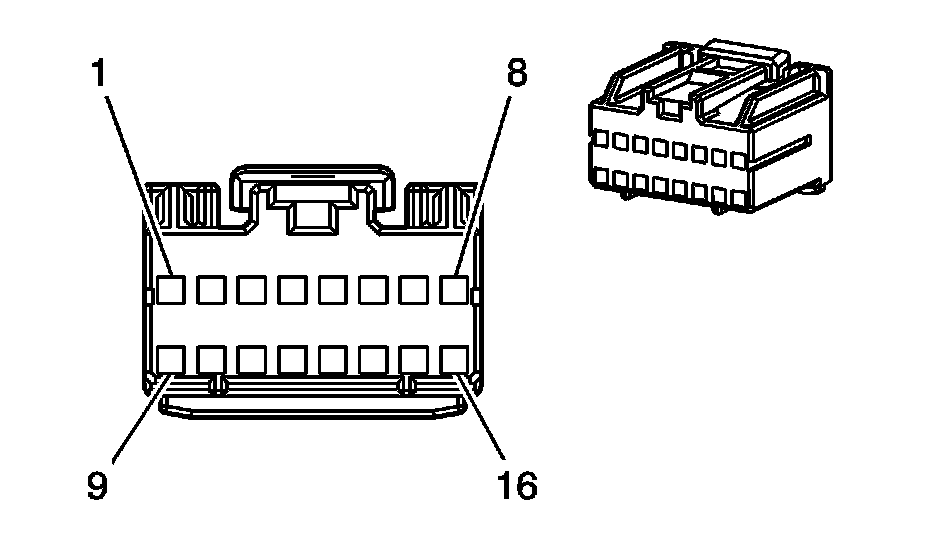

Vehicle Communication Interface Module (VCIM) C1

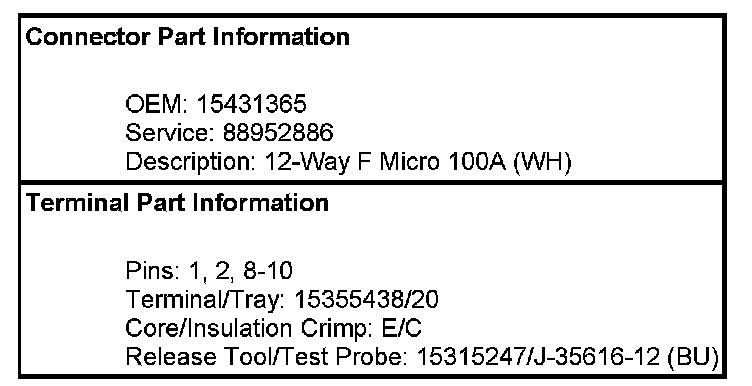

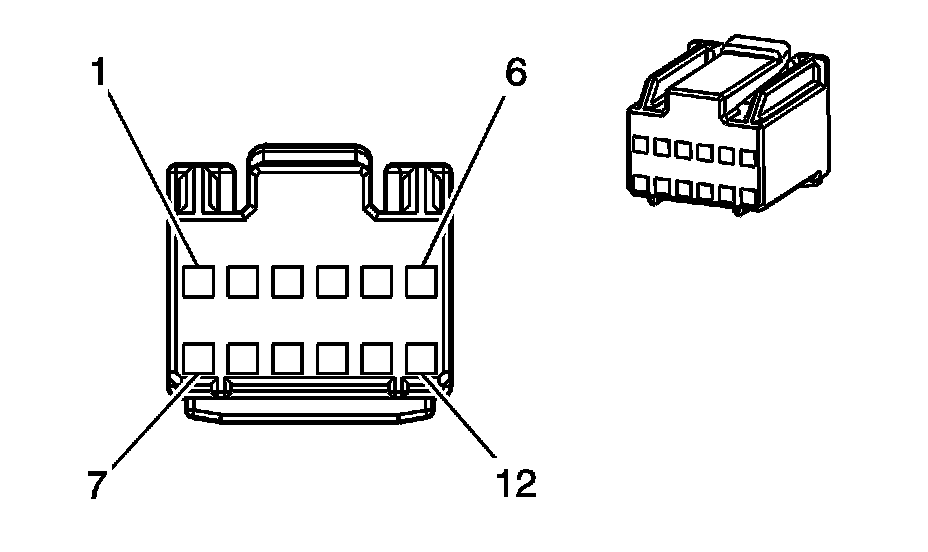

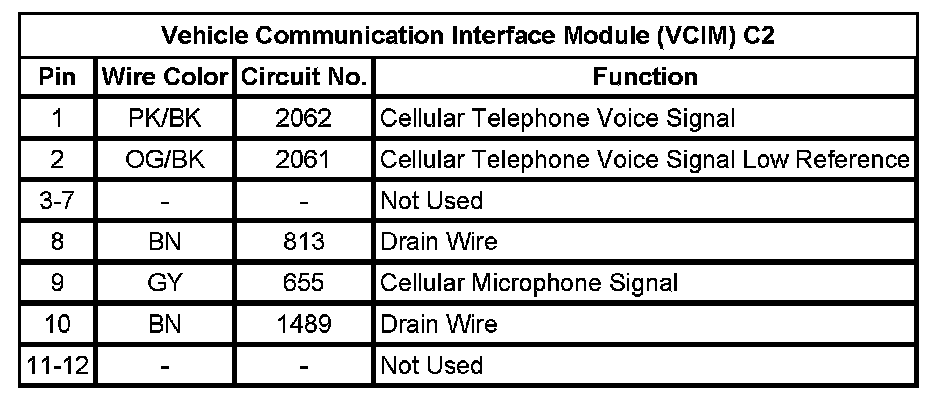

Vehicle Communication Interface Module (VCIM) C2

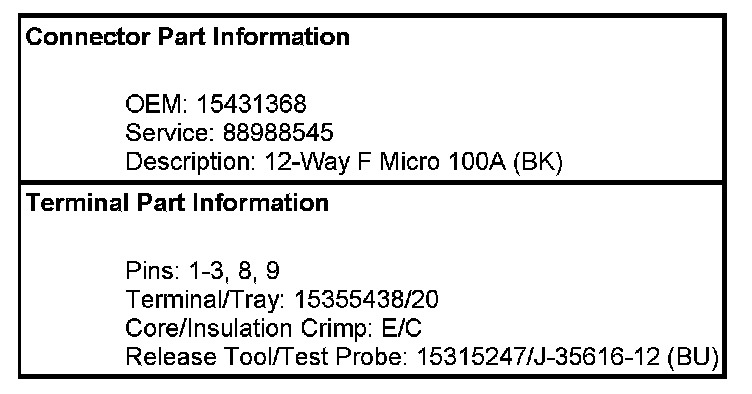

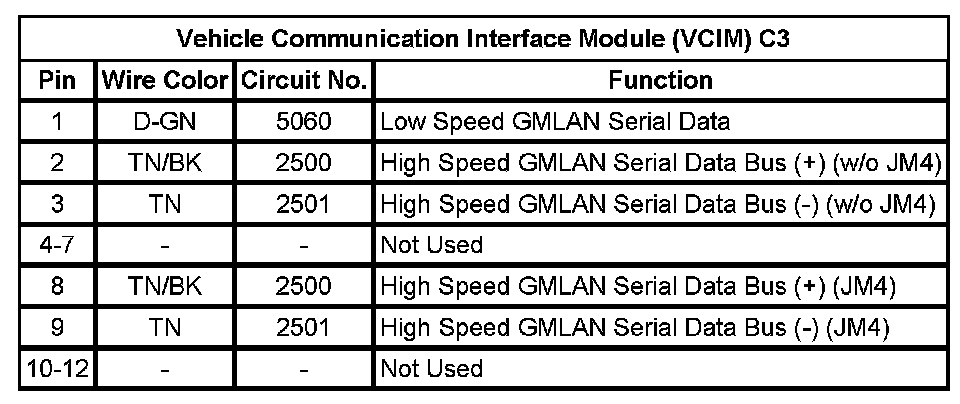

Vehicle Communication Interface Module (VCIM) C3
