Brake Light Switch
Brake Light Switch

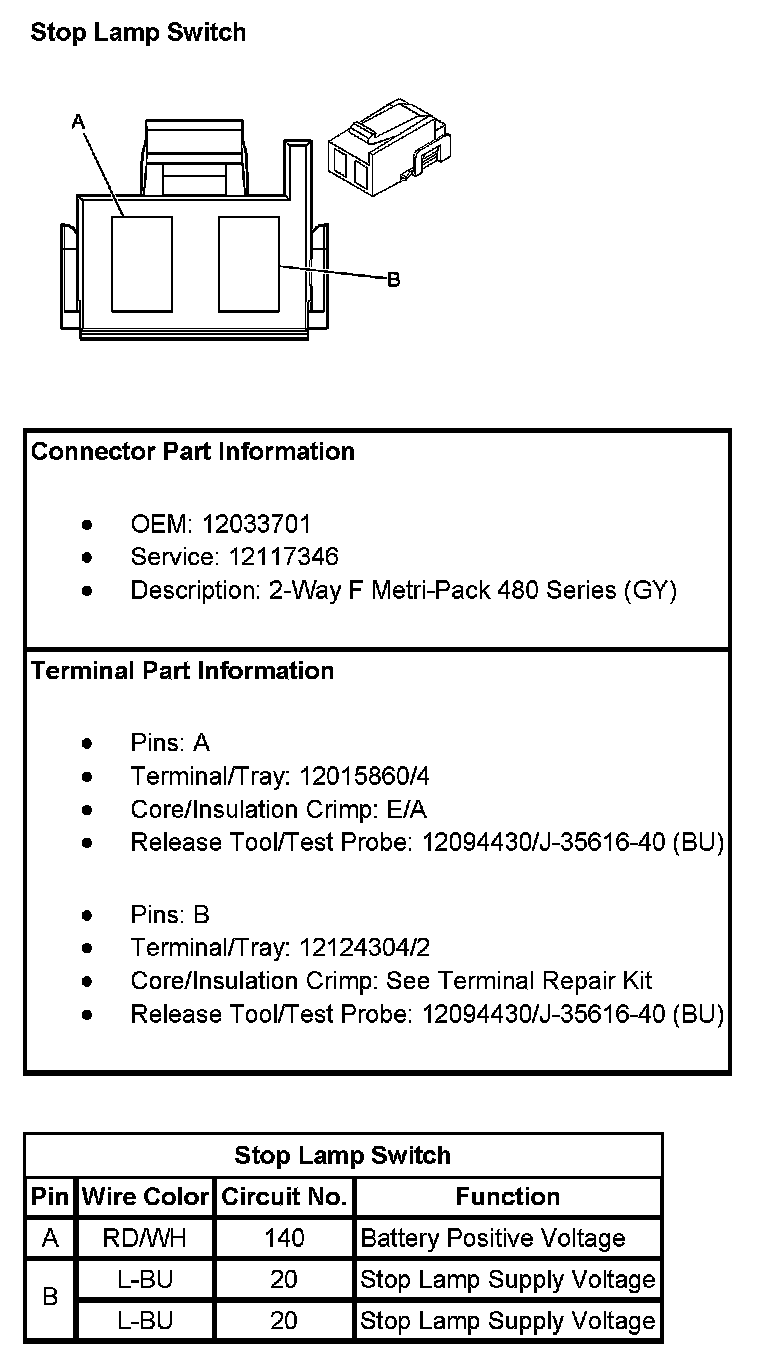

Stop Lamp Switch:

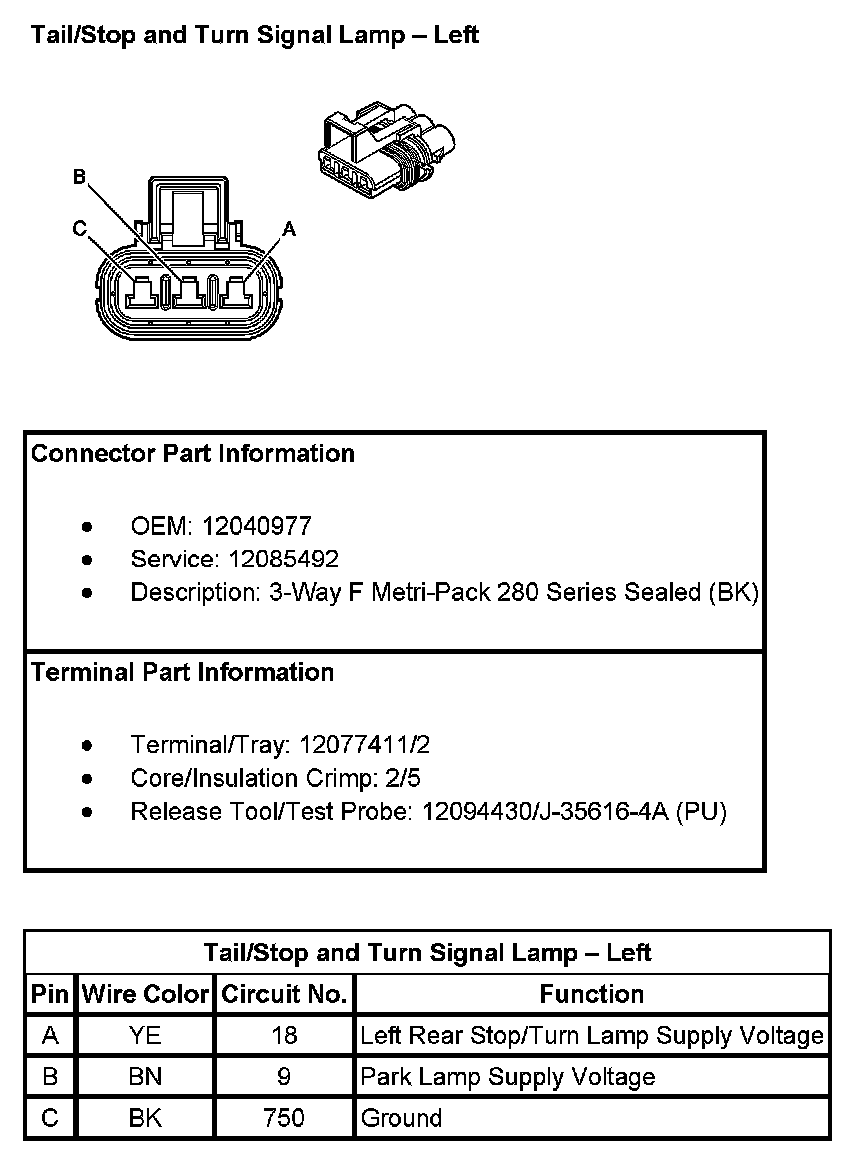

Tail/Stop And Turn Signal Lamp - Left:

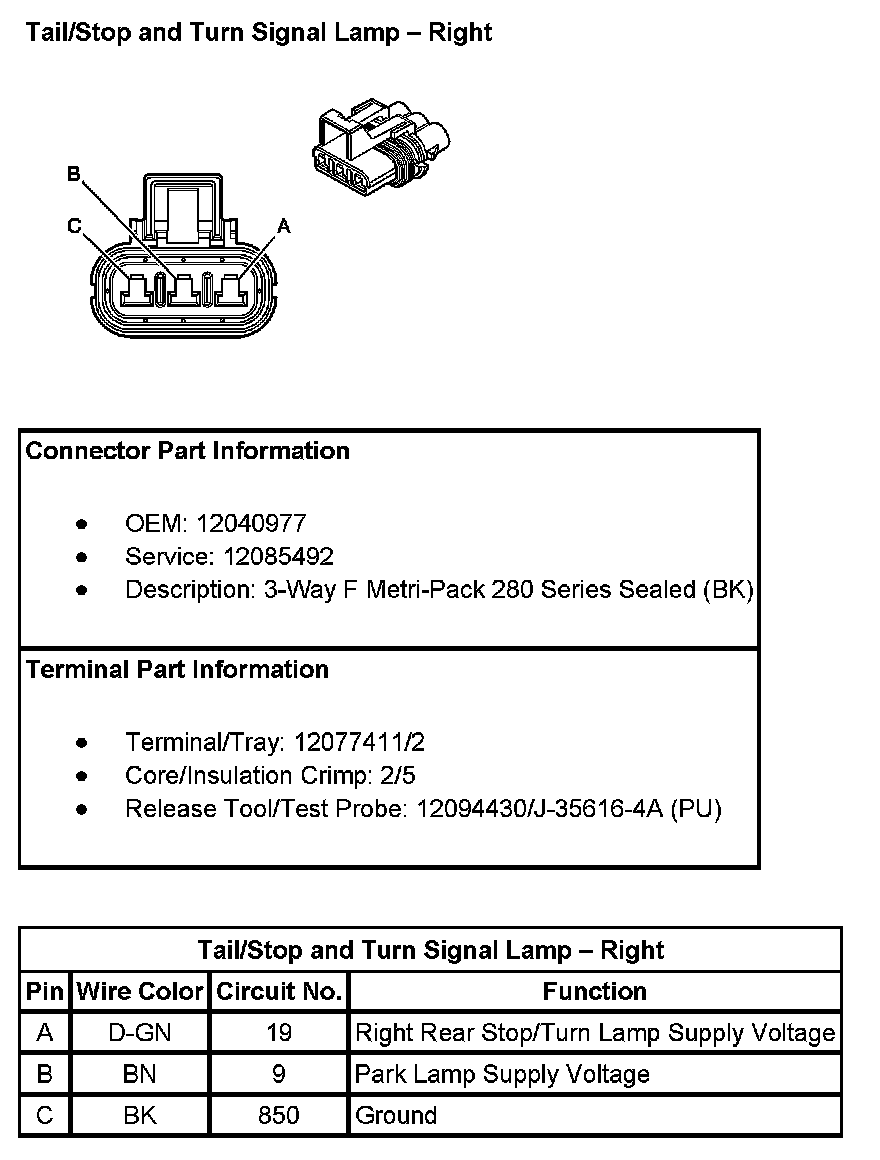

Tail/Stop And Turn Signal Lamp - Right:
