Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch

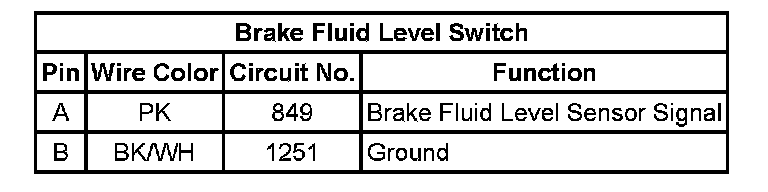

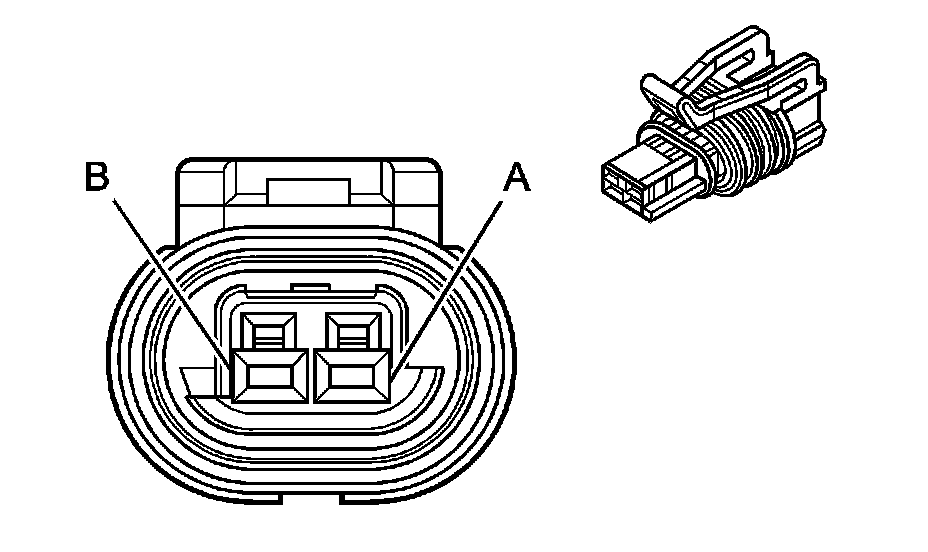

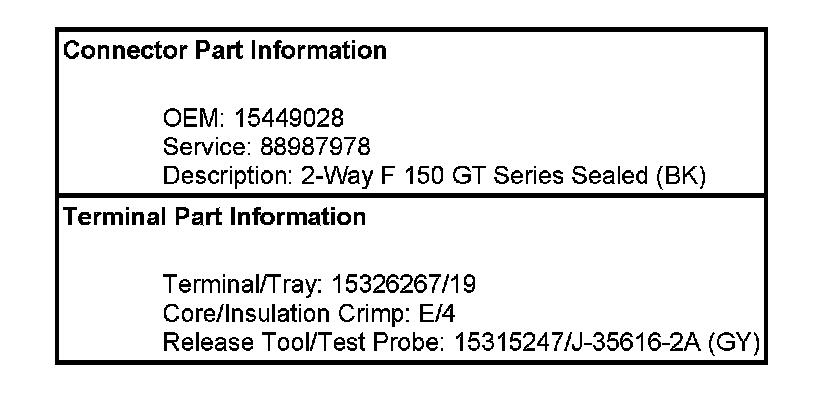

Brake Fluid Level Switch







Brake Fluid Level Switch:
