Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Components

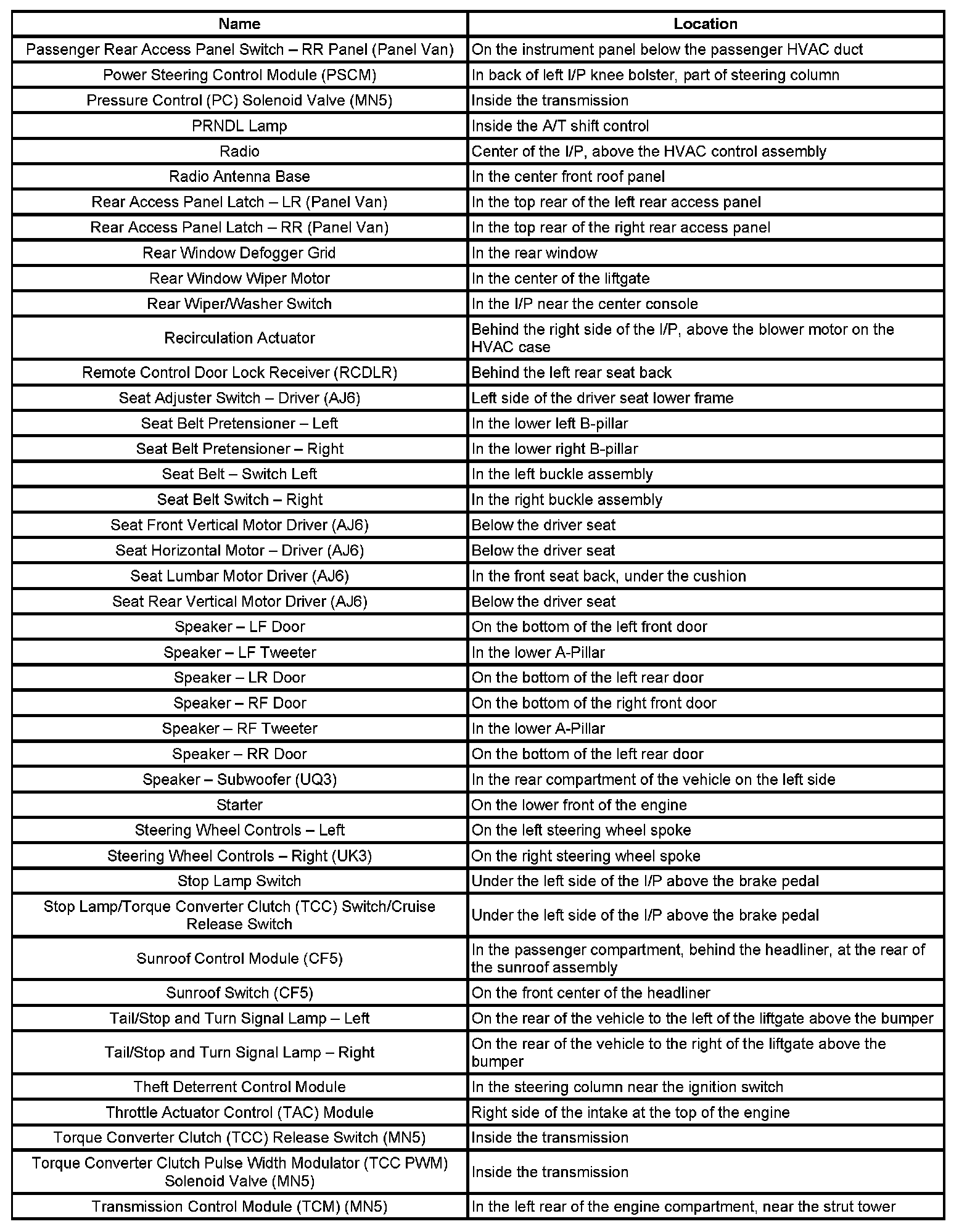

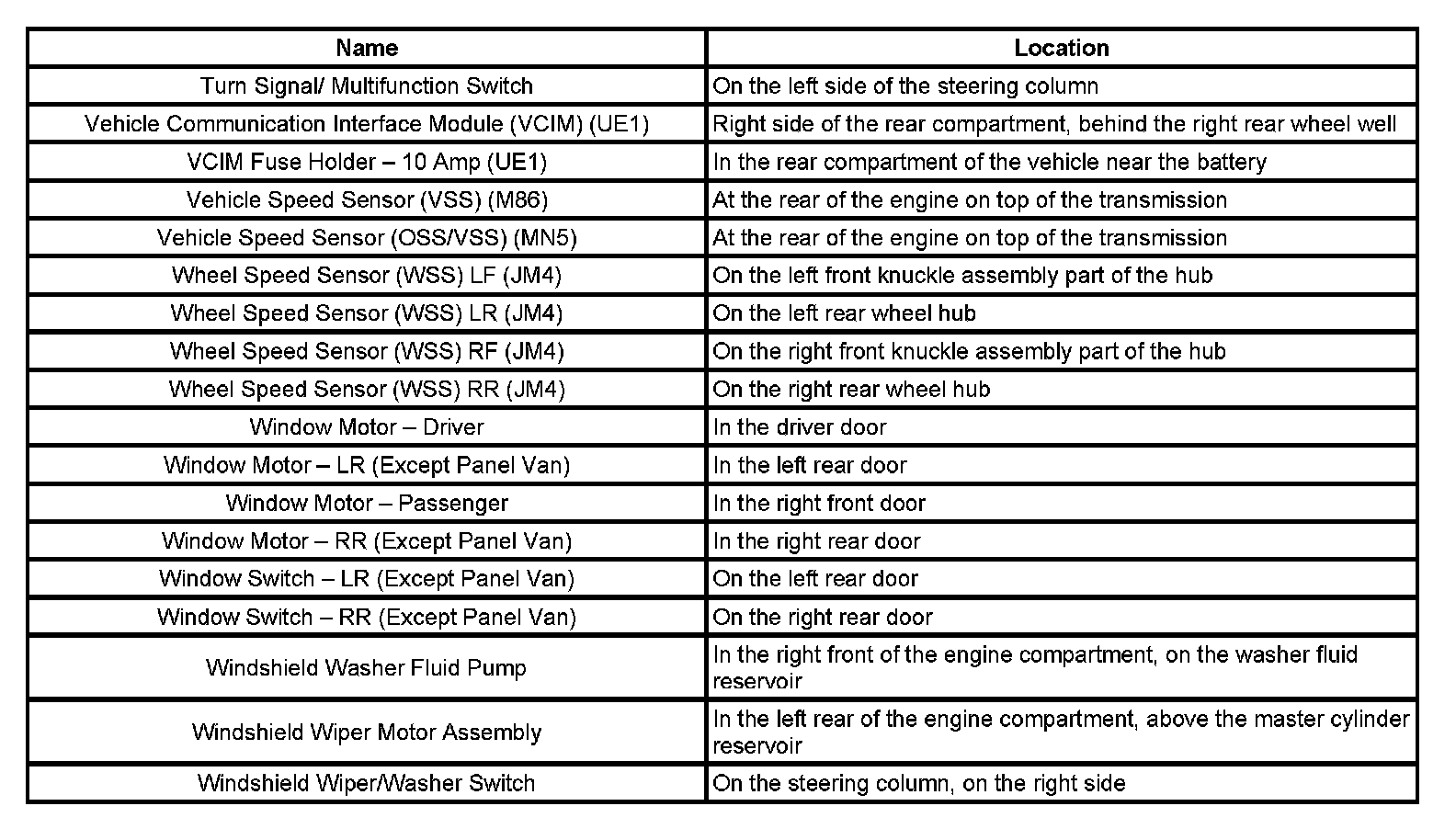

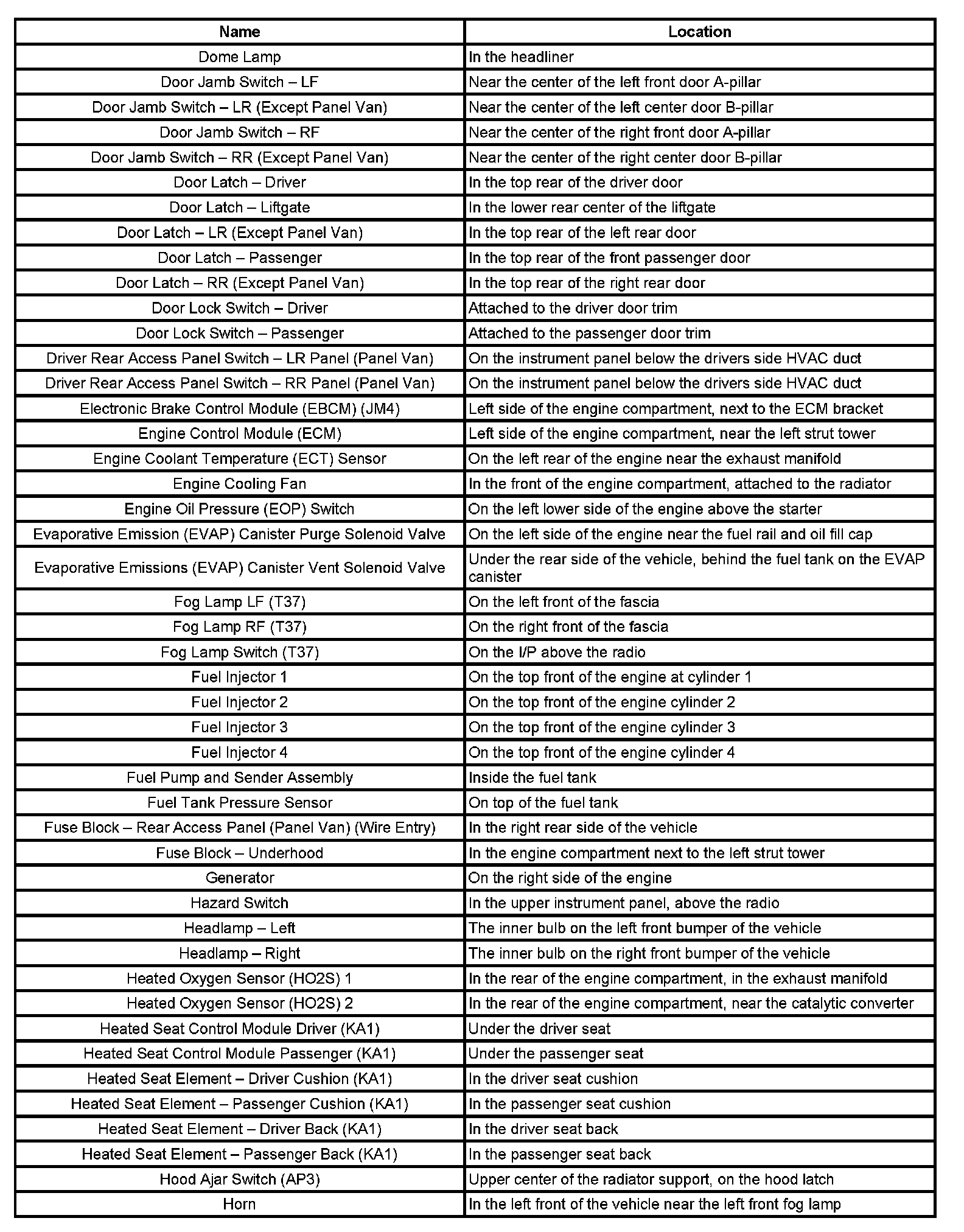

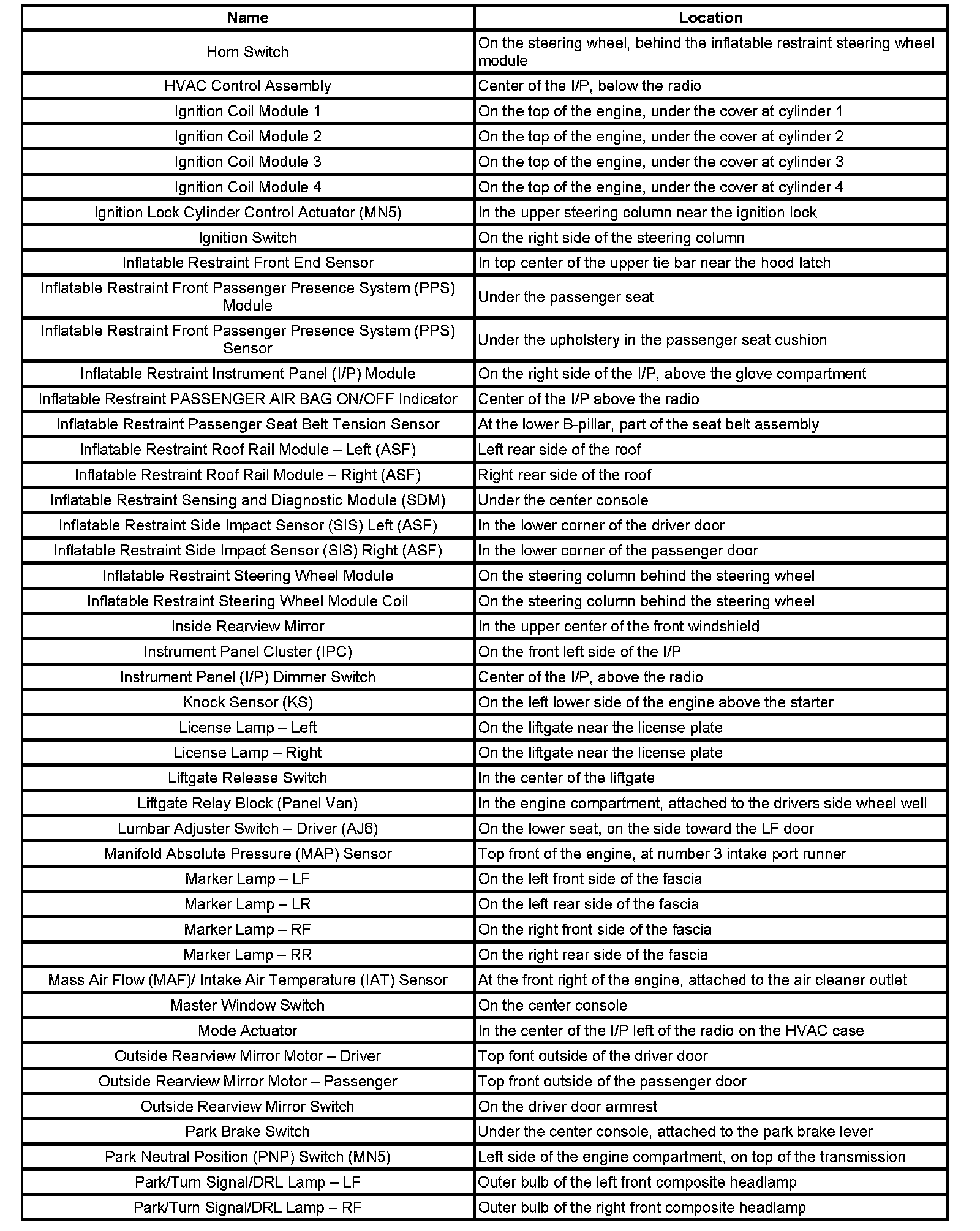

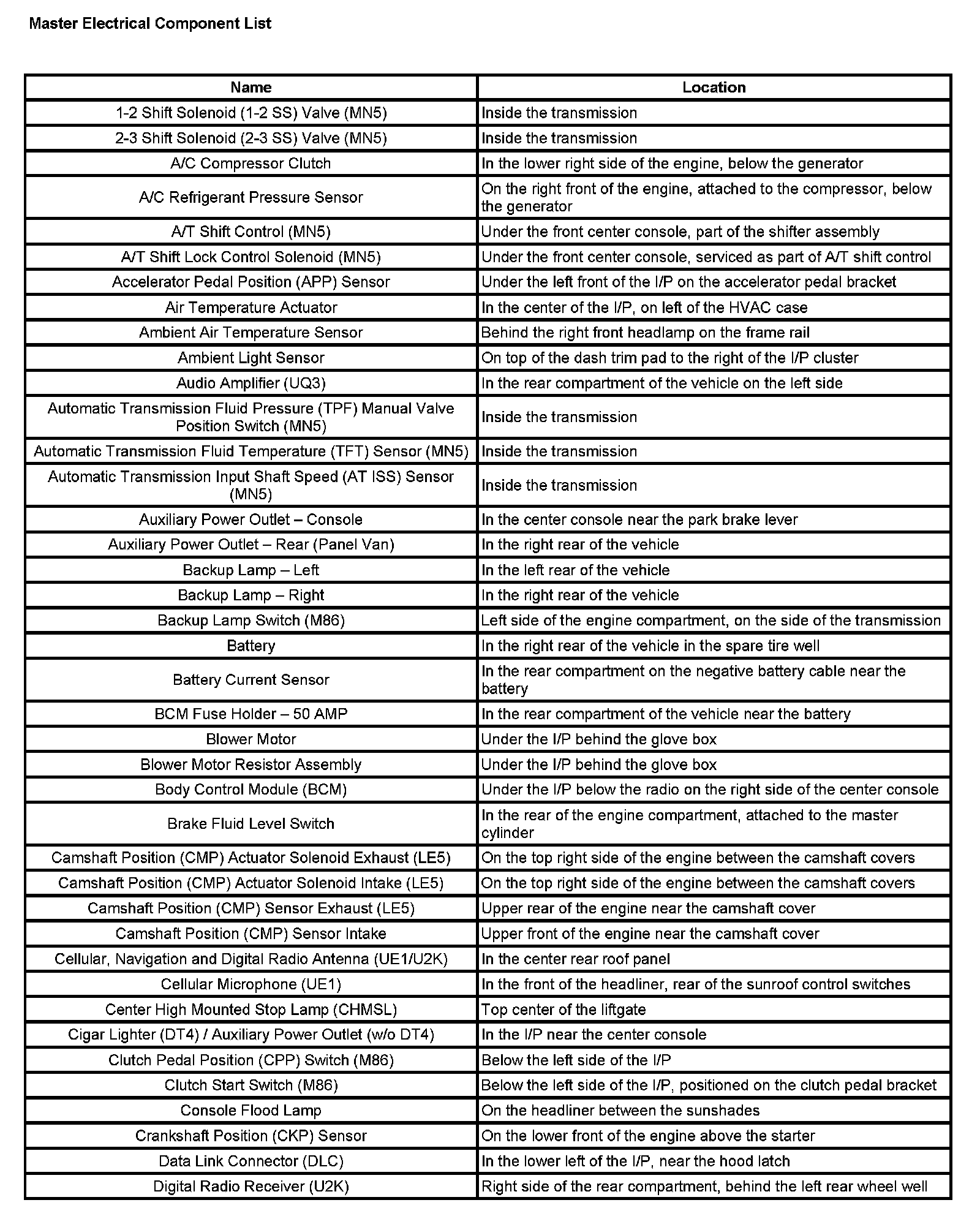

Components



1-2 Sh - Di:




Do - Ho:




Ho - Pa:




Pa - Tr:




Tu - Wi:
