Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Connector Views

Connector Views

Cruise Control Connector End Views

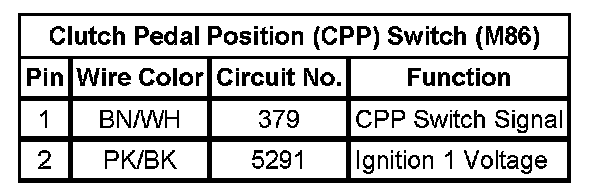

Clutch Pedal Position (CPP) Switch (M86)

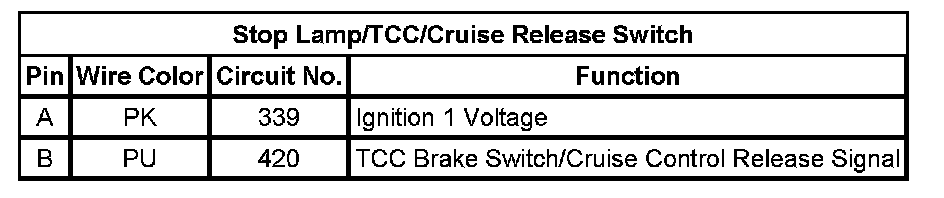

Stop Lamp/TCC/Cruise Release Switch

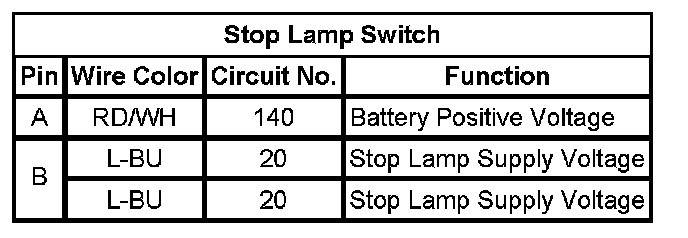

Stop Lamp Switch
