Home >> Chevrolet >> 2007 >> Express 2500 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Components

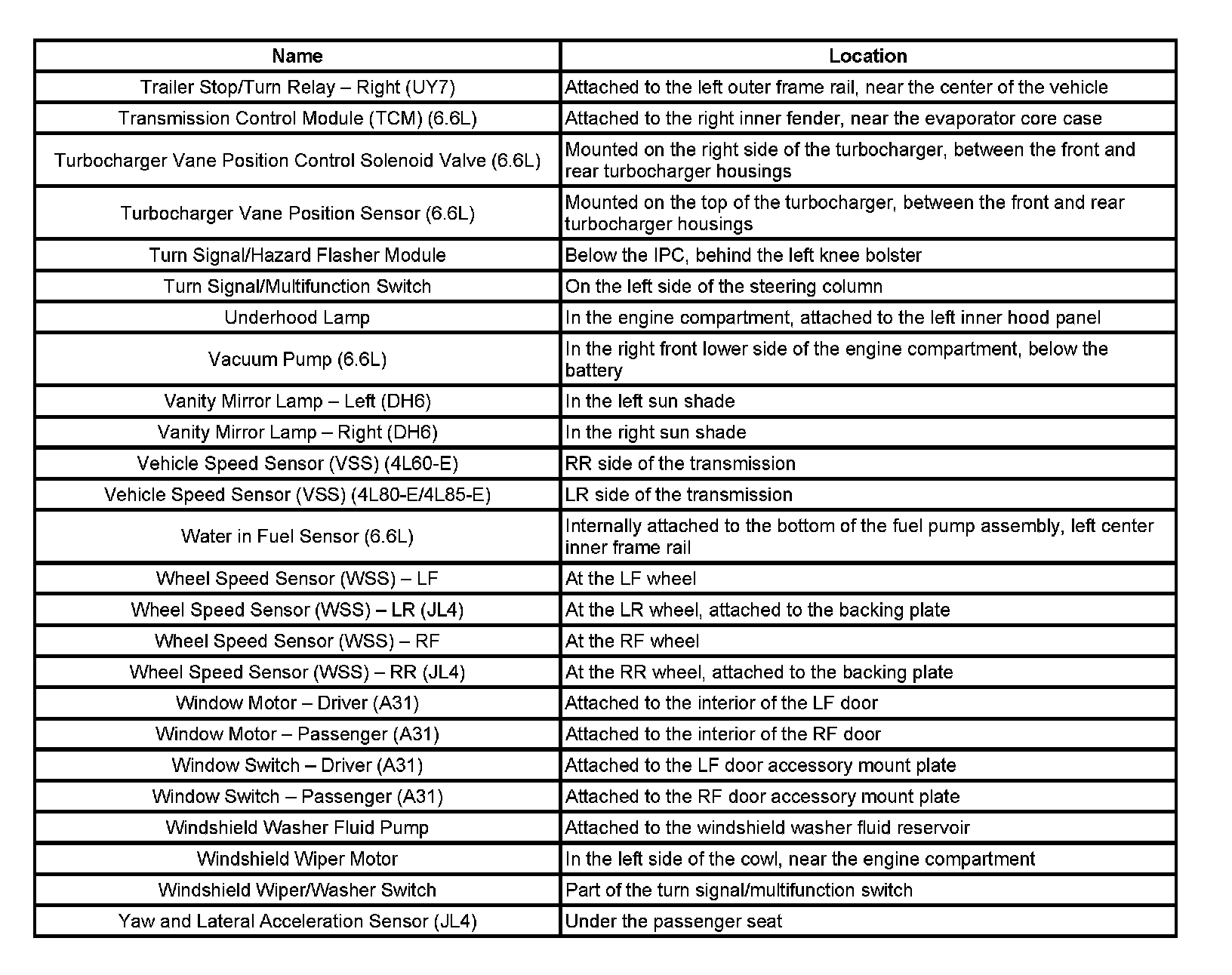

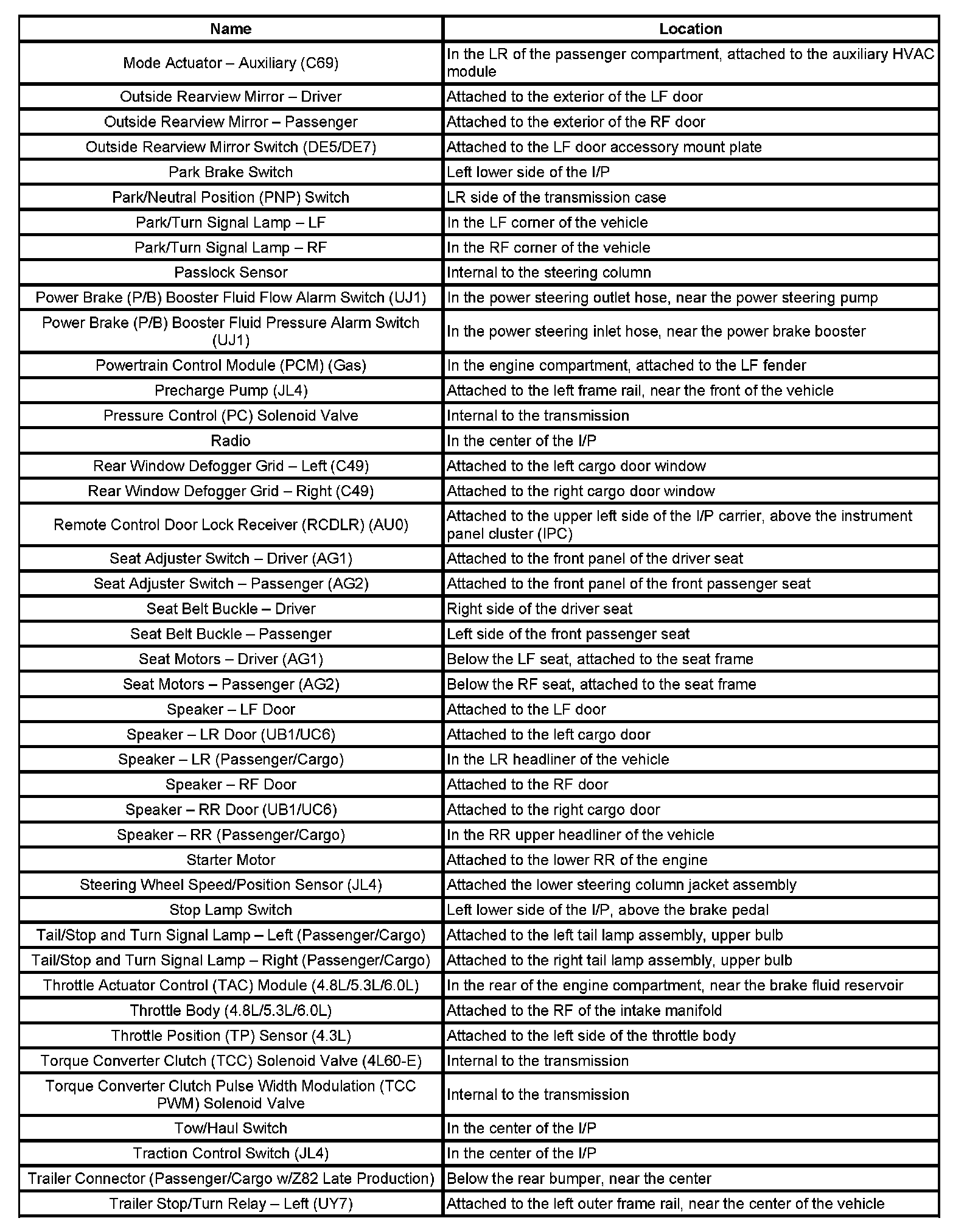

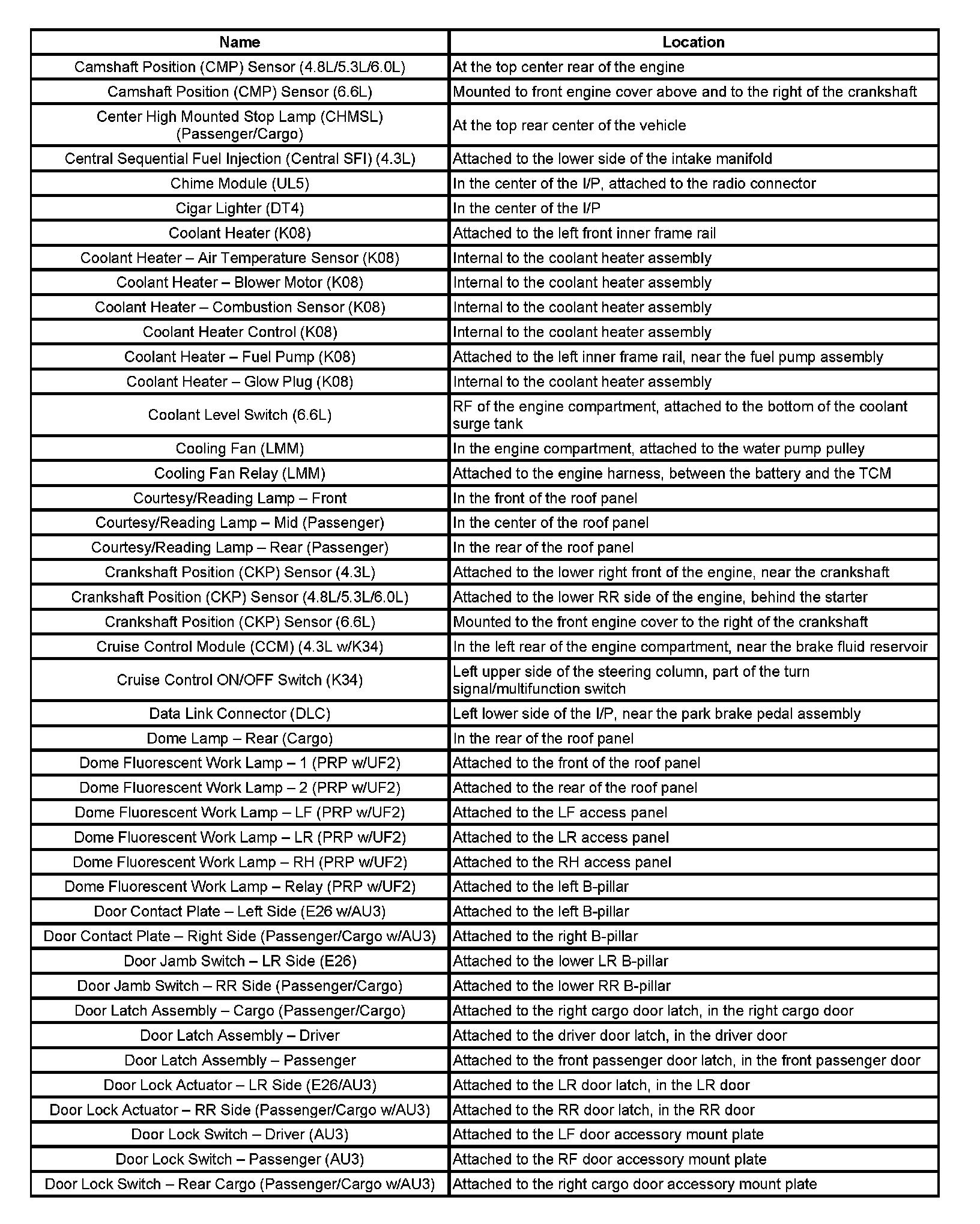

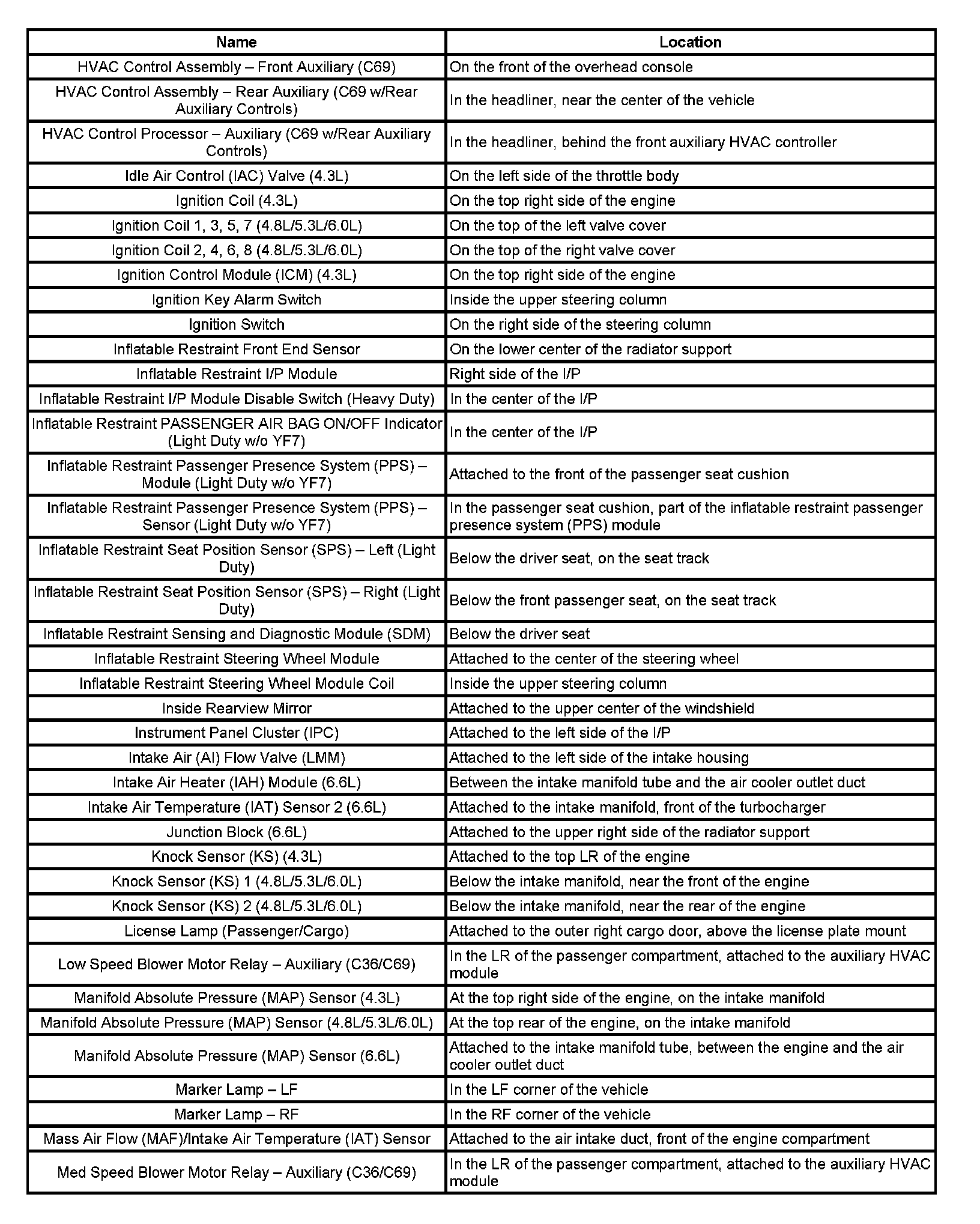

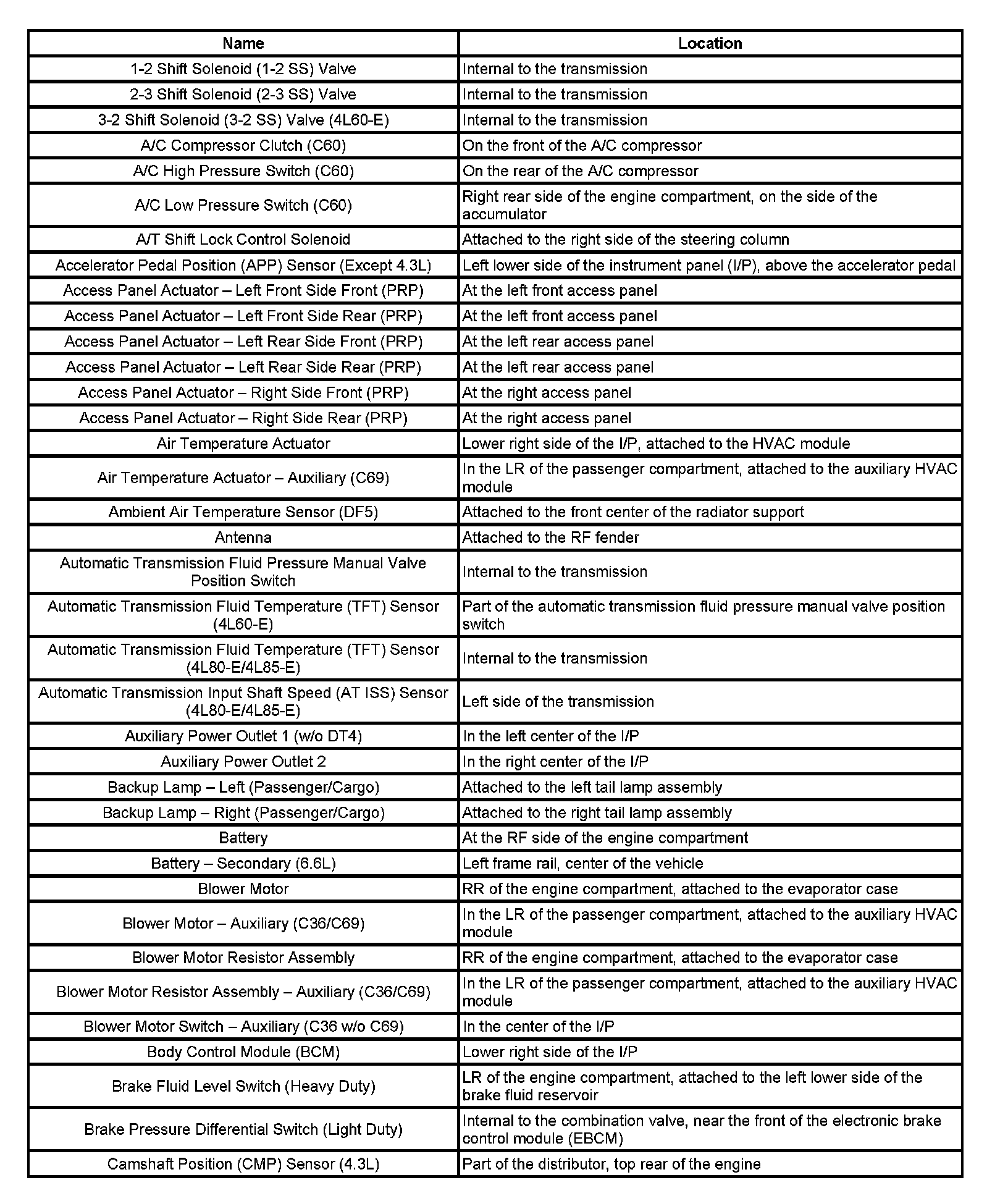

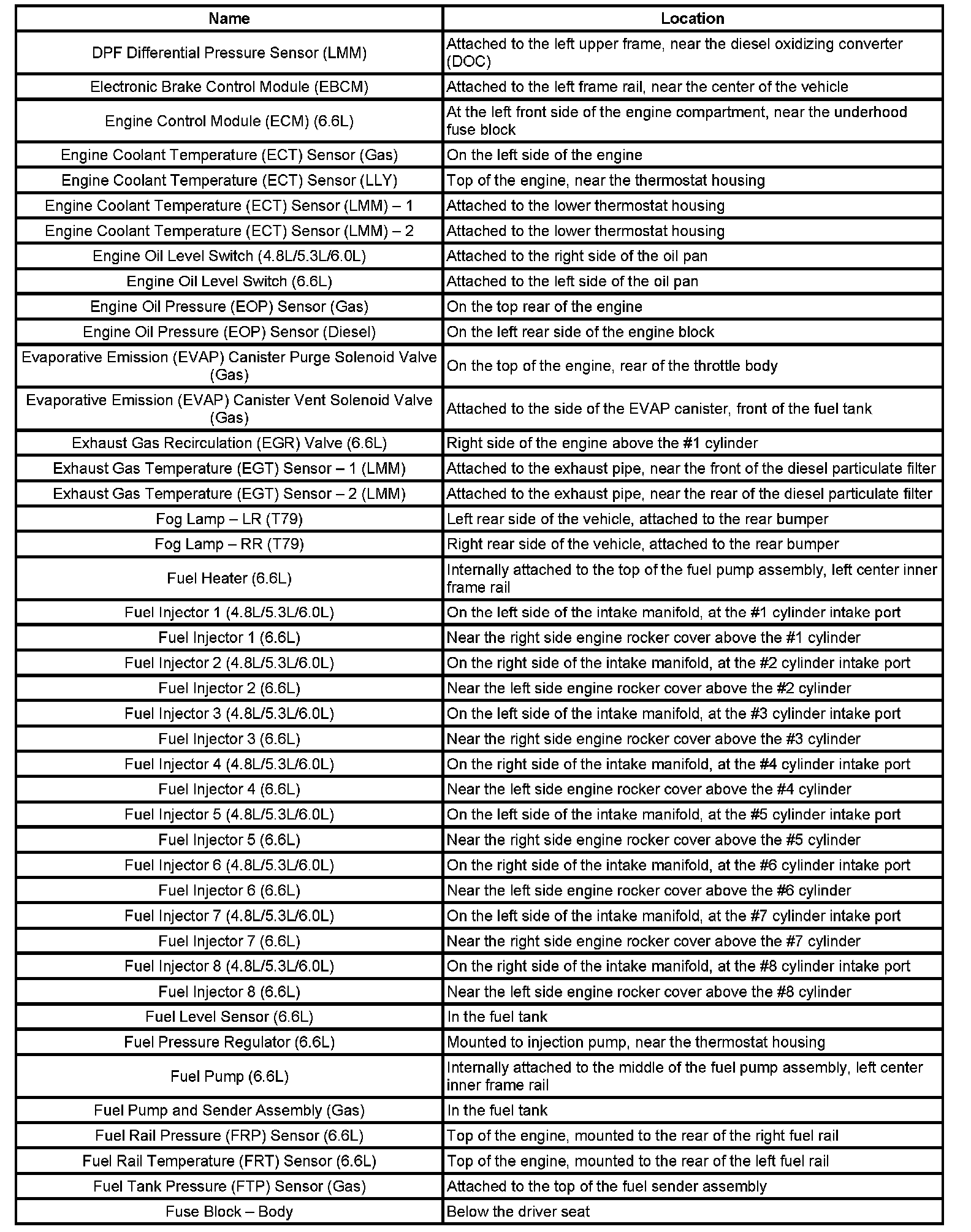

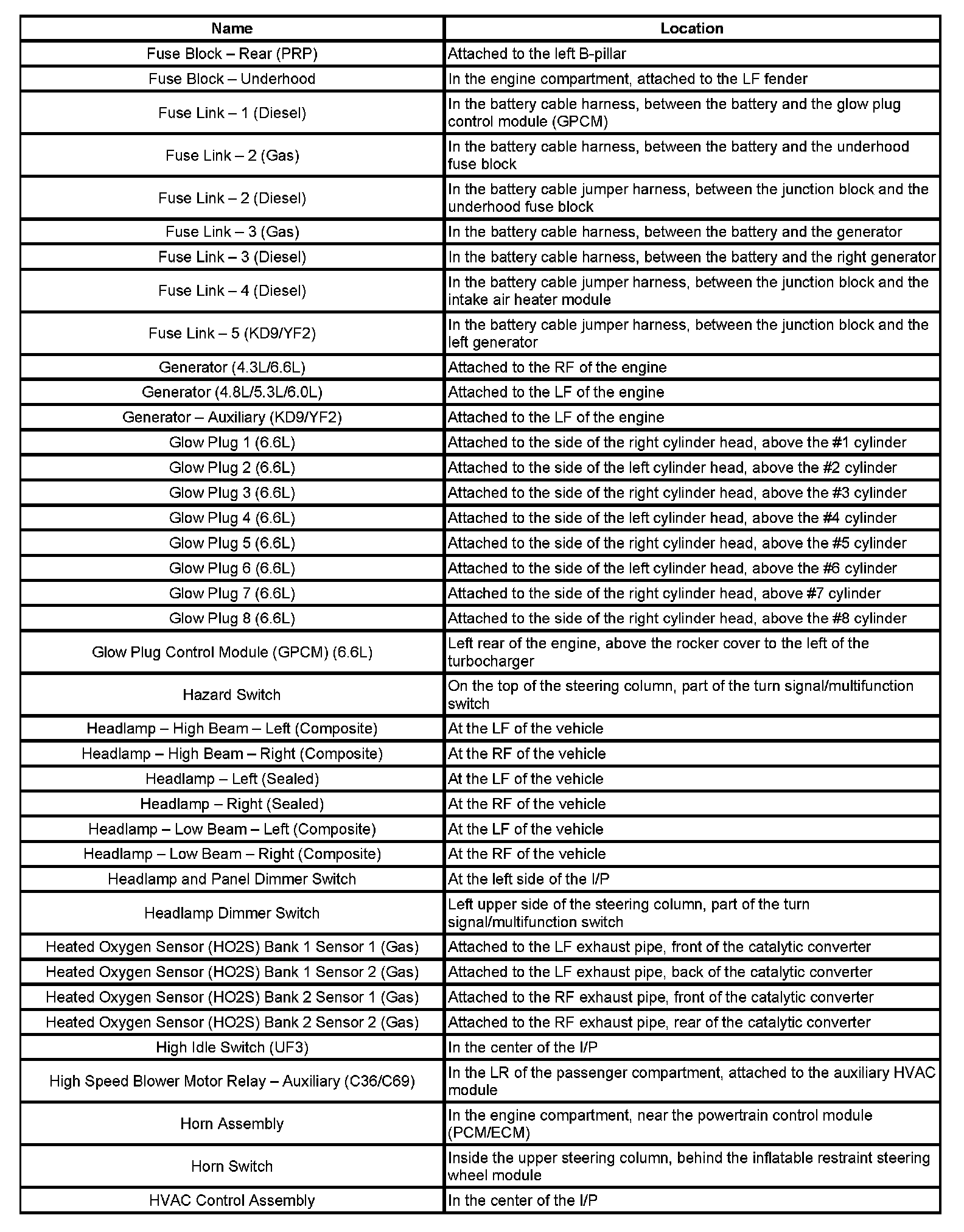

Components



1-2 - Ca:




Ca - Do:




DP - Fu:







HV - Me:




Mo - Tr:




Tr - Ya:
