Control Module: Diagrams

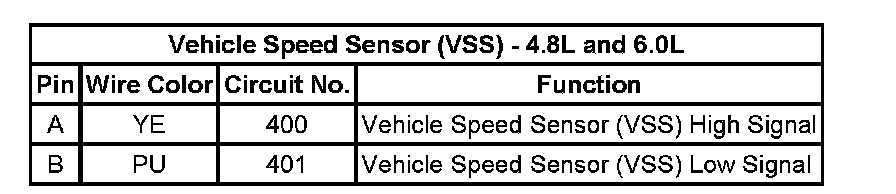

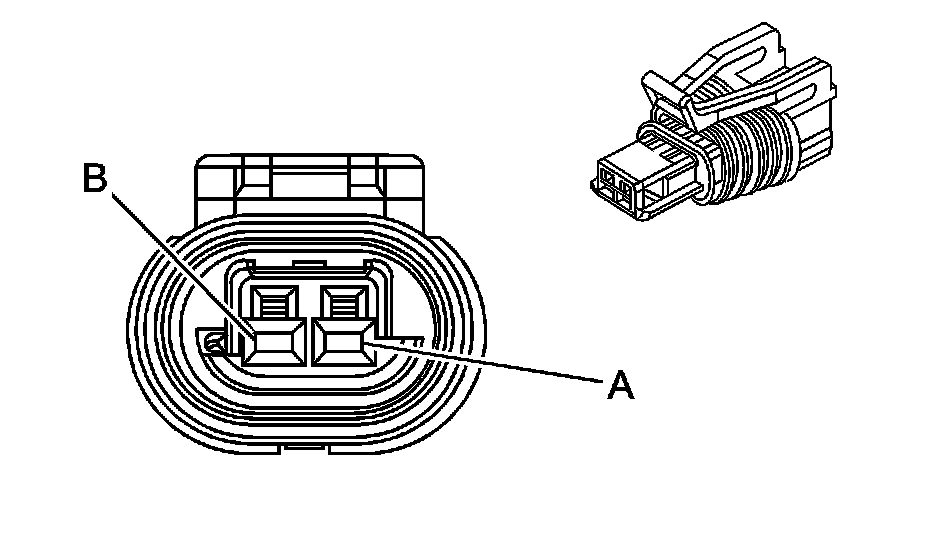

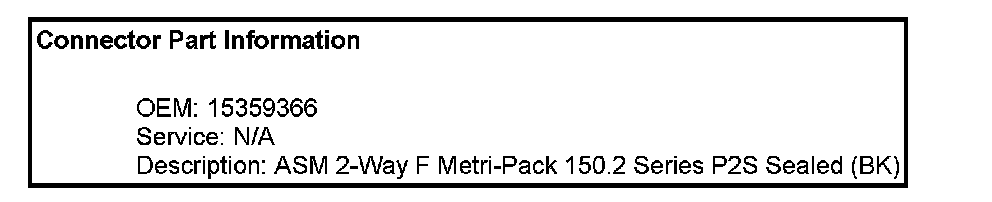

Vehicle Speed Sensor (VSS) - 4.8L and 6.0L
Vehicle Speed Sensor (VSS) - 4.8L And 6.0L:
