Flex Plate

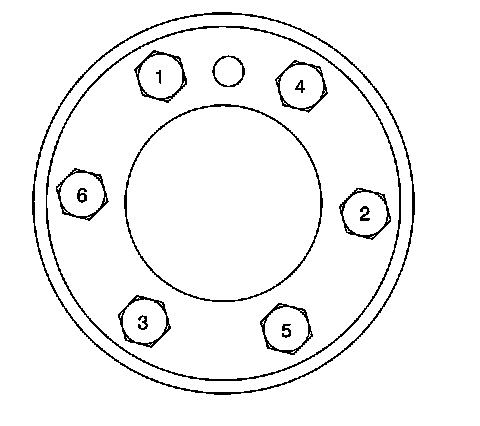

Flywheel Bolts
First Pass 20 N.m (15 lb ft)
Second Pass 50 N.m (37 lb ft)
Final Pass 100 N.m (74 lb ft)
