Audible Warning Device Control Module: Service and Repair

Multifunction Alarm Module Replacement

Removal Procedure





1. Remove the driver side knee bolster bracket.

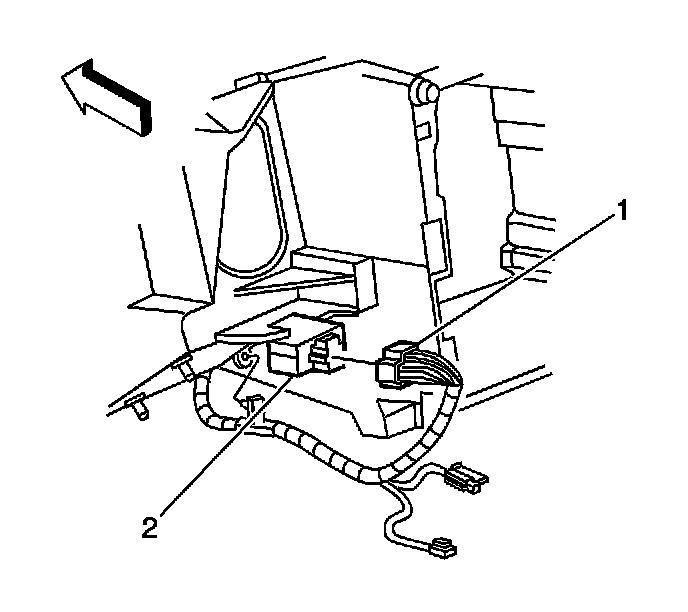

2. Disconnect the multifunction audio alarm module (2) electrical connector (1).
3. Remove the multifunction audio alarm module (2) from the vehicle.

Installation Procedure





1. Install the multifunction audio alarm module (2) to the mag beam.
2. Connect the electrical connector (1) to the multifunction audio alarm module (2).
3. Install the driver side knee bolster bracket.
