Transmission Position Sensor/Switch: Diagrams



Park/Neutral Position (PNP) Switch

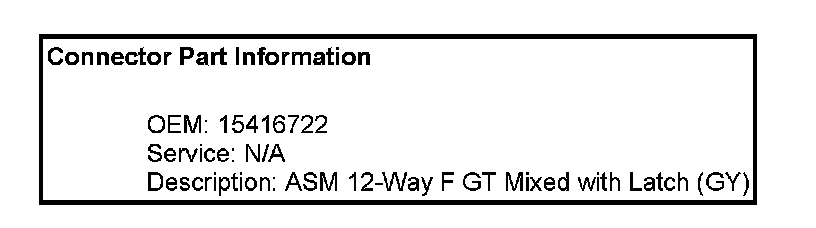

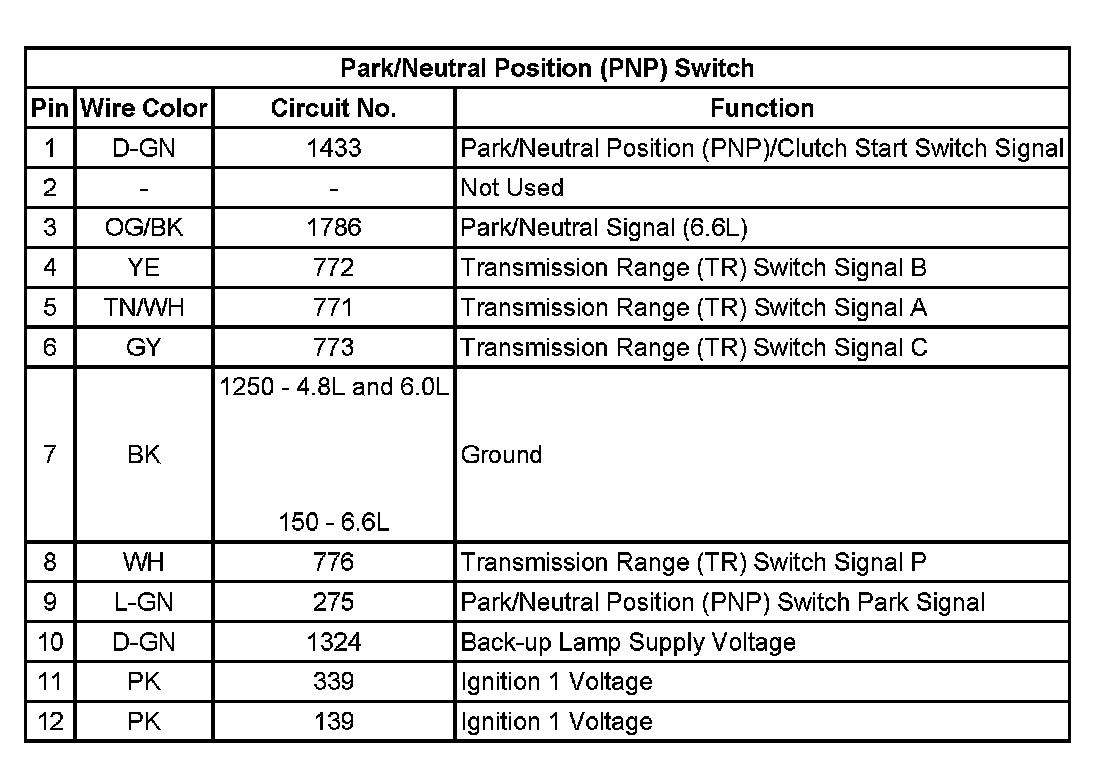

Park/neutral Position (PNP) Switch:
