Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

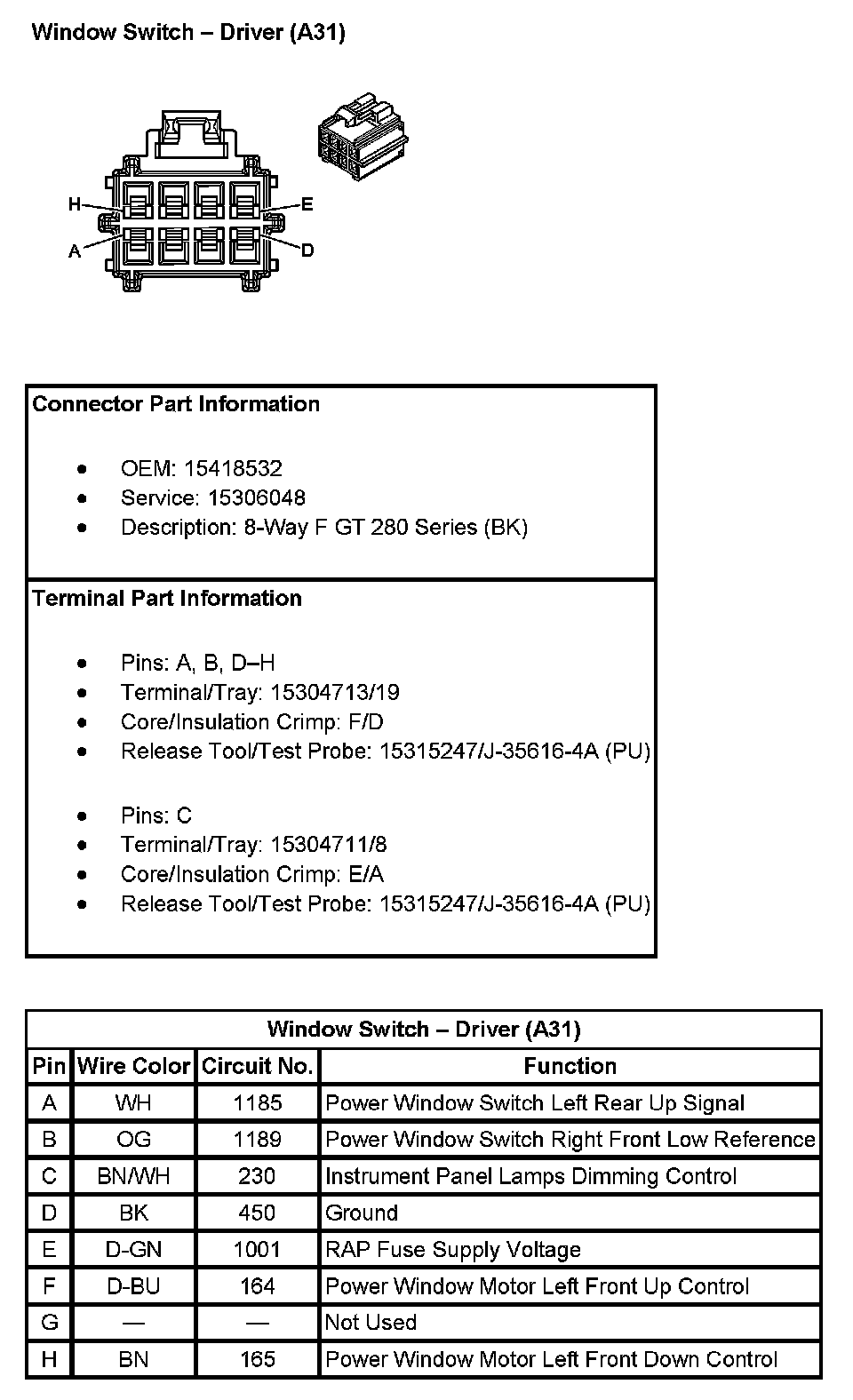

Window Switch - Driver (With RPO Code A31):

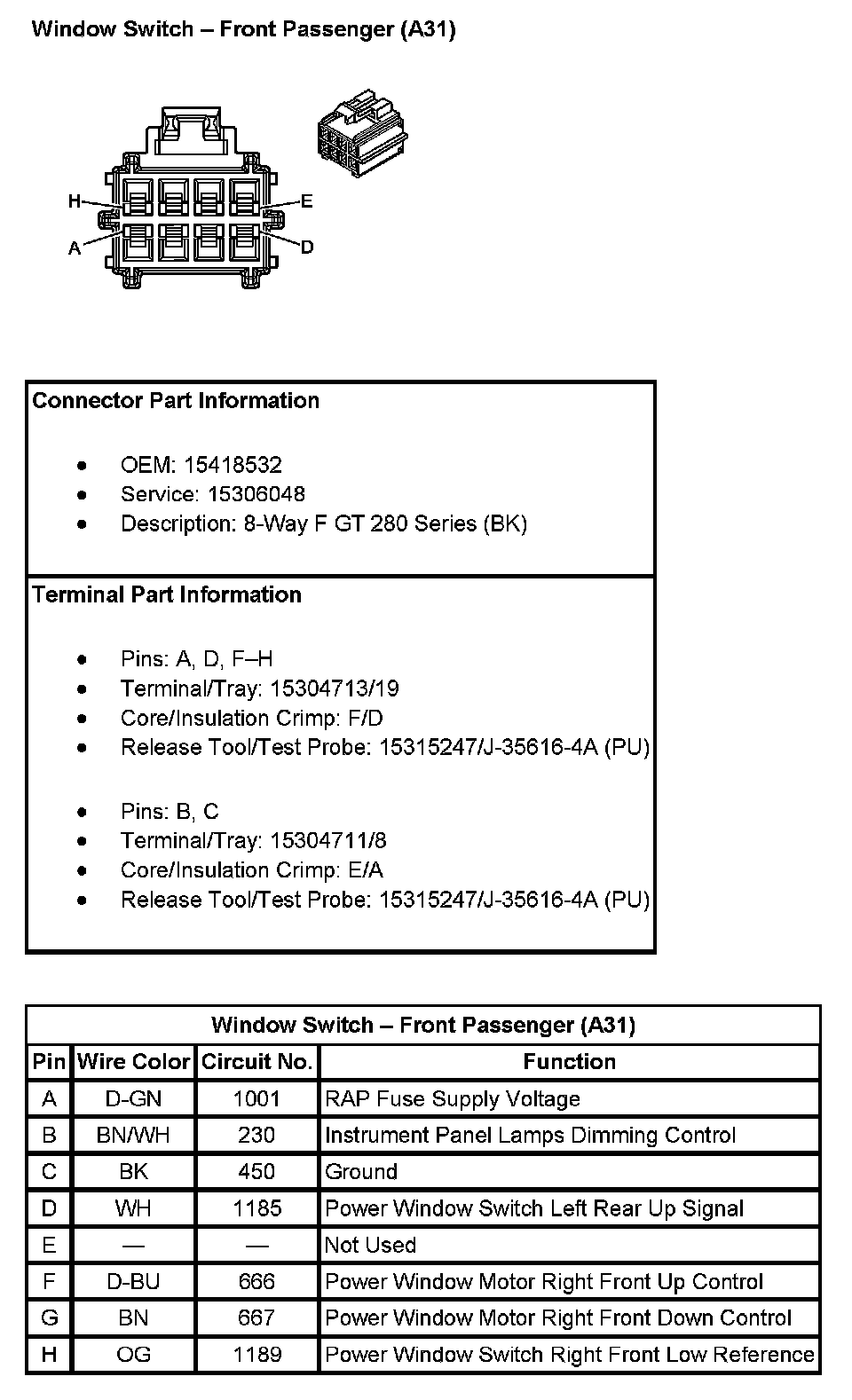

Window Switch - Front Passenger (With RPO Code A31):

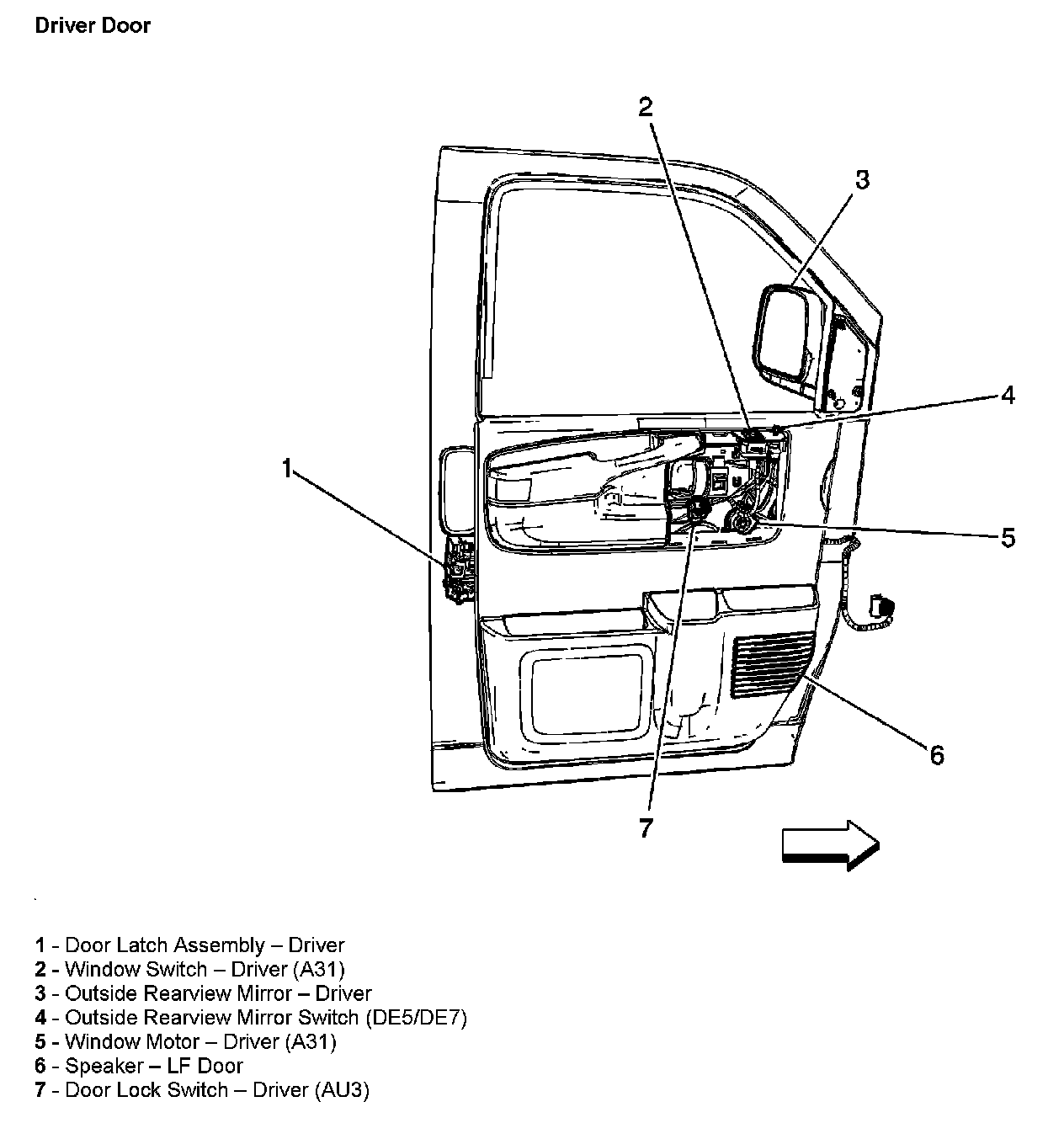

Driver Door:

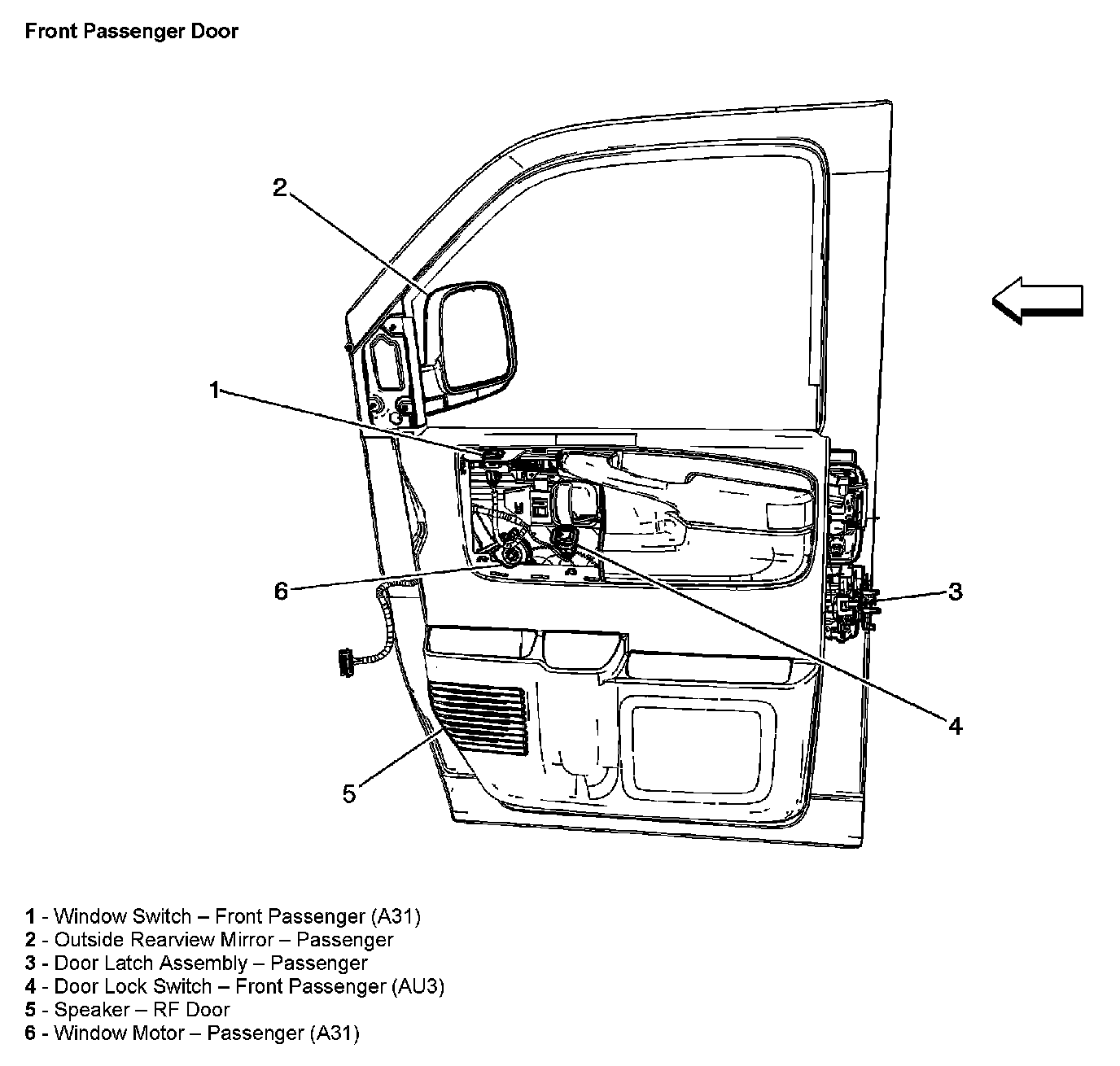

Front Passenger Door:
