Outside Temperature Display Sensor
Outside Temperature Display Sensor

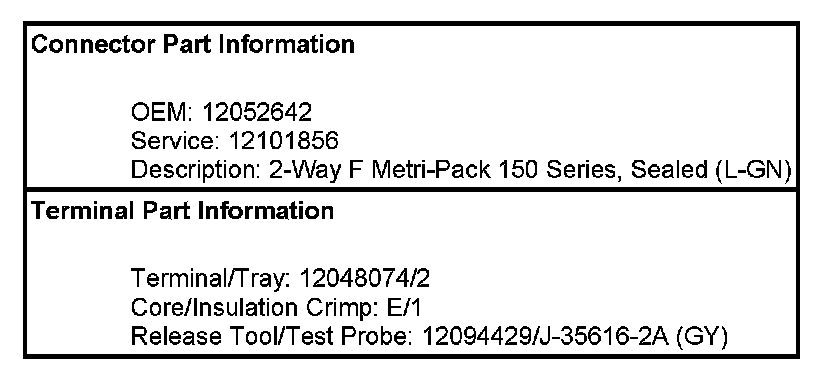

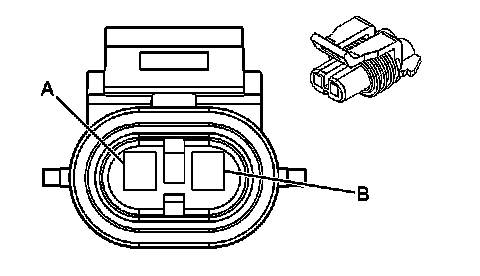

Displays and Gages Connector End Views

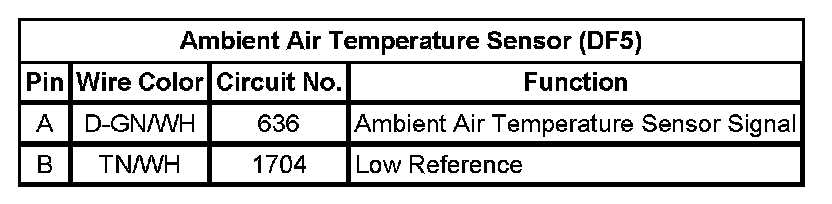

Ambient Air Temperature Sensor (DF5)
