Map Light
Map Light

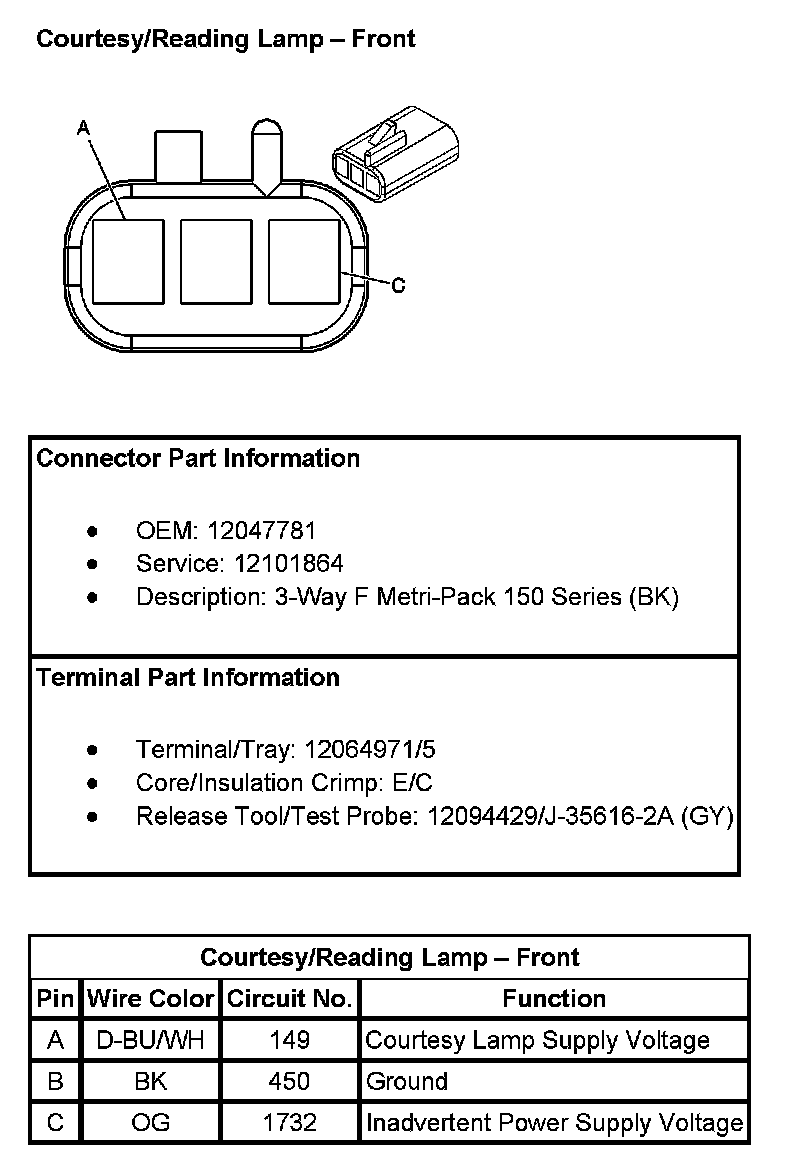

Courtesy/Reading Lamp - Front:

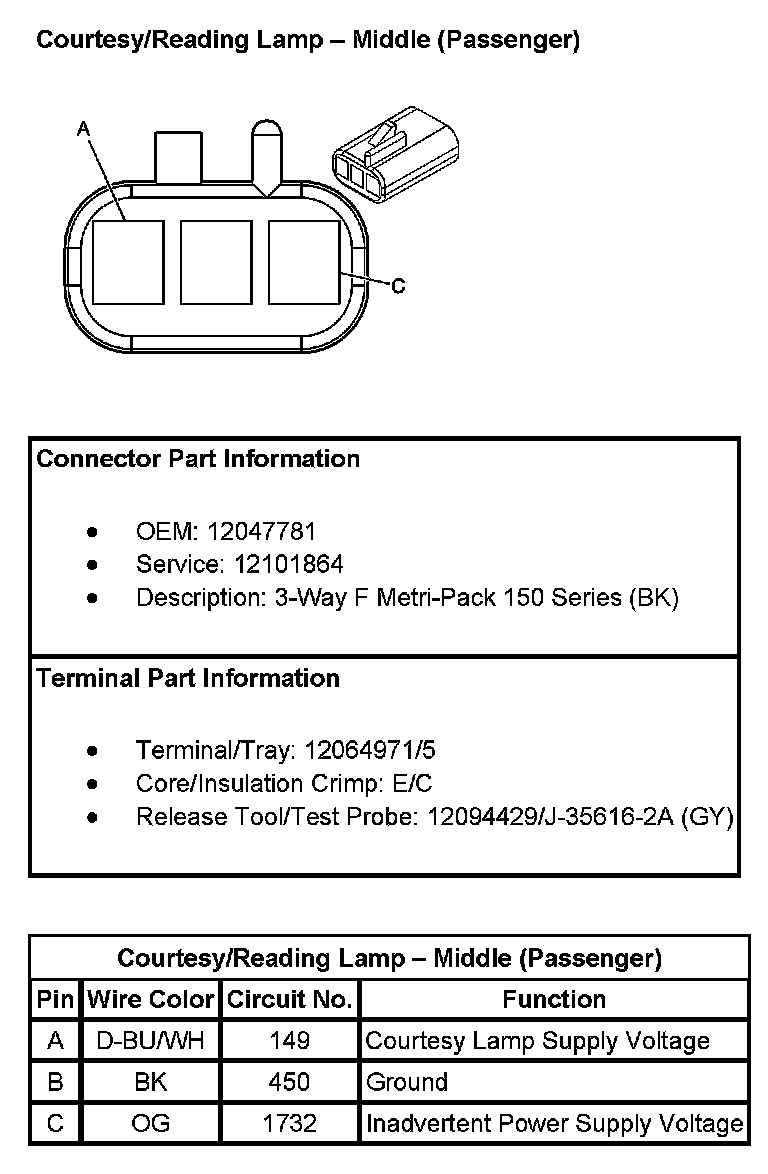

Courtesy/Reading Lamp - Middle (Passenger):

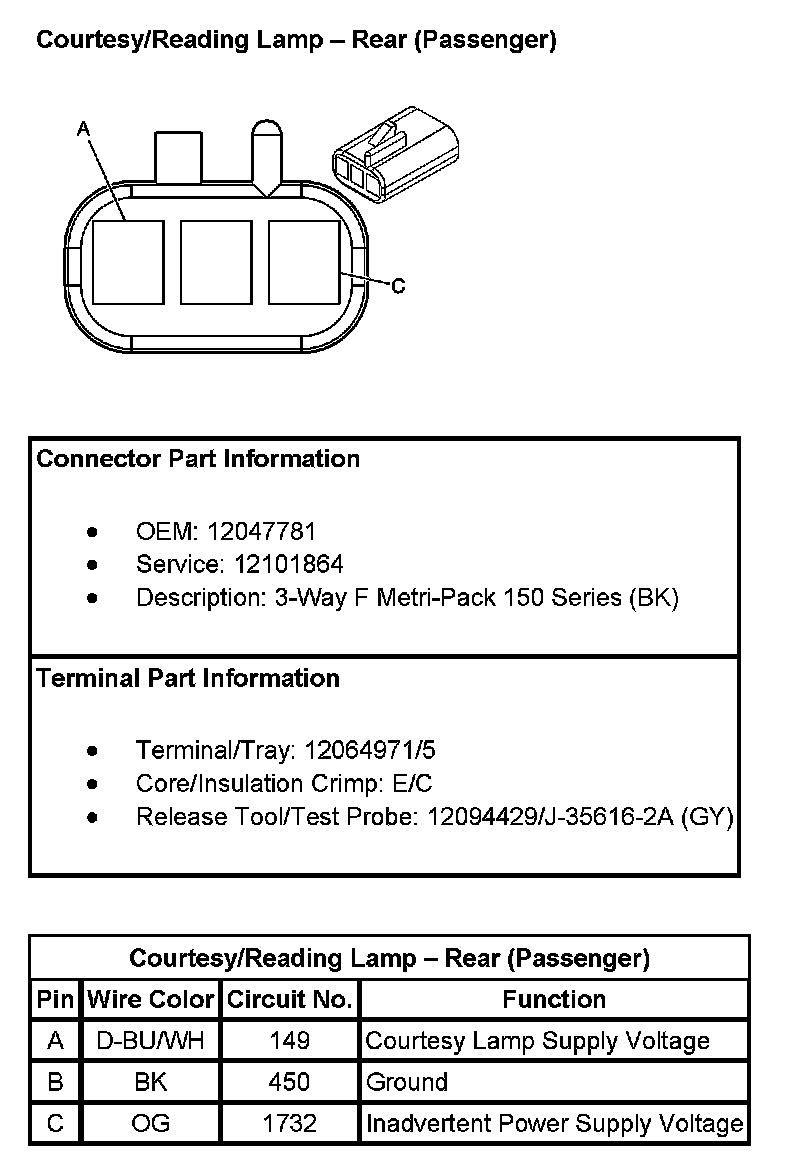

Courtesy/Reading Lamp - Rear (Passenger):
