Coolant Level Sensor
Cooling System Connector End Views

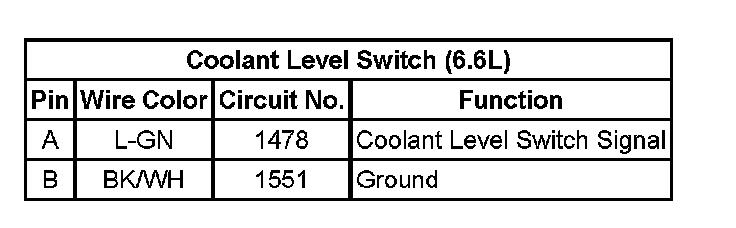

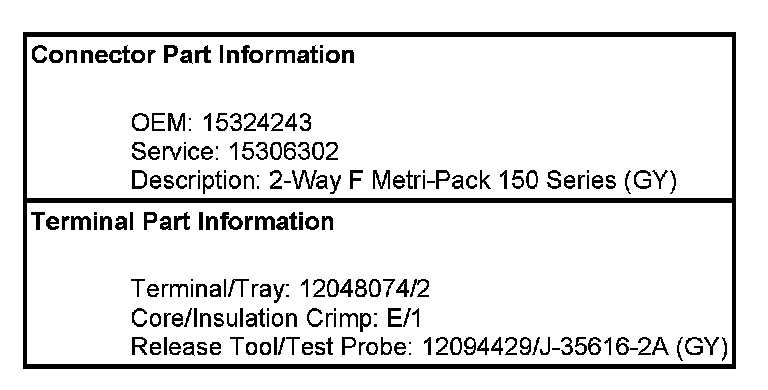

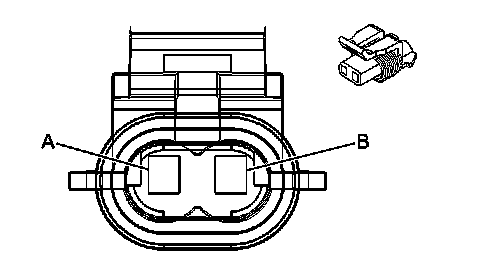

Coolant Level Switch (6.6L)
Coolant Level Switch (6.6L):
