Control Assembly, HVAC

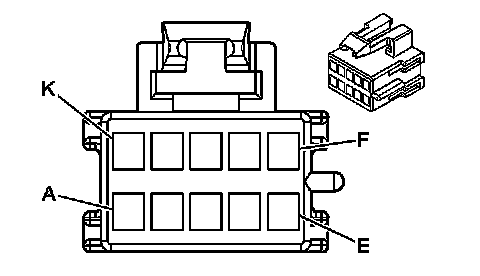

HVAC Connector End Views

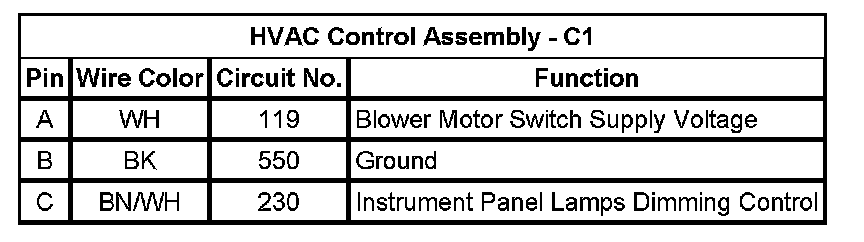

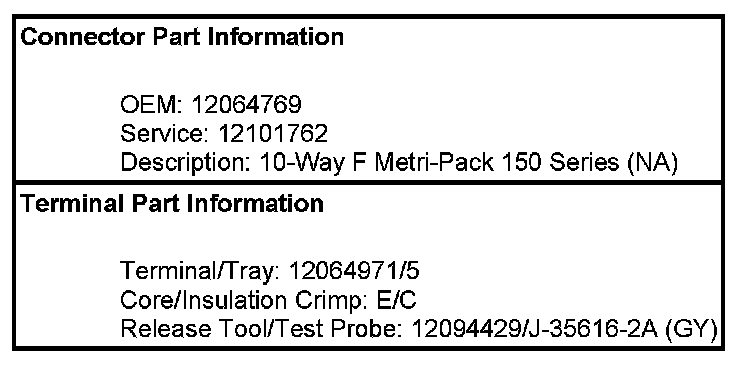

HVAC Control Assembly - C1

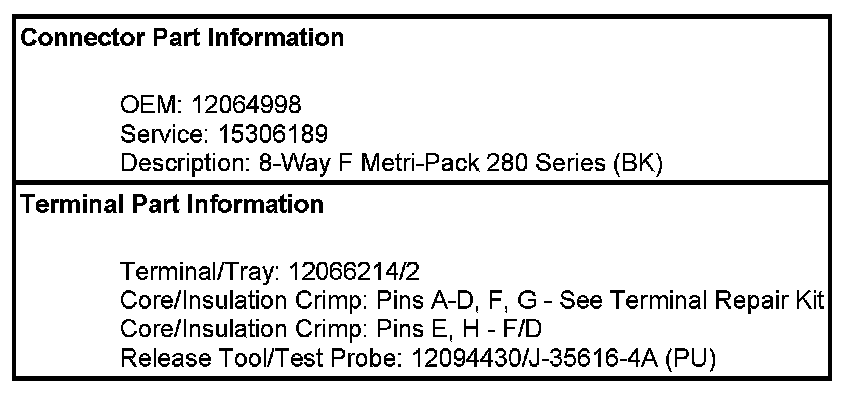

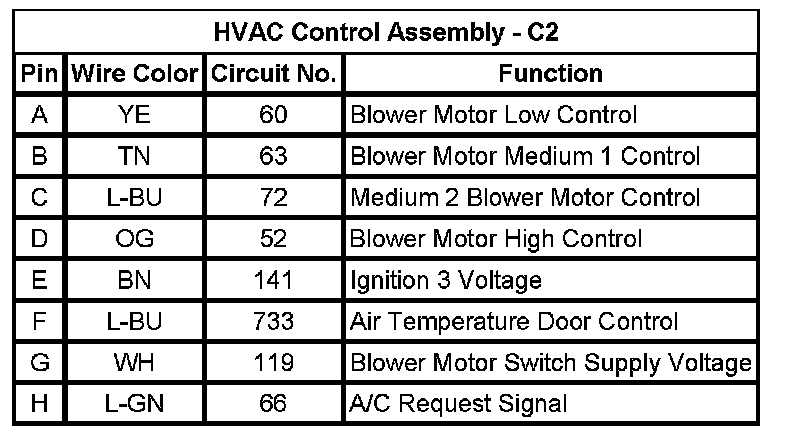

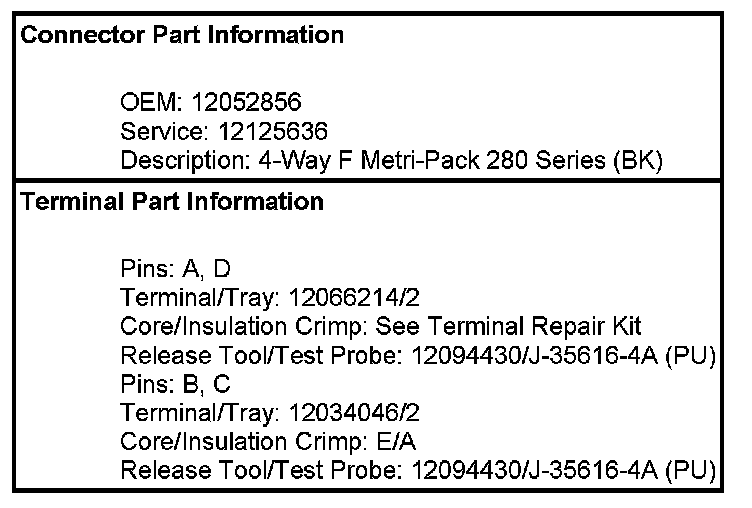

HVAC Control Assembly - C2

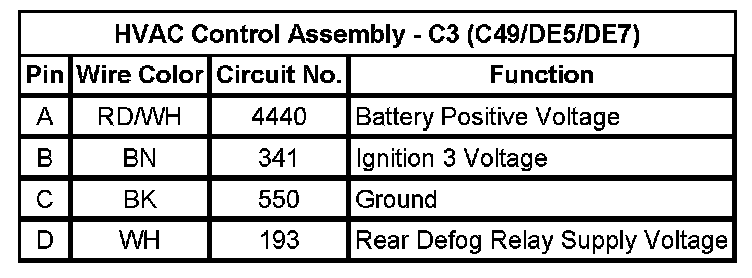

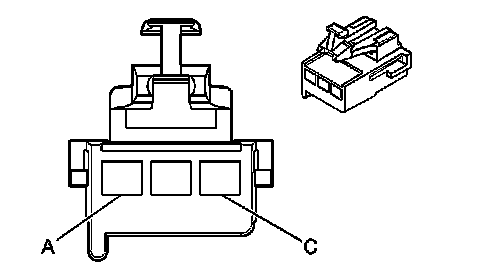

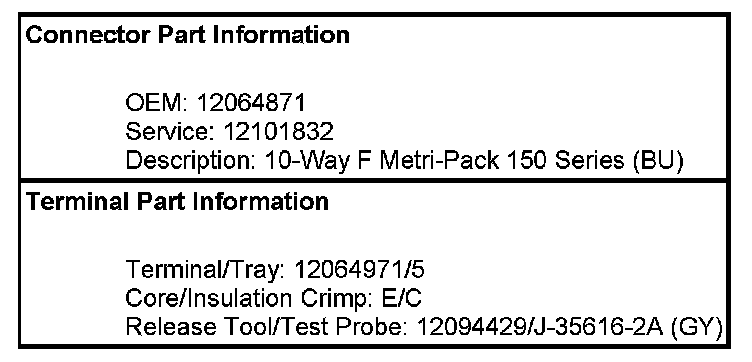

HVAC Control Assembly - C3 (C49/DE5/DE7)

Transfer Case Shift Control Module - C3:

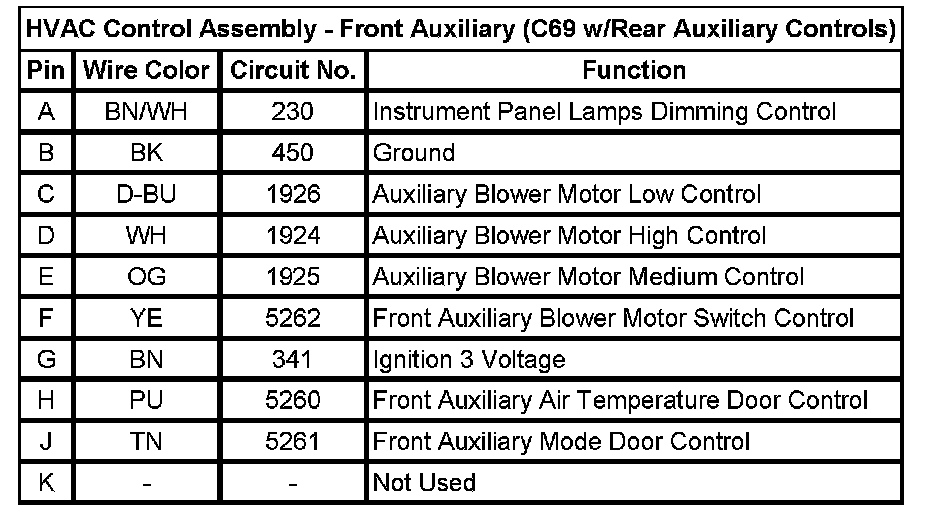

HVAC Control Assembly - Front Auxiliary (C69 w/Rear Auxiliary Controls)

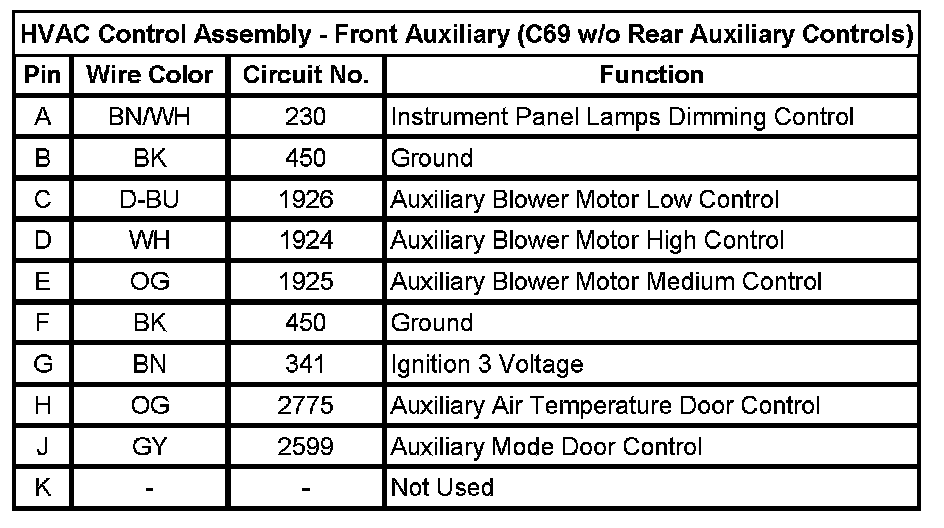

HVAC Control Assembly - Front Auxiliary (C69 w/o Rear Auxiliary Controls)

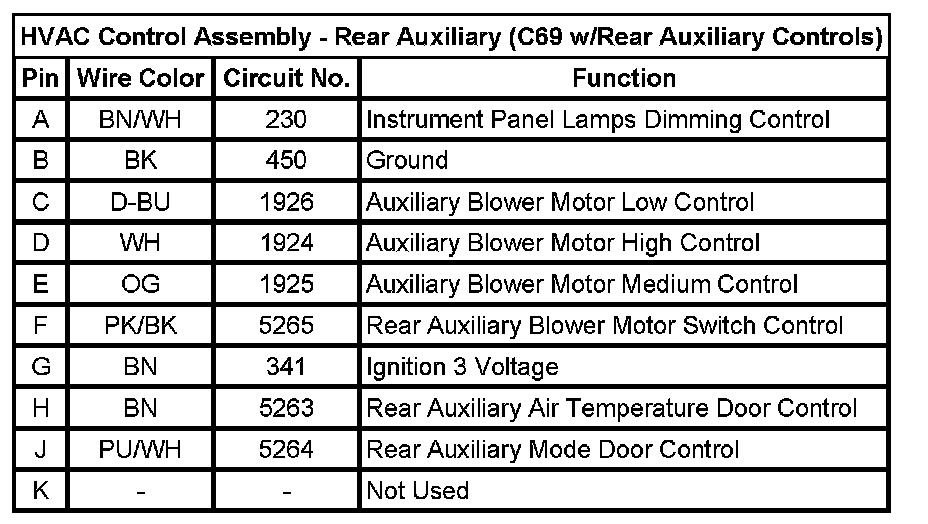

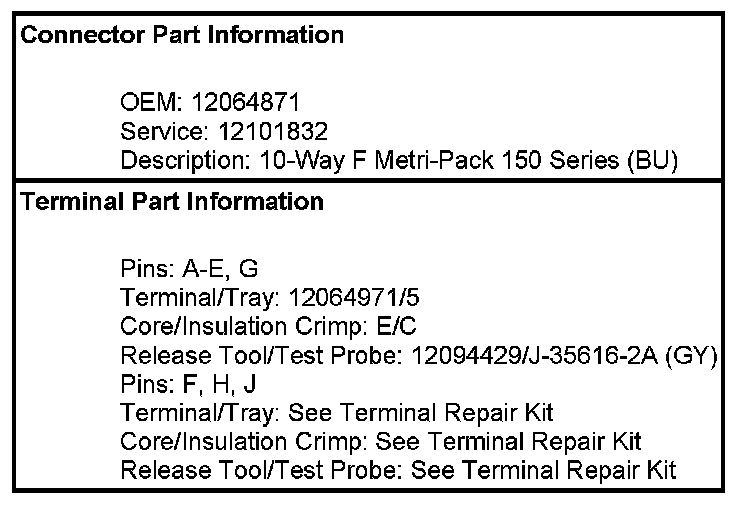

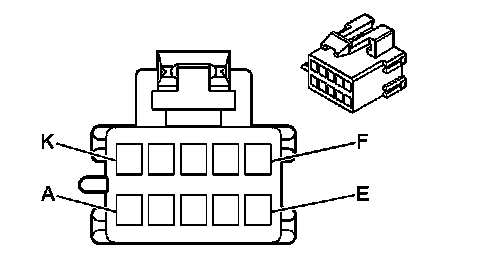

HVAC Control Assembly - Rear Auxiliary (C69 w/Rear Auxiliary Controls)
