Auxiliary Cabin Heater Control Module
HVAC Connector End Views

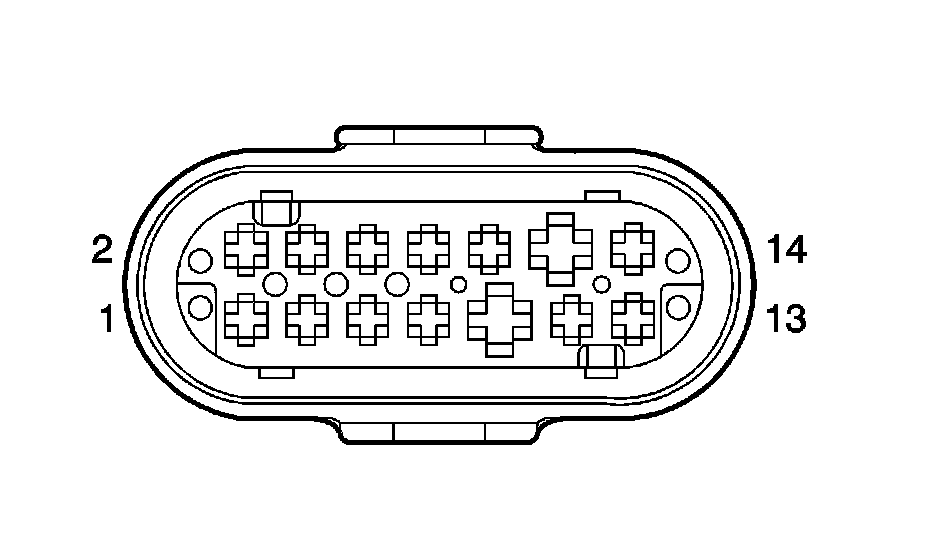

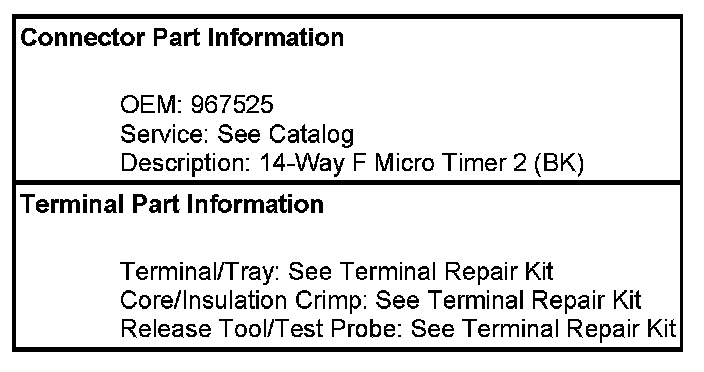

Coolant Heater Control - C1 (K08)

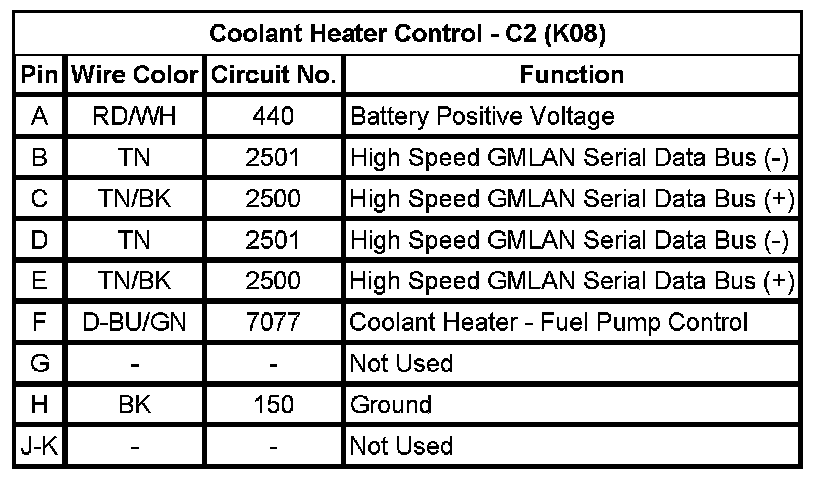

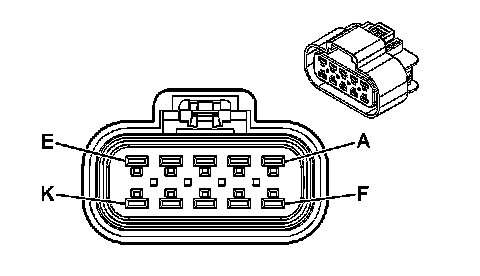

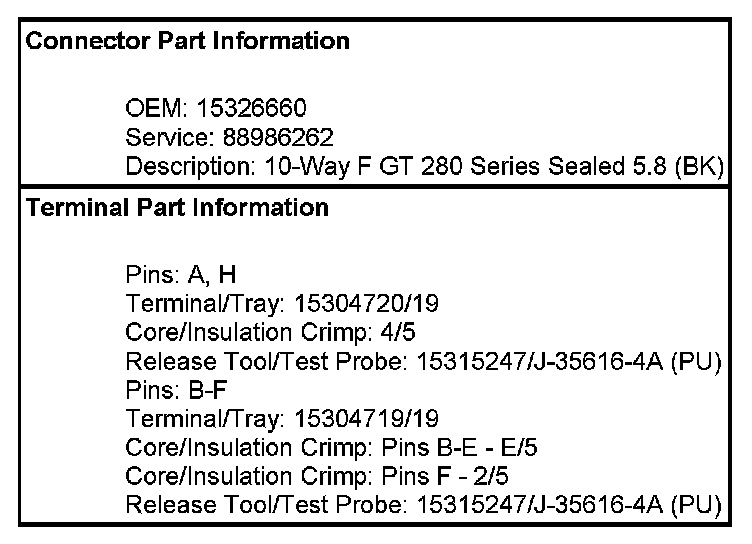

Coolant Heater Control - C2 (K08)
