Audible Warning Device Control Module
Audible Warning Device Control Module
Displays and Gages Connector End Views

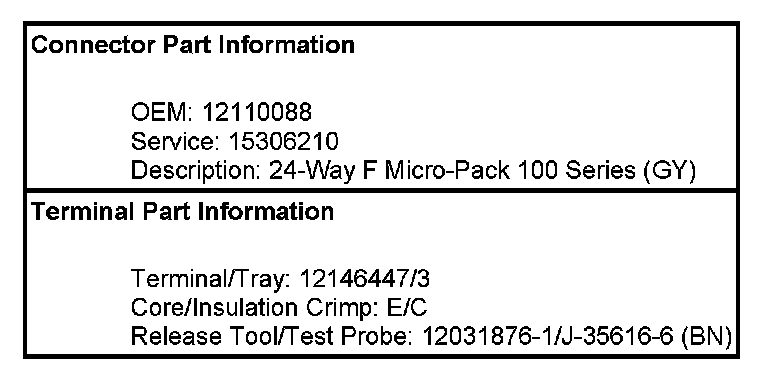

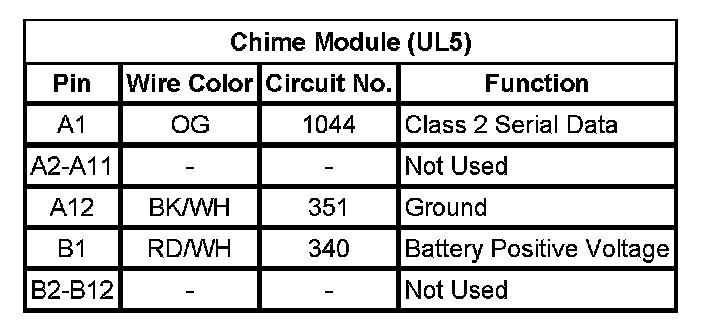

Chime Module (UL5)
