Body Control Module - C4
Body Control Module - C4

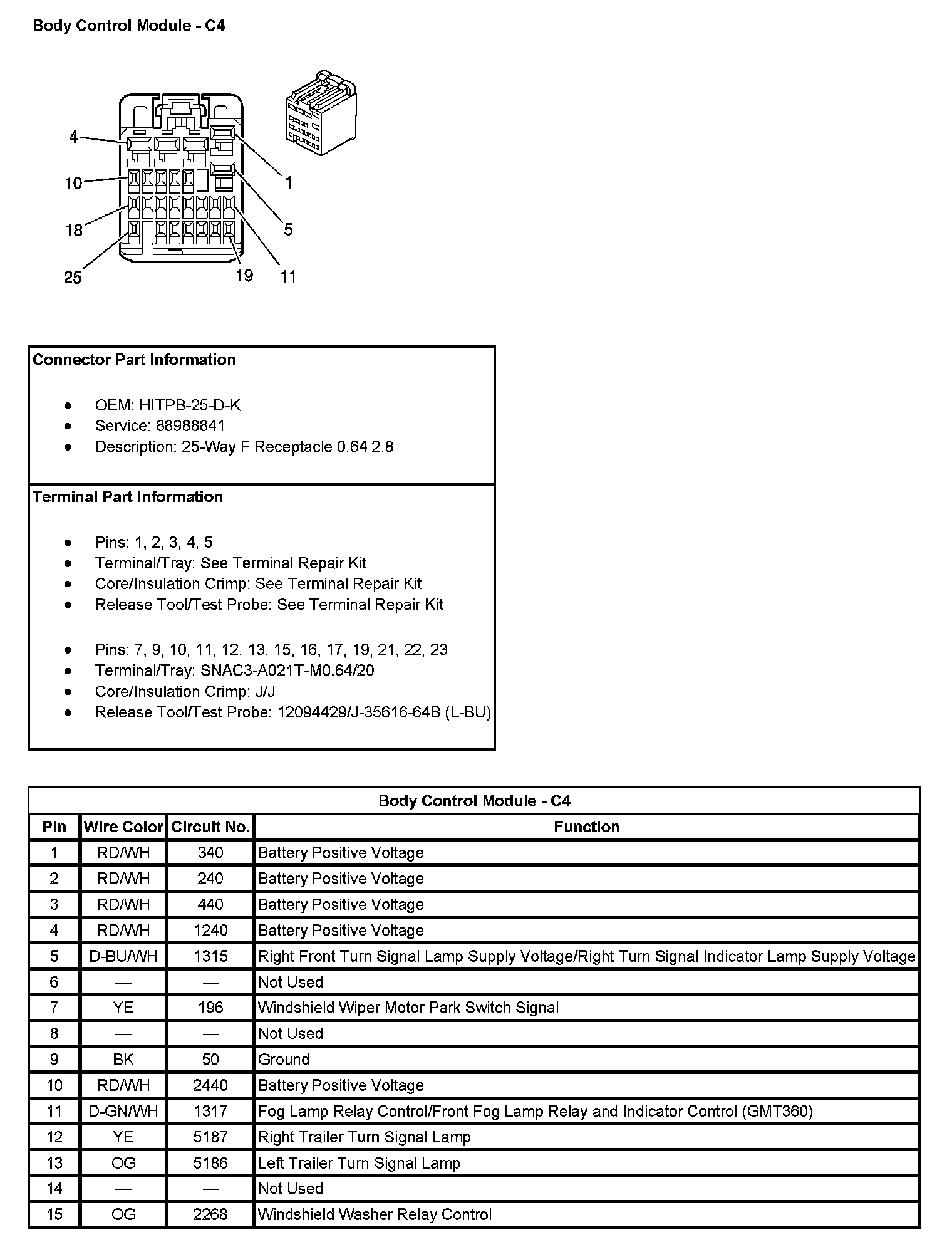

Body Control Module - C4 (Pin 1 To 15):

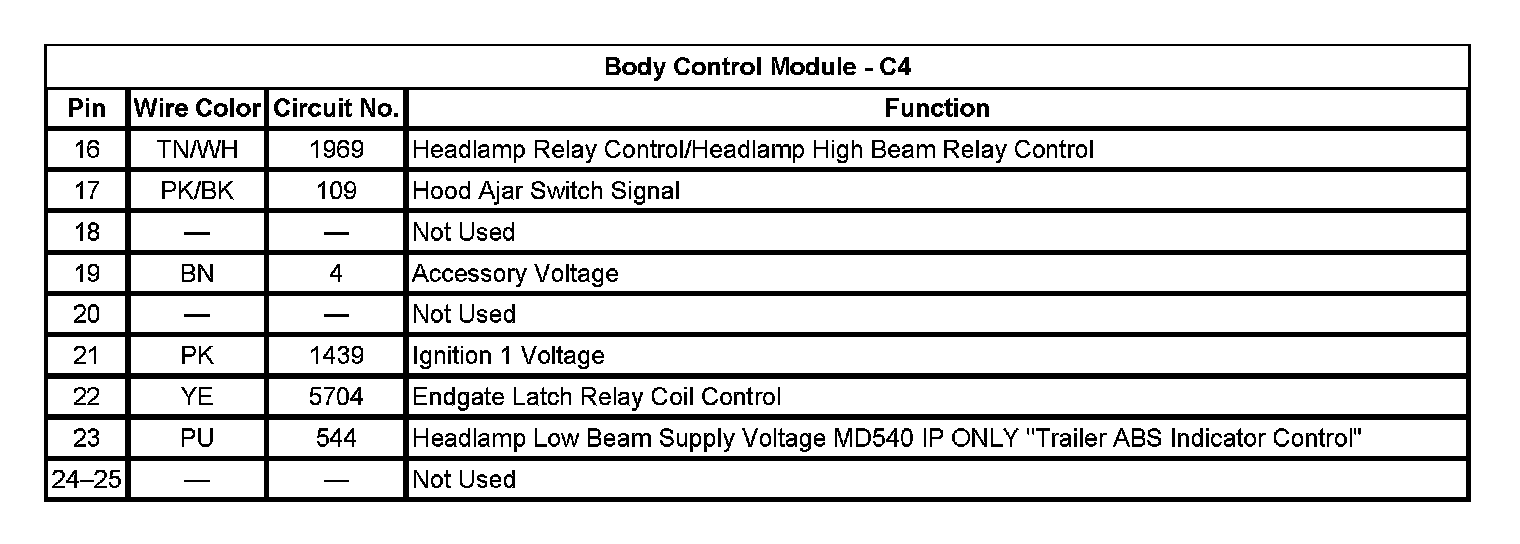

Body Control Module - C4 (Pin 16 To 25):
