Body Control Module - C1
Body Control Module - C1

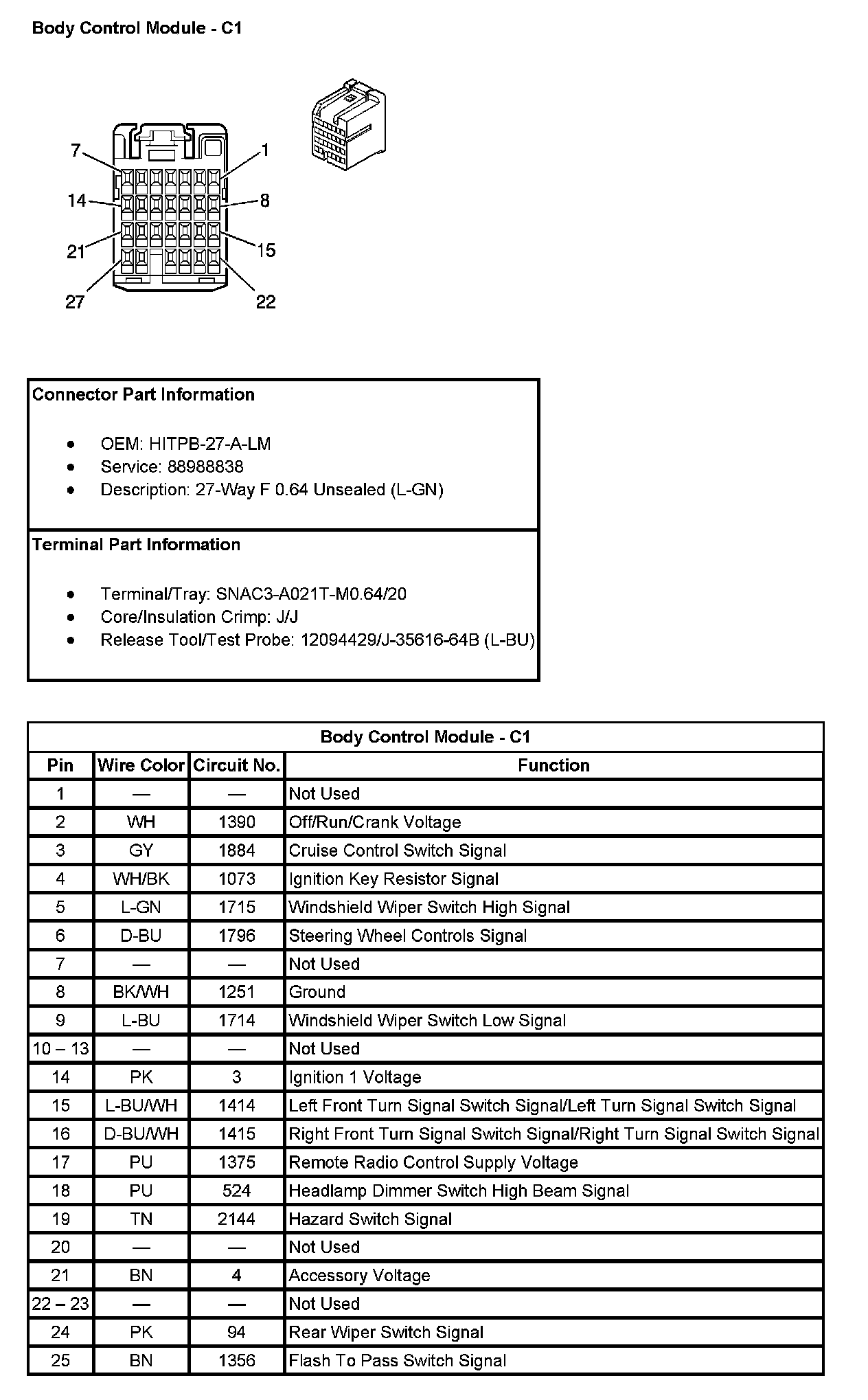

Body Control Module - C1 (Pin 1 To 25):

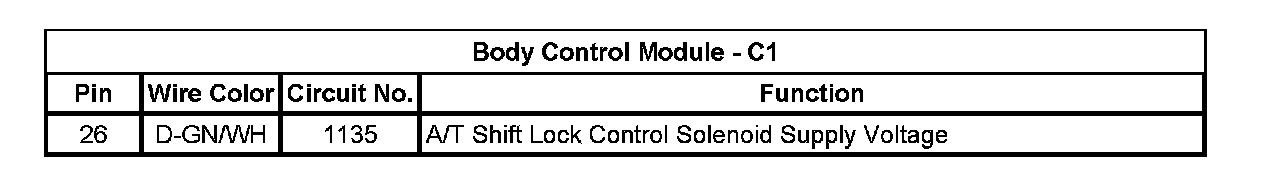

Body Control Module - C1 (Pin 26):
