Thread Repair



Thread Repair Specifications

Engine Block:

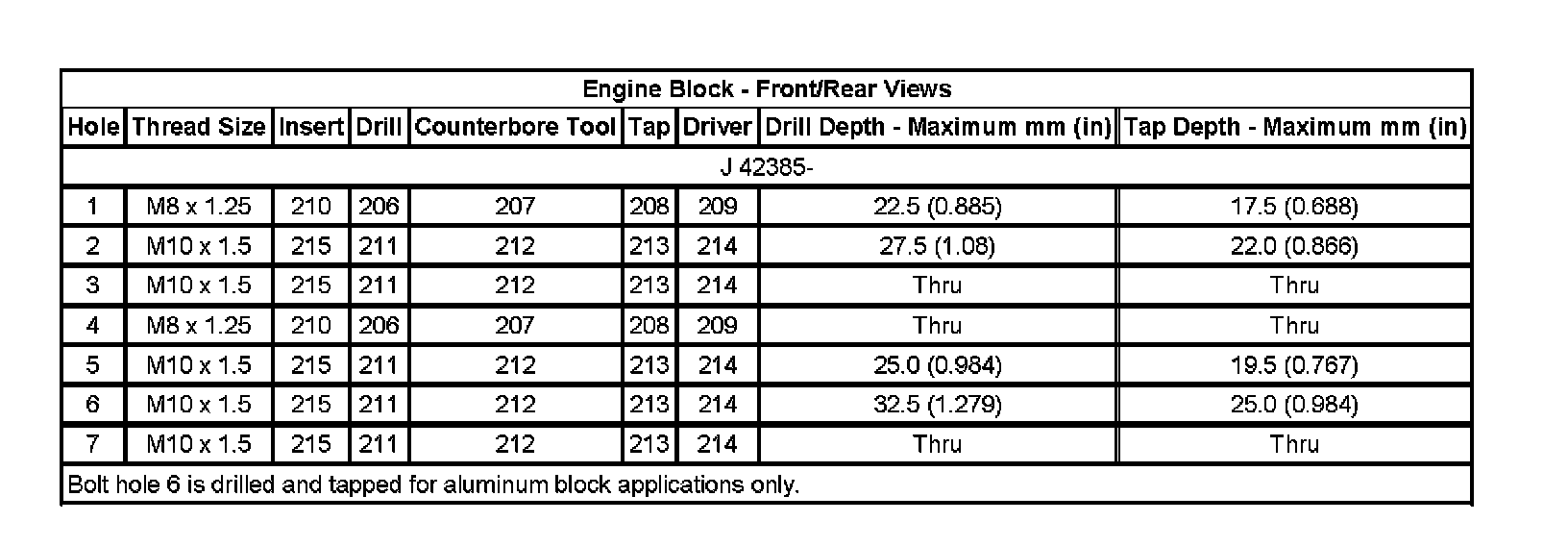

Engine Block - Front/Rear Views:




Engine Block:

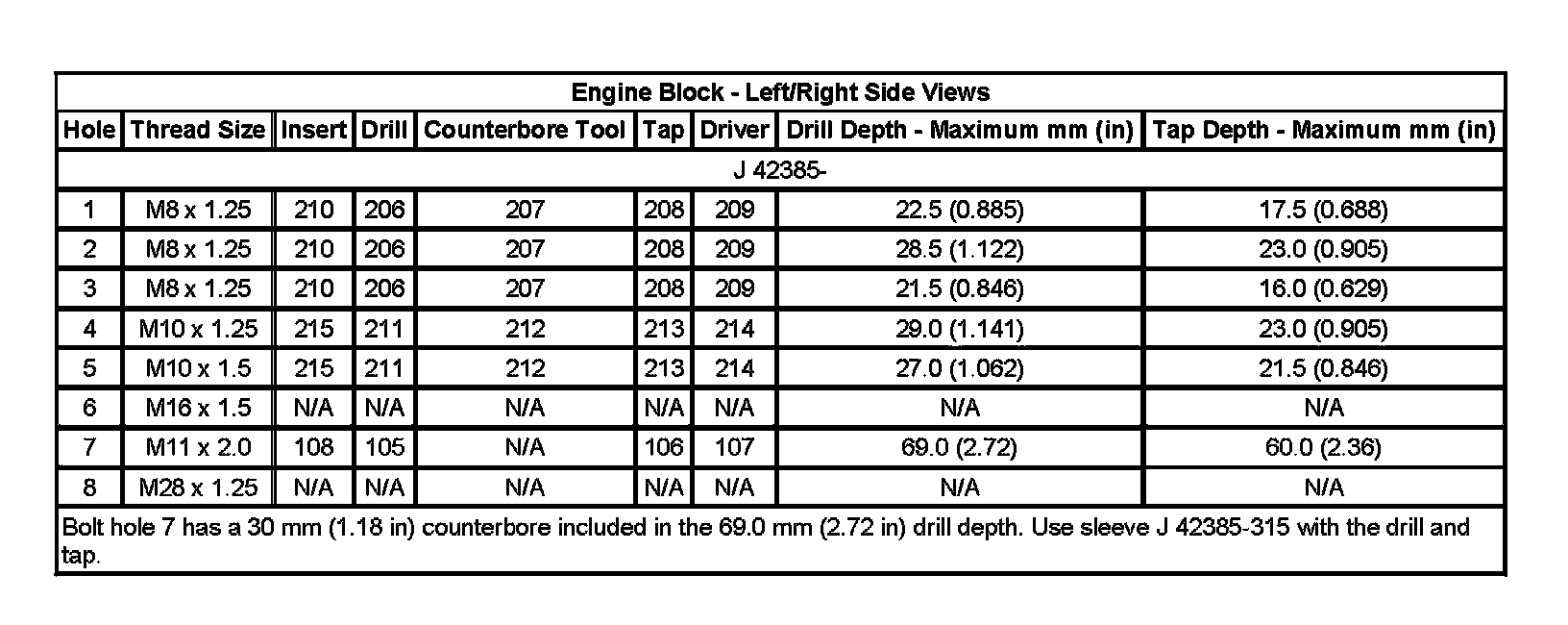

Engine Block - Left/Right Side Views:




Engine Block:

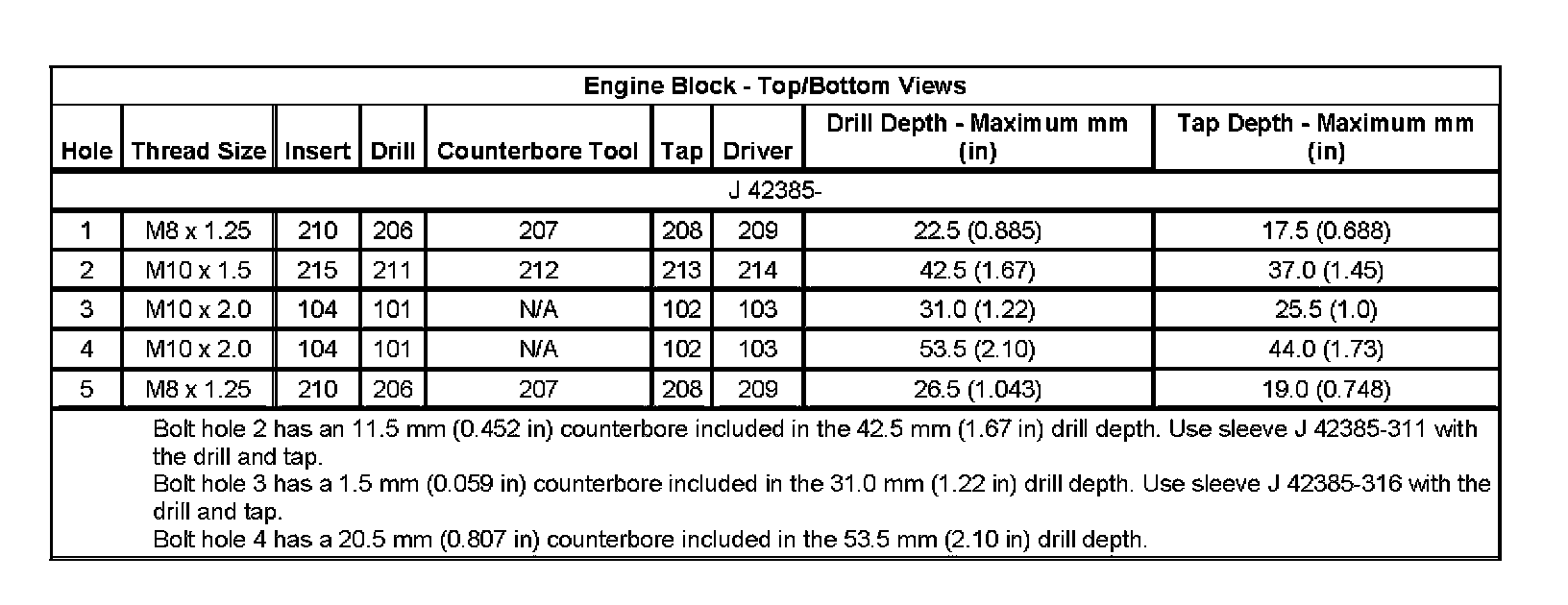

Engine Block - Top/Bottom Views:




Cylinder Head:

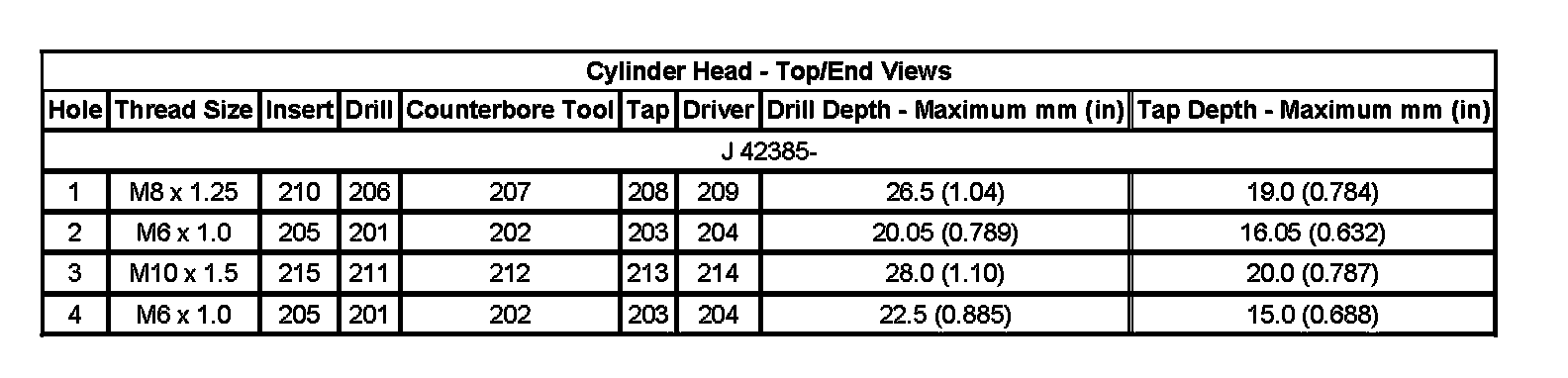

Cylinder Head - Top/End Views:




Cylinder Head:

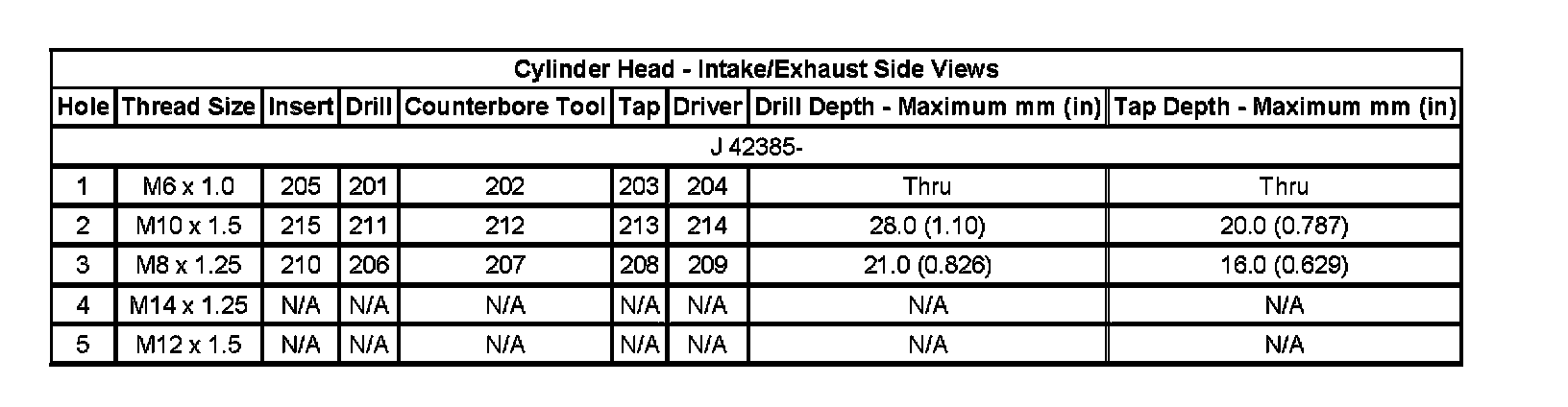

Cylinder Head - Intake/Exhaust Side Views:
