Steering Column Control Module



Steering Wheel and Column Connector End Views

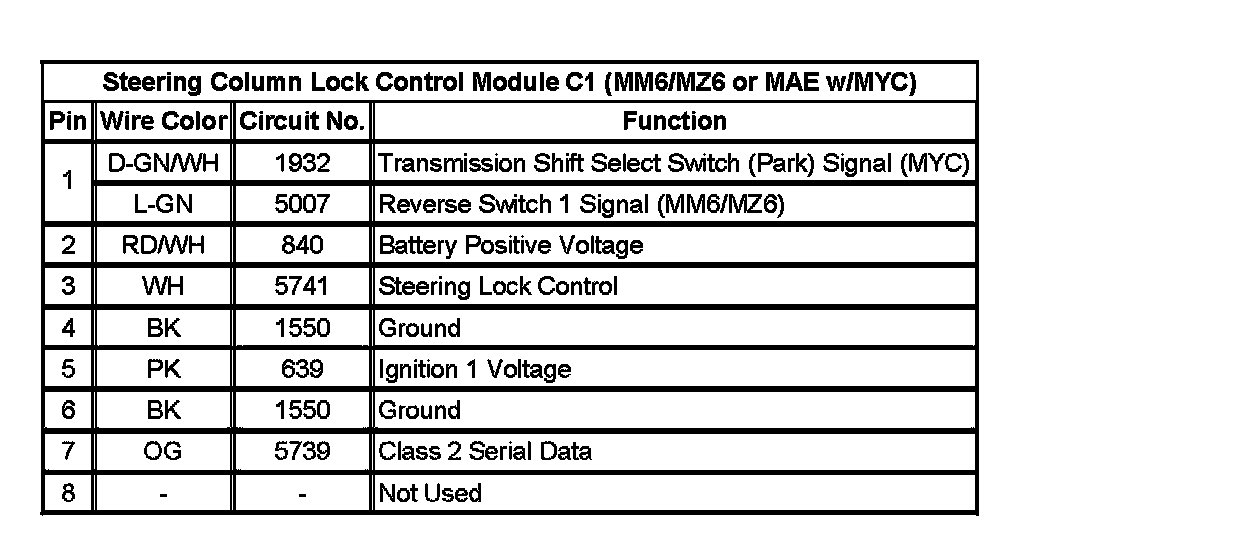

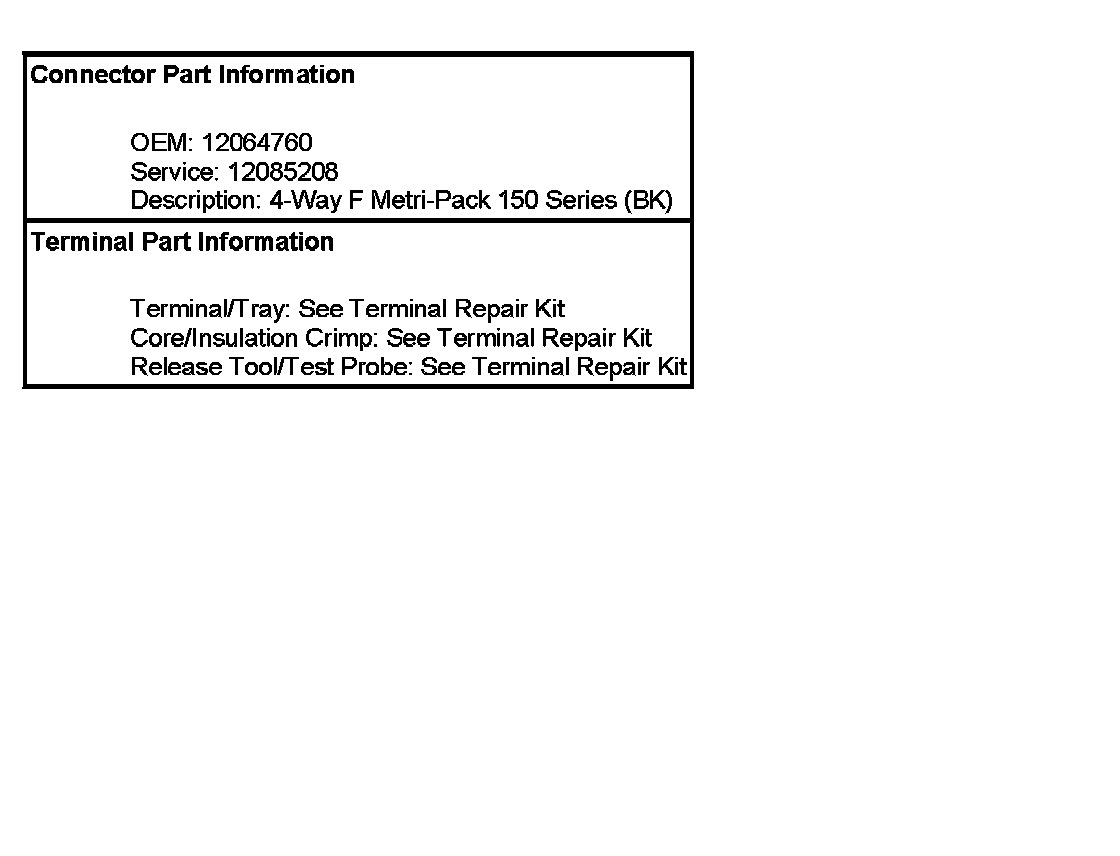

Steering Column Lock Control Module C1 (MM6/MZ6 Or MAE W/MYC):

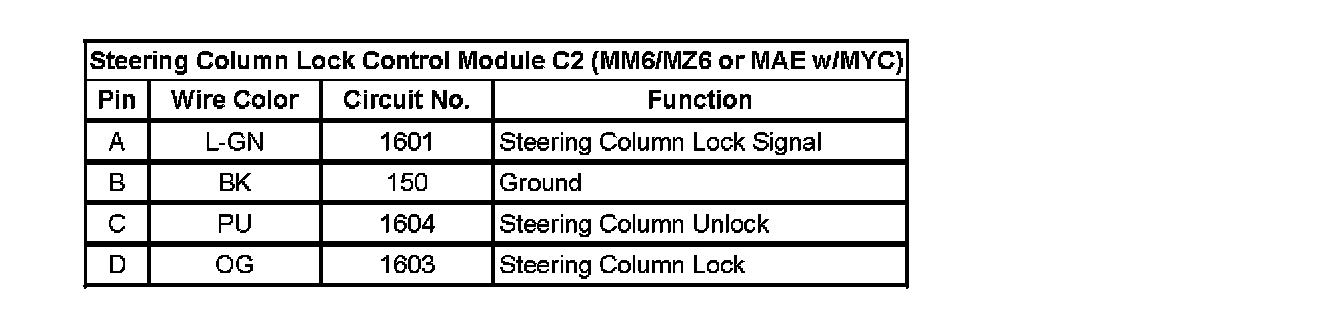

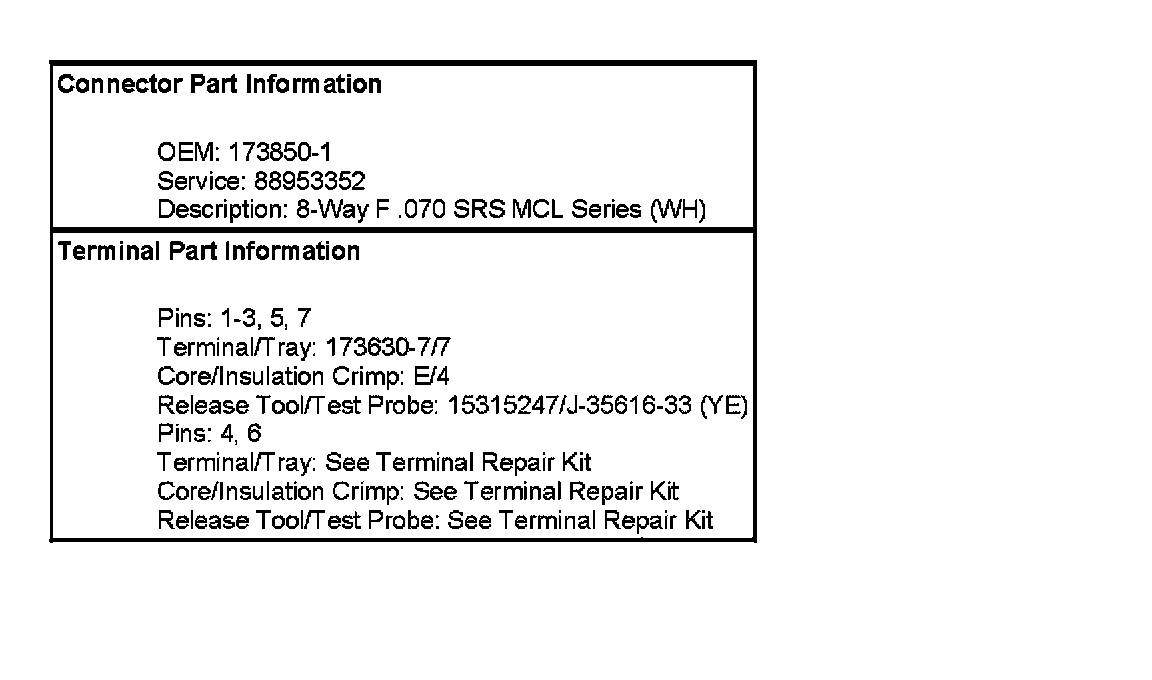

Steering Column Lock Control Module C2 (MM6/MZ6 Or MAE W/MYC):
