Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module
Fan Control Module

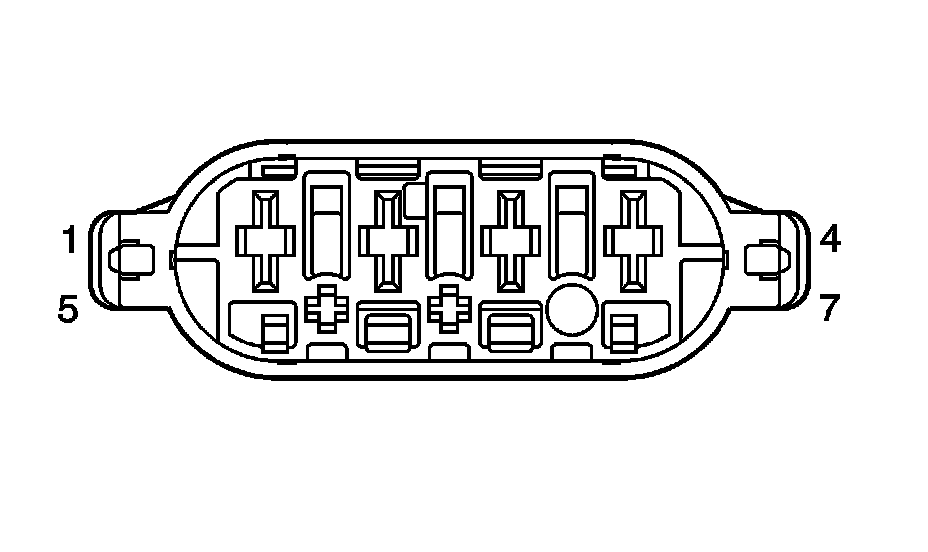

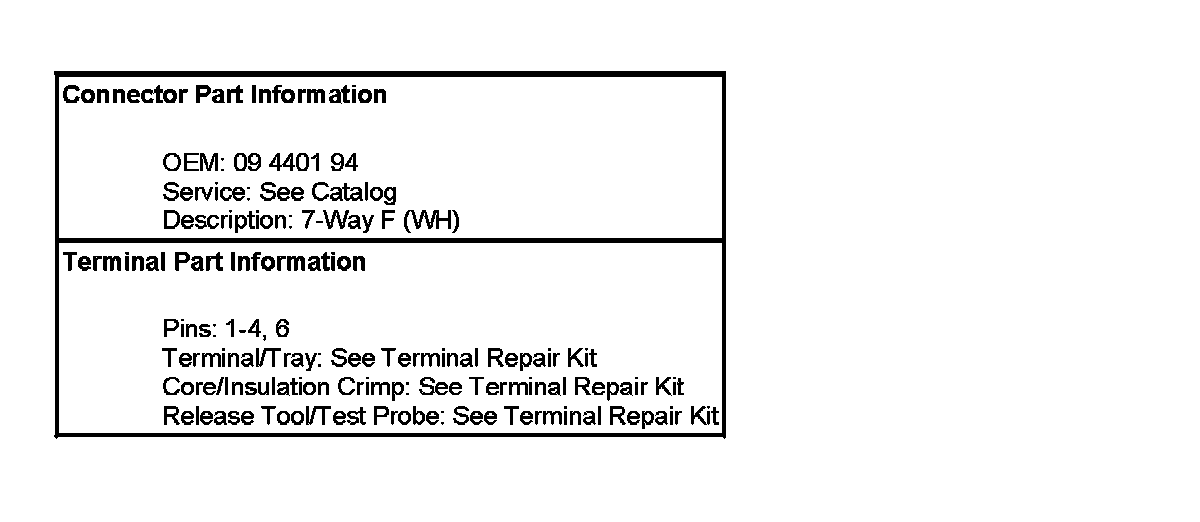

Fan Control Module:

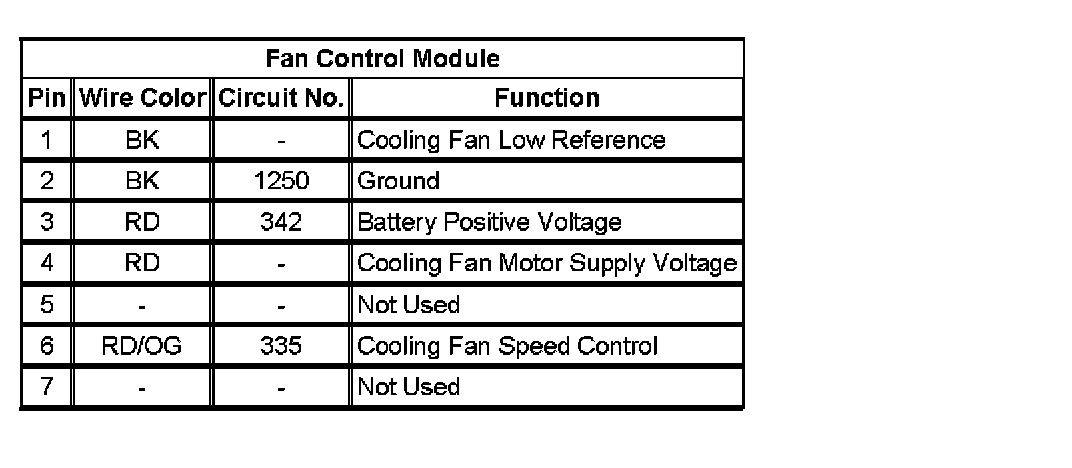

Fan Control Module:
