Home >> Chevrolet >> 2007 >> Corvette V8-7.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

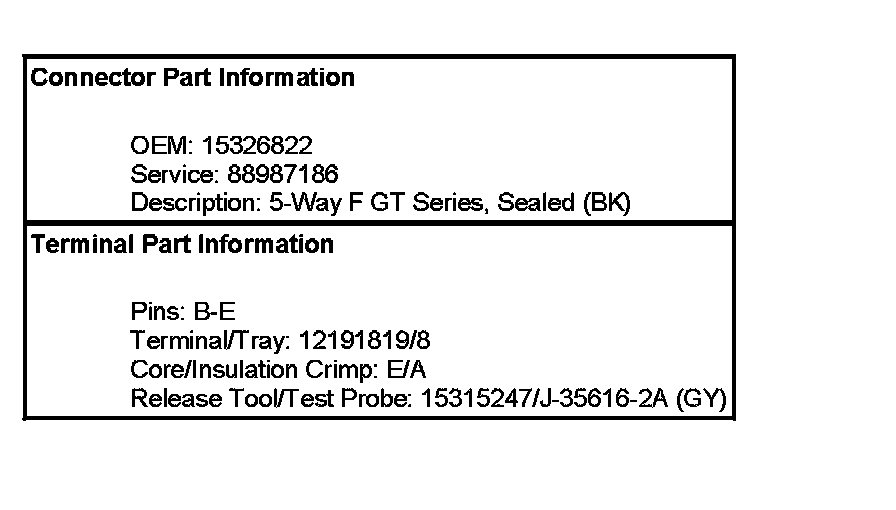

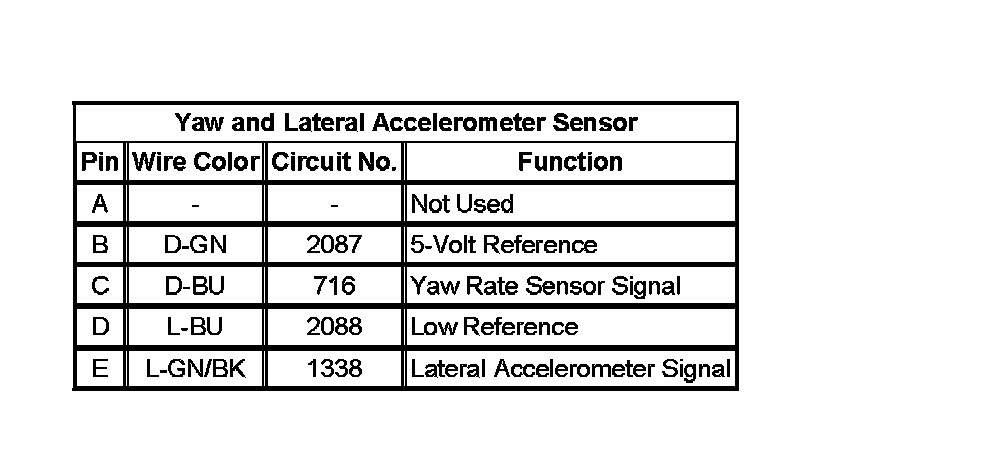

Yaw and Lateral Accelerometer Sensor







Yaw And Lateral Accelerometer Sensor:
