Engine Control Module



Engine Control Module Connector End Views

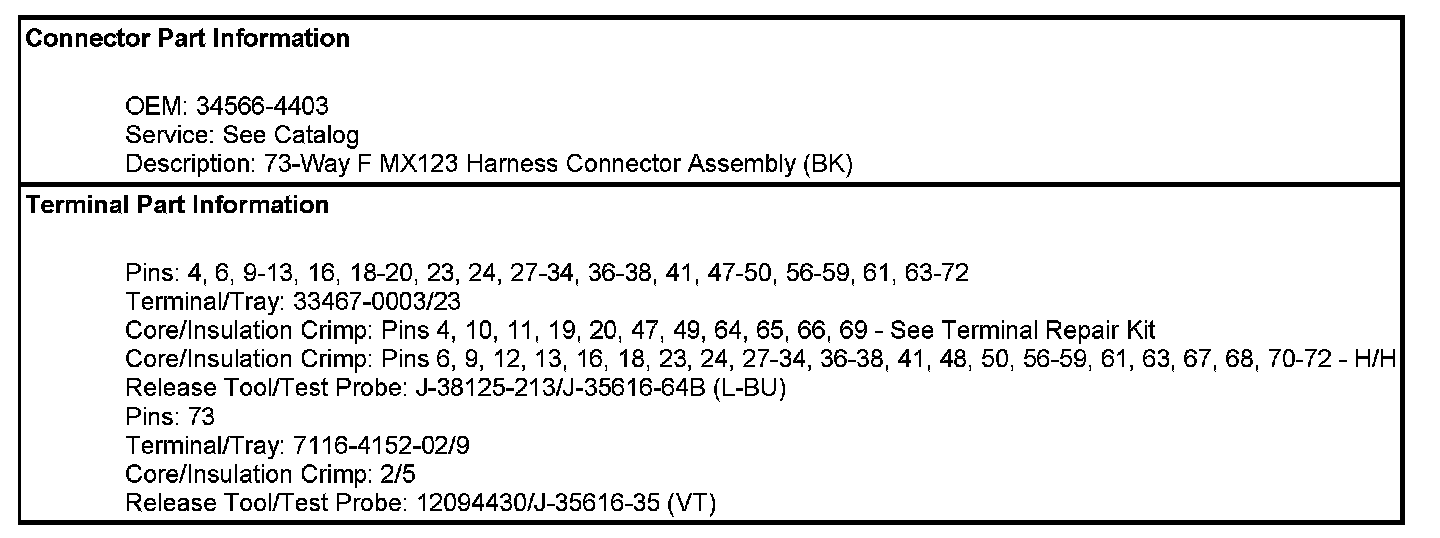

Engine Control Module (ECM) C1

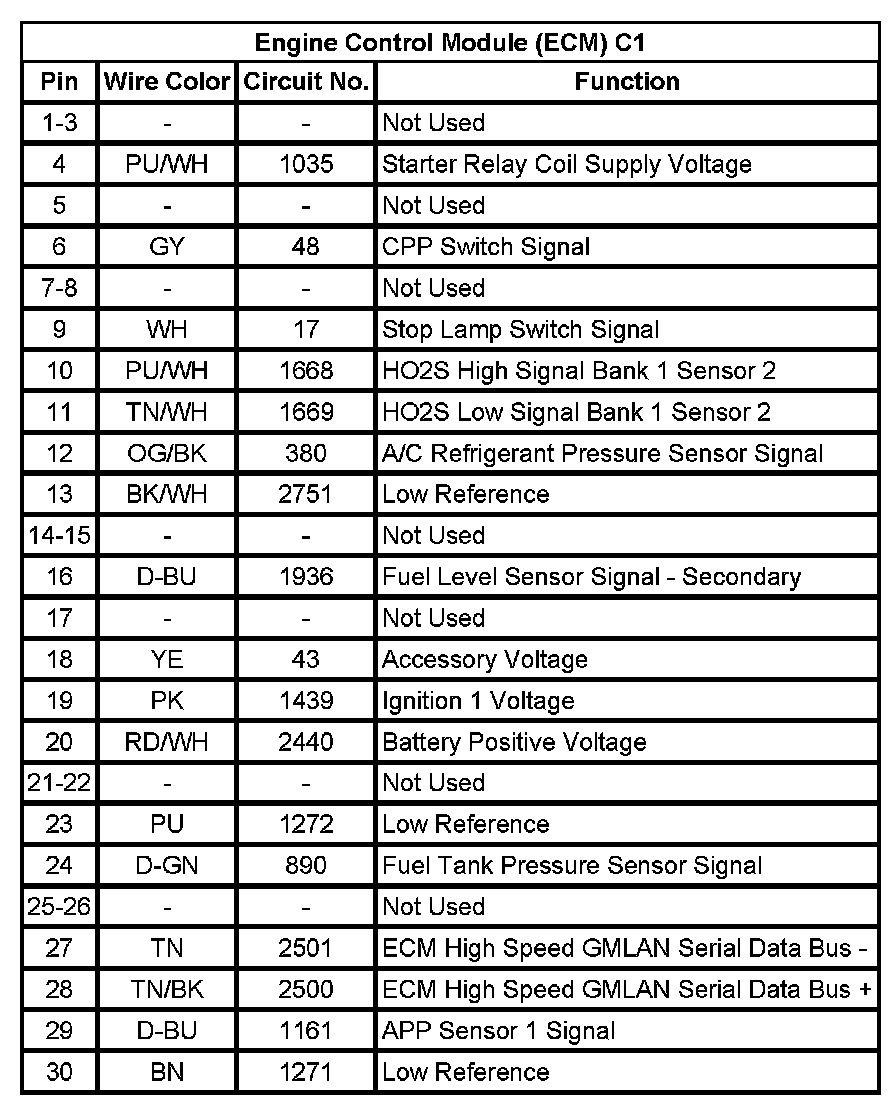

Engine Control Module (ECM) C1 (Pin 1 To 30):

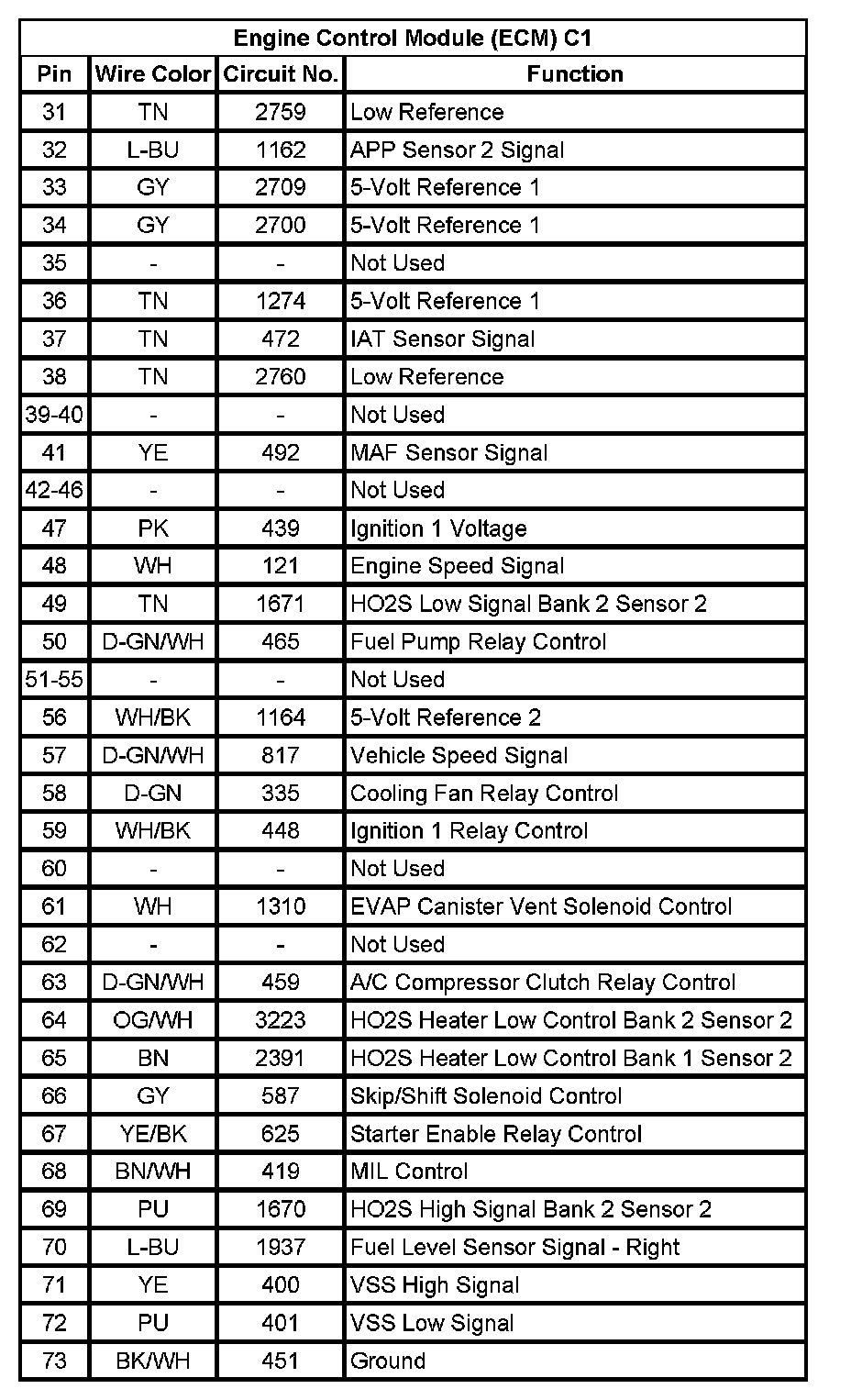

Engine Control Module (ECM) C1 (Pin 31 To 73):

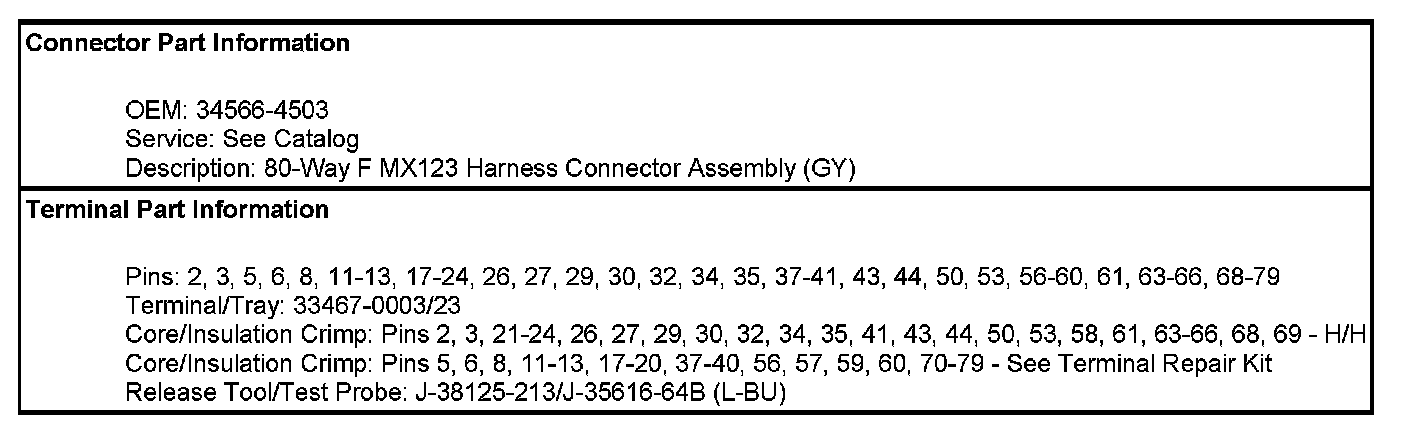

Engine Control Module (ECM) C2

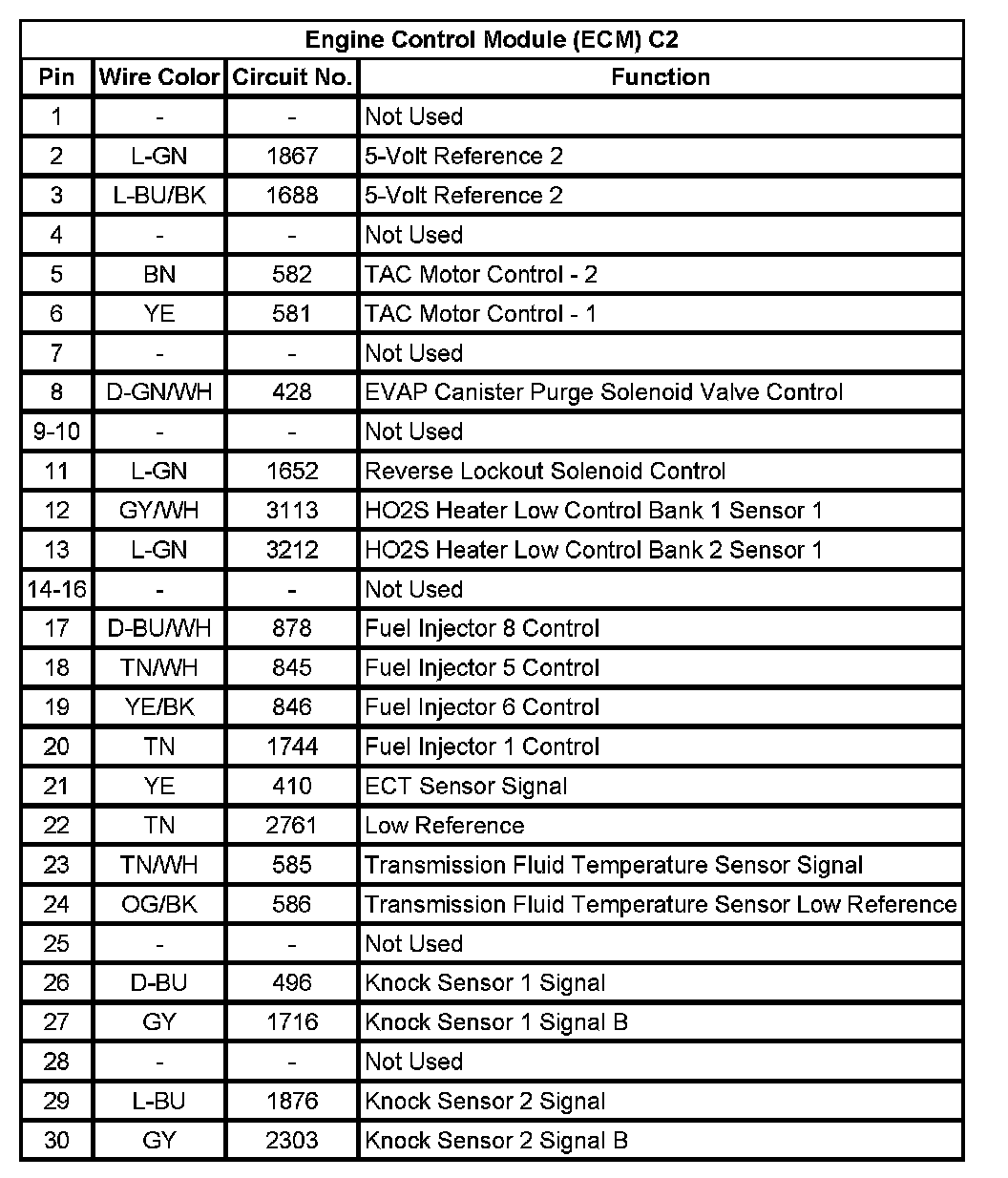

Engine Control Module (ECM) C2 (Pin 1 To 30):

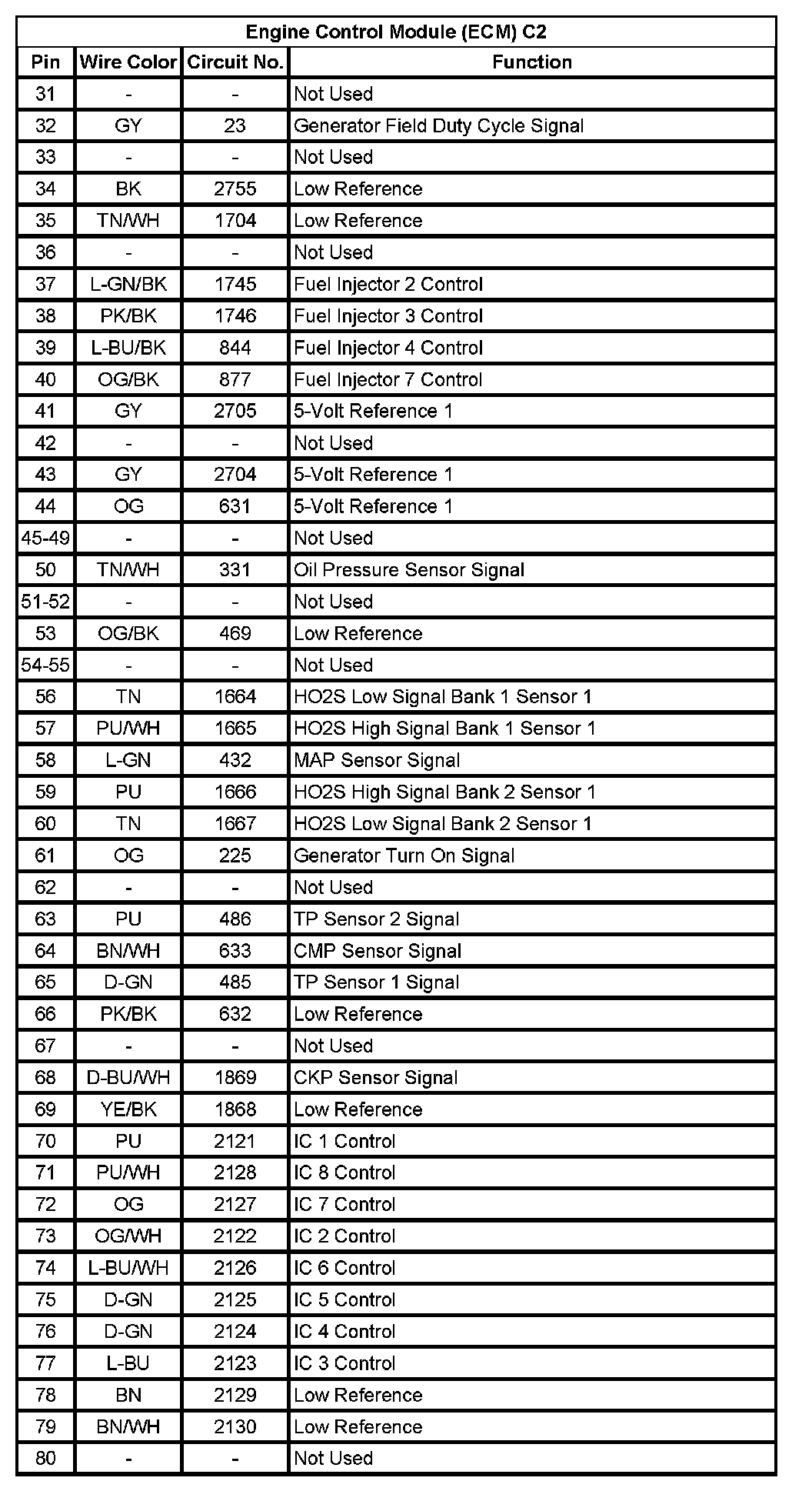

Engine Control Module (ECM) C2 (Pin 31 To 80):
