Home >> Chevrolet >> 2007 >> Corvette V8-7.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

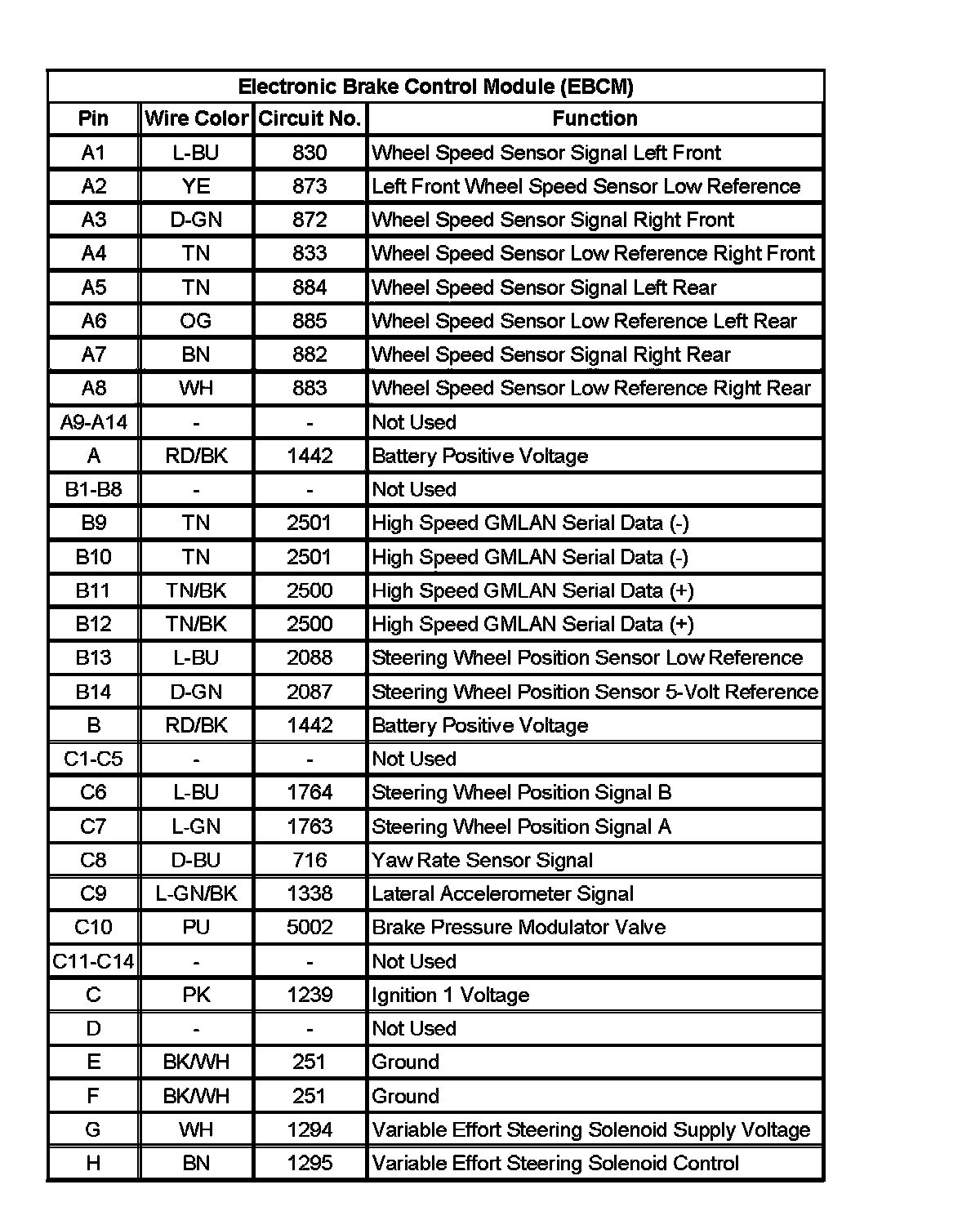

Electronic Brake Control Module (EBCM)

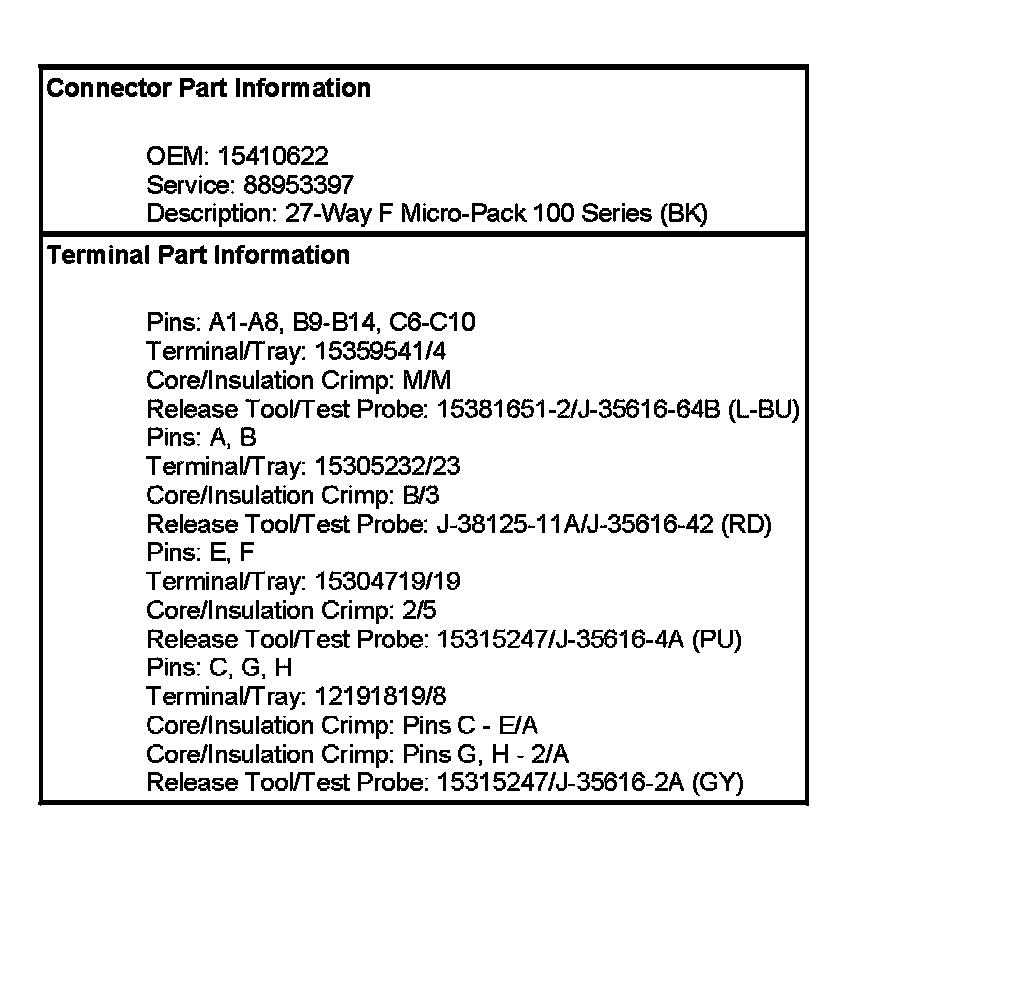

Electronic Brake Control Module (EBCM):
