Convertible Top Control Module



Folding Top Connector End Views

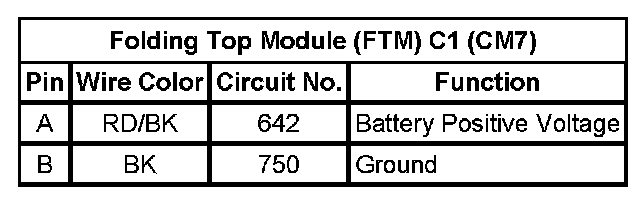

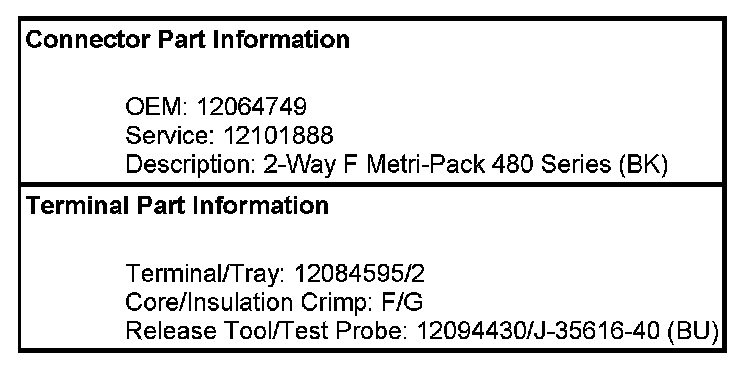

Folding Top Module (FTM) C1 (CM7)

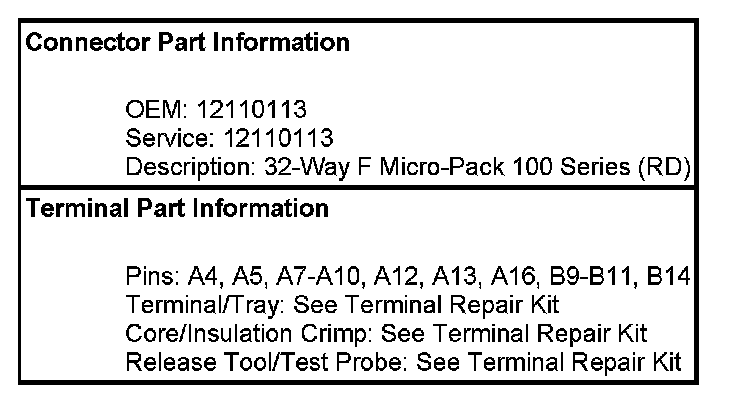

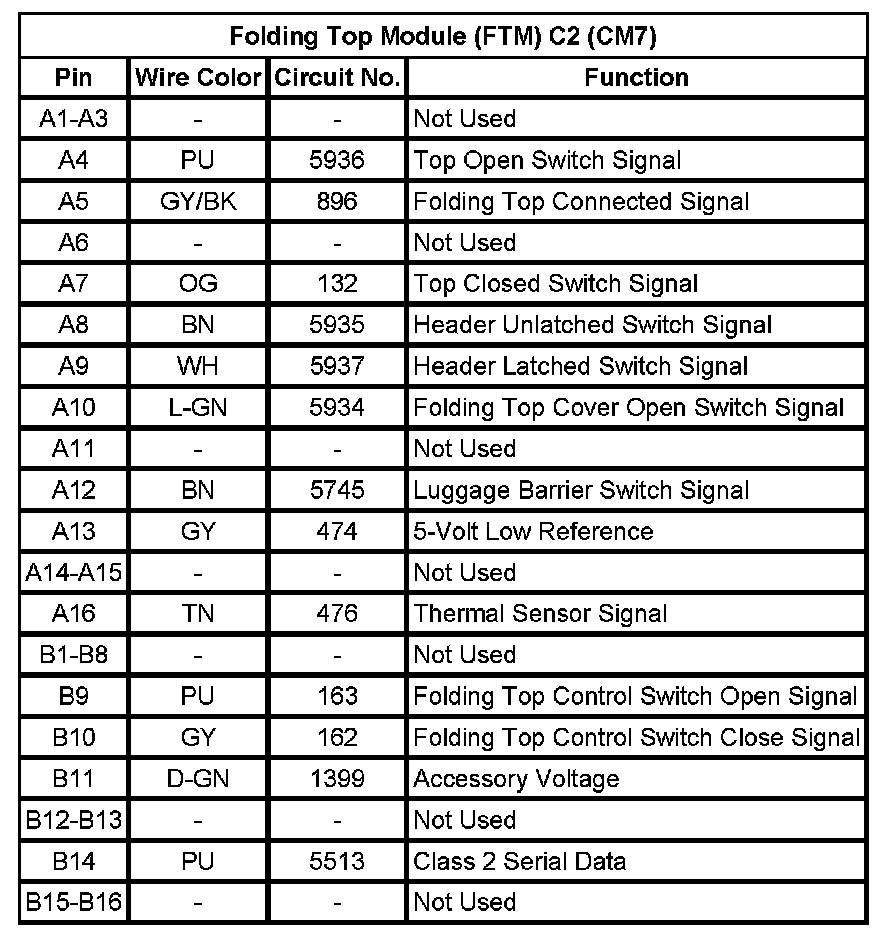

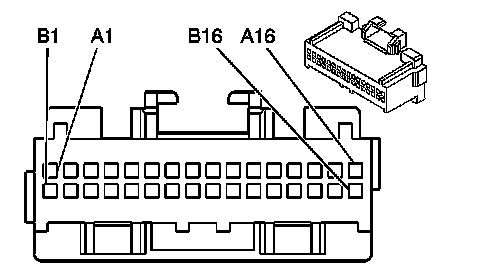

Folding Top Module (FTM) C2 (CM7)

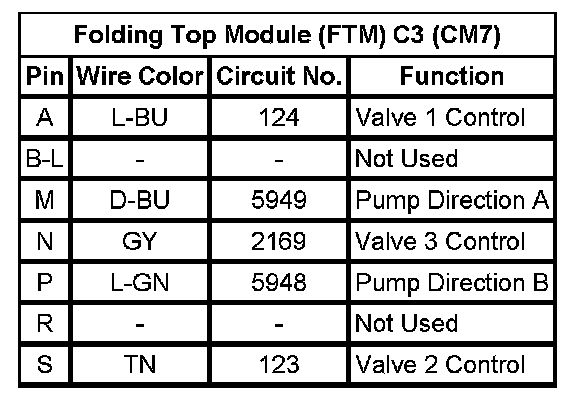

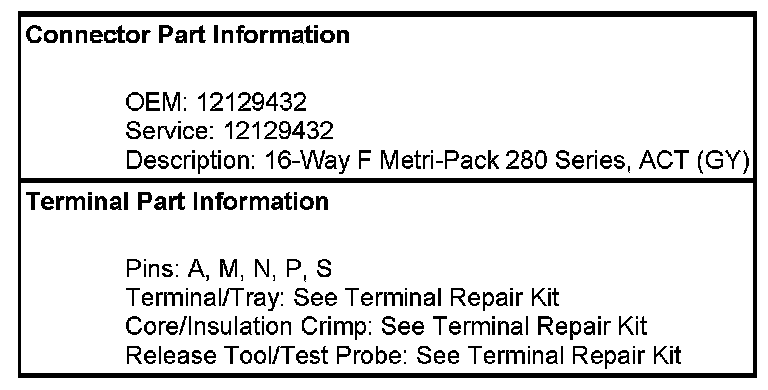

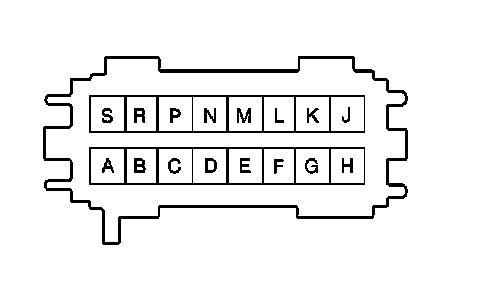

Folding Top Module (FTM) C3 (CM7)
