Home >> Chevrolet >> 2007 >> Corvette V8-7.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Active Exhaust System Control Module >> Exhaust Tail Pipe Flow Valve Control Module C1

Exhaust Tail Pipe Flow Valve Control Module C1



Exhaust Tail Pipe Flow Valve Control Module C1

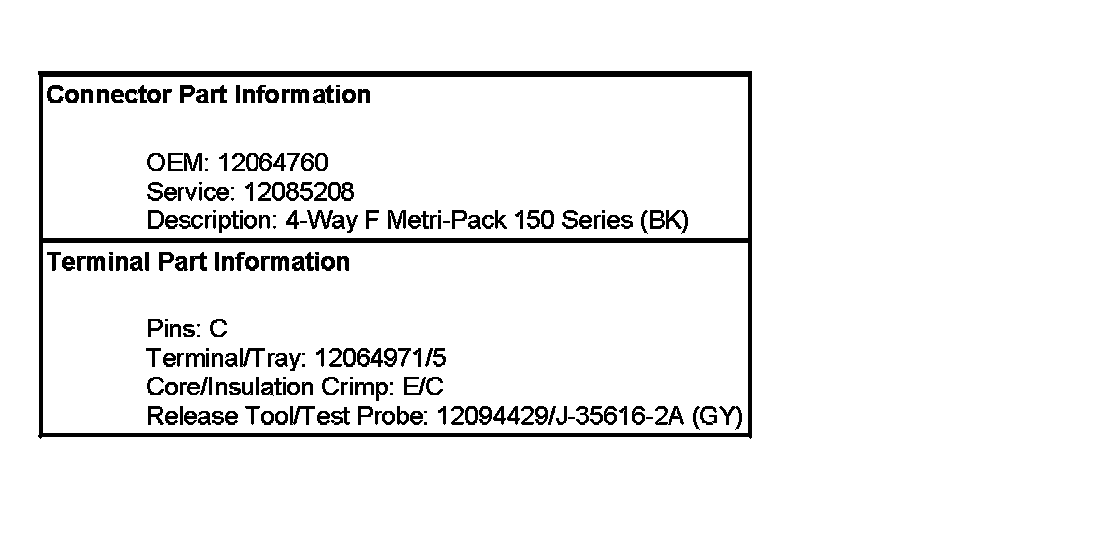

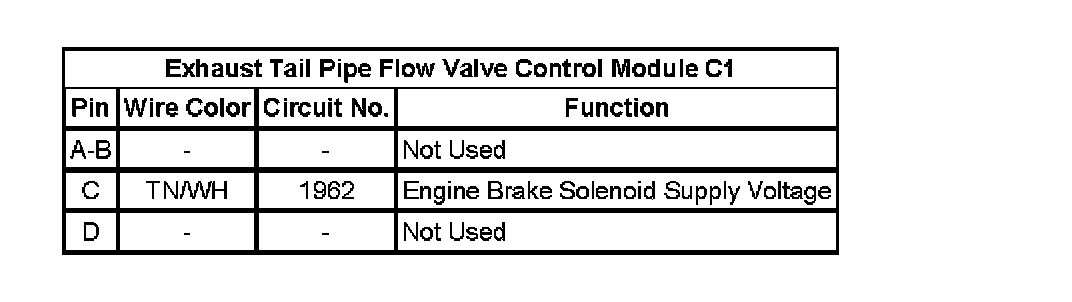

Exhaust Tail Pipe Flow Valve Control Module C1:
