Memory Positioning Module: Diagrams

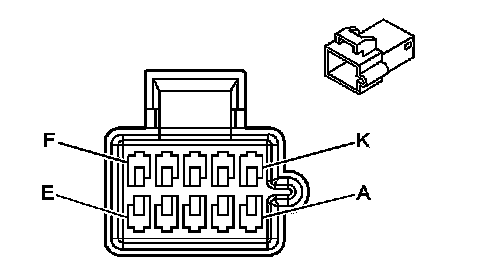

Power Seat Connector End Views

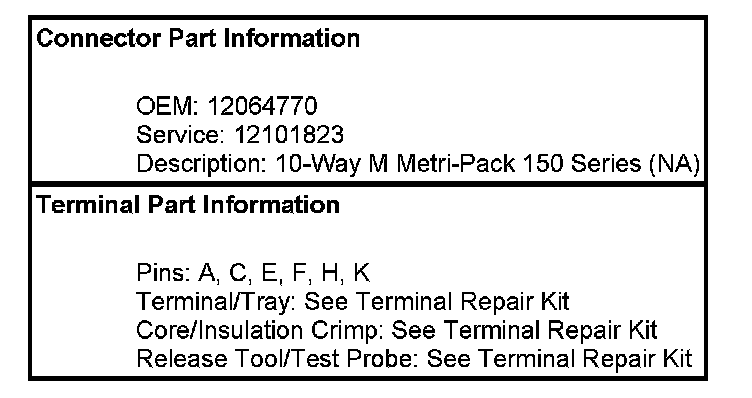

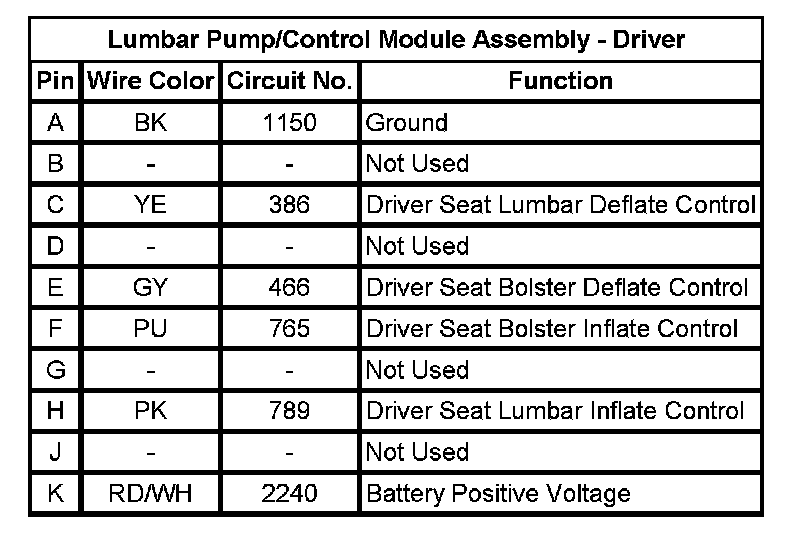

Lumbar Pump/Control Module Assembly - Driver

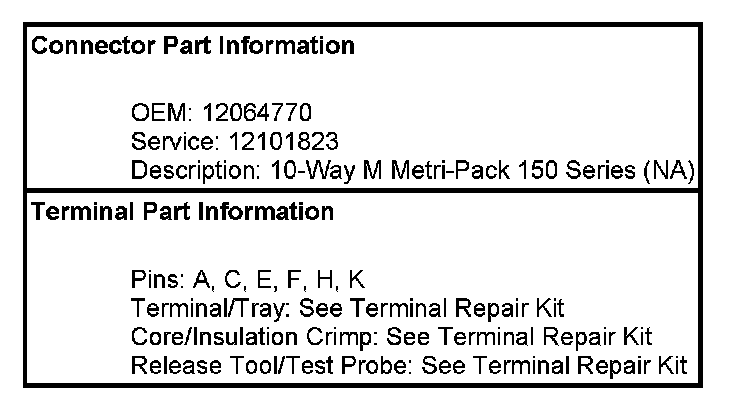

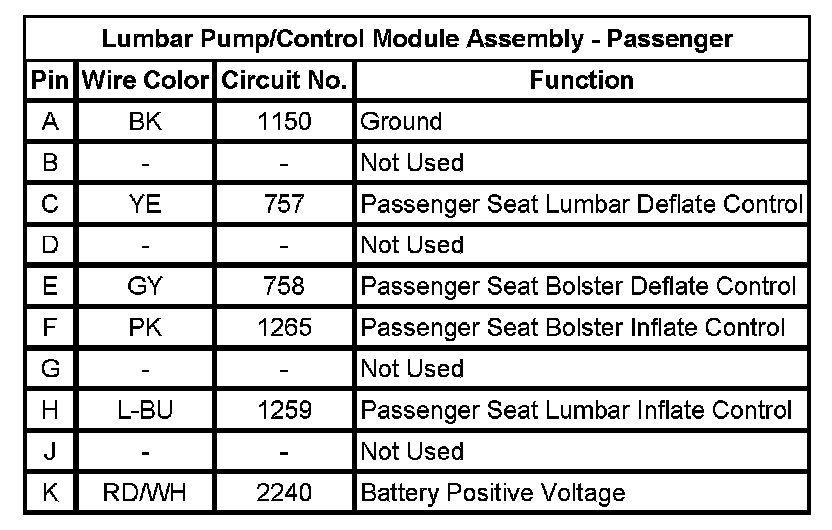

Lumbar Pump/Control Module Assembly - Passenger

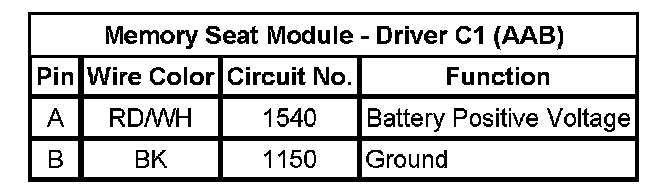

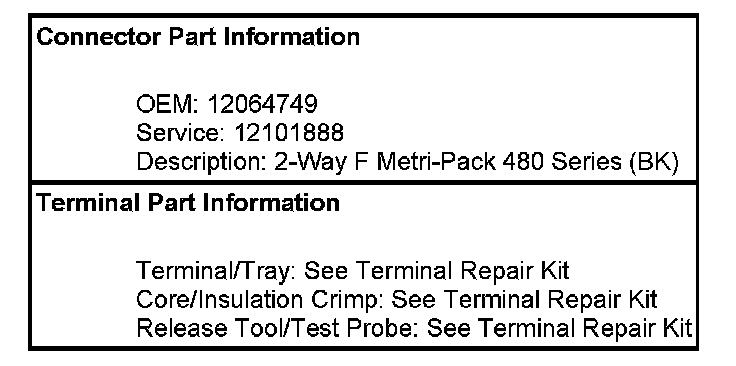

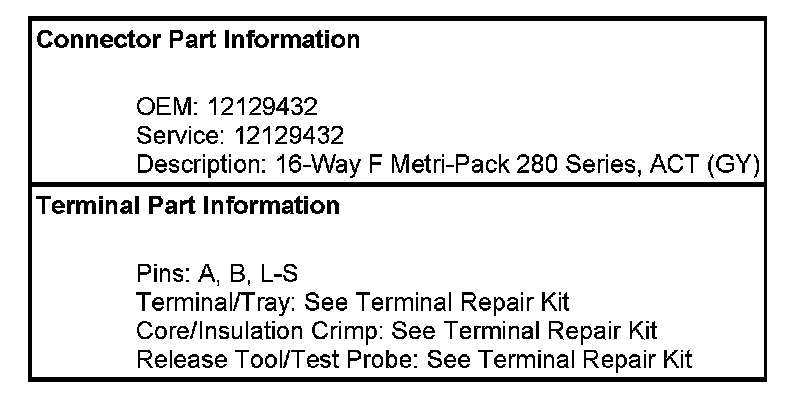

Memory Seat Module - Driver C1 (AAB)

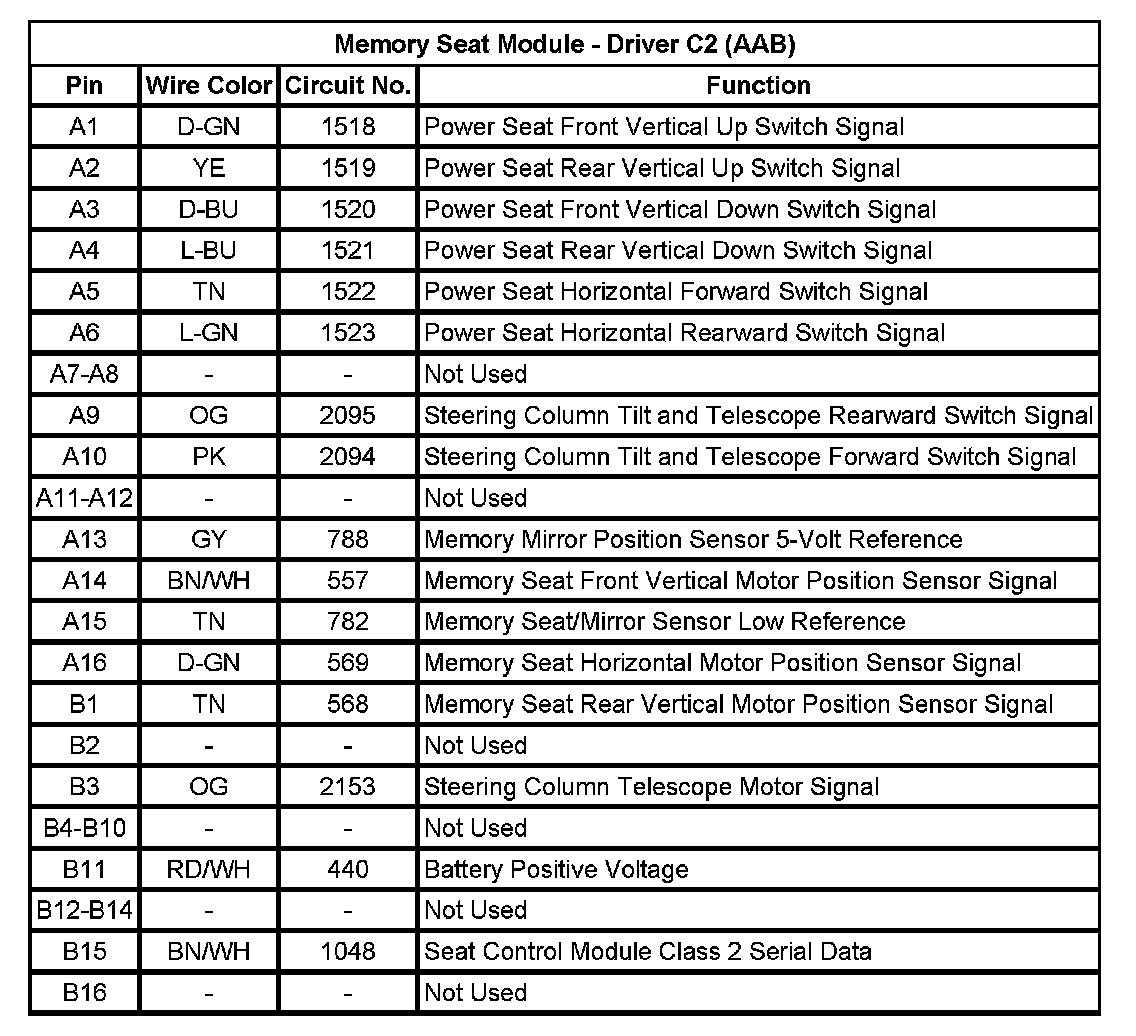

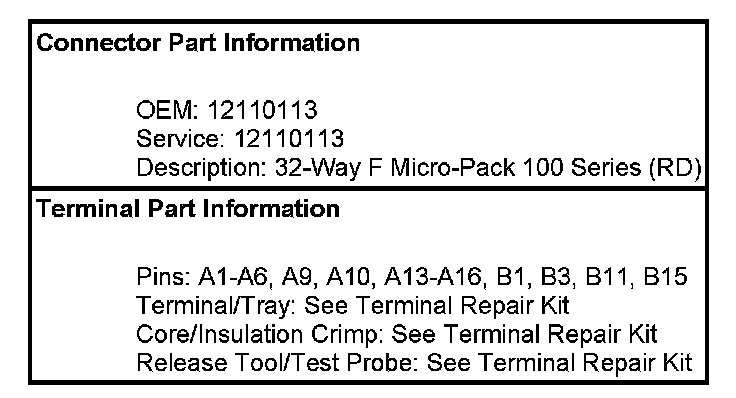

Memory Seat Module - Driver C2 (AAB)

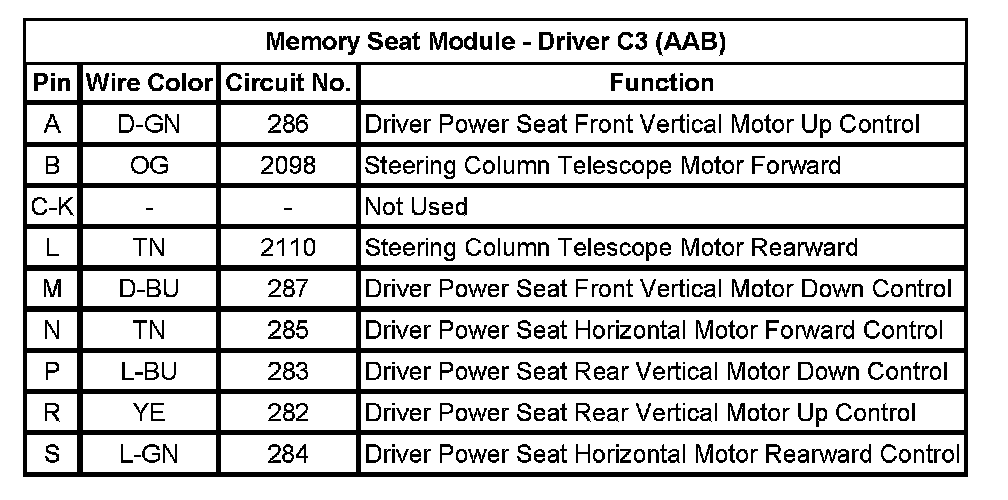

Memory Seat Module - Driver C3 (AAB)
