Control Module, Transfer Case
Control Module, Transfer Case
Transfer Case Control Connector End Views

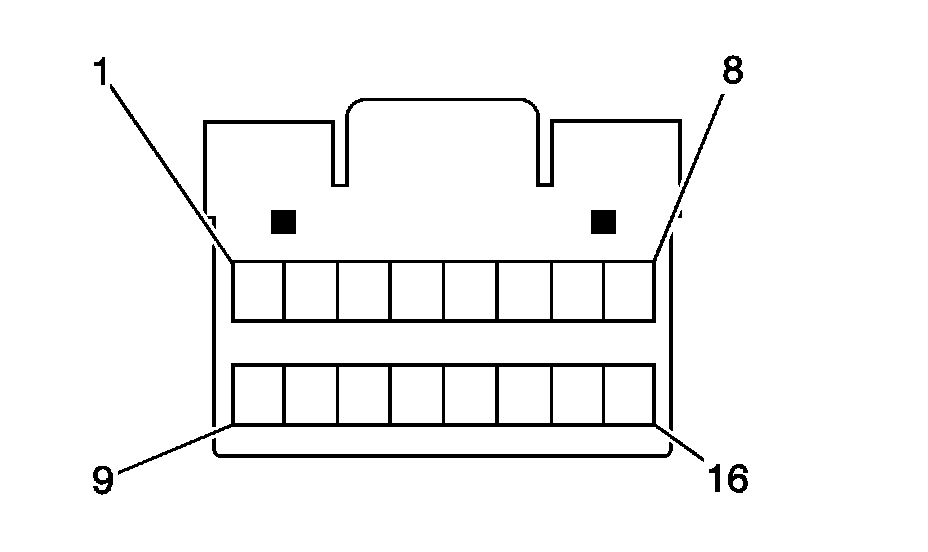

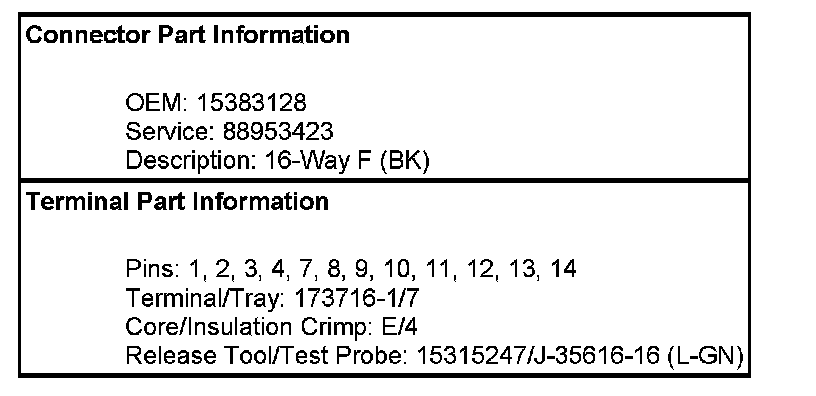

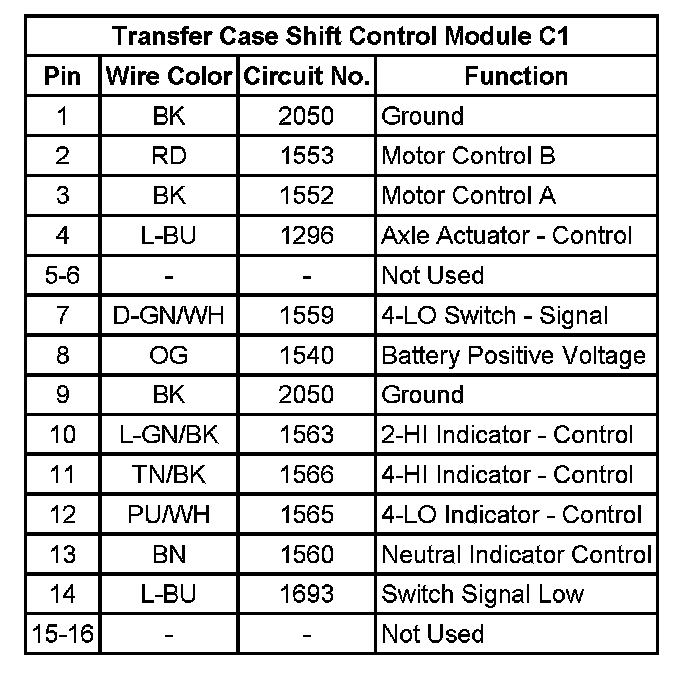

Transfer Case Shift Control Module C1:

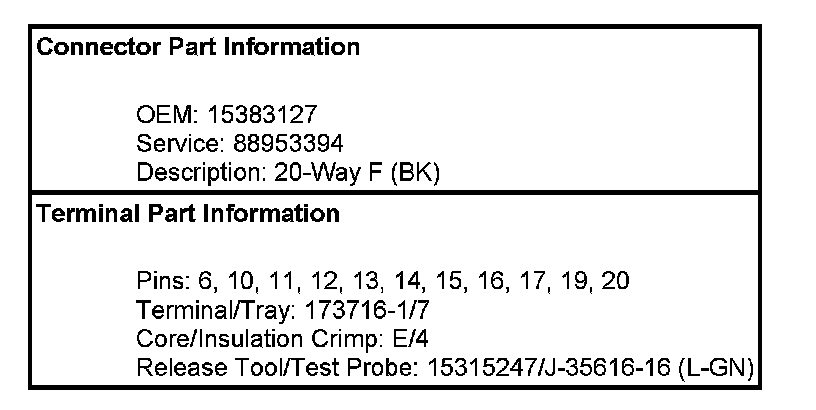

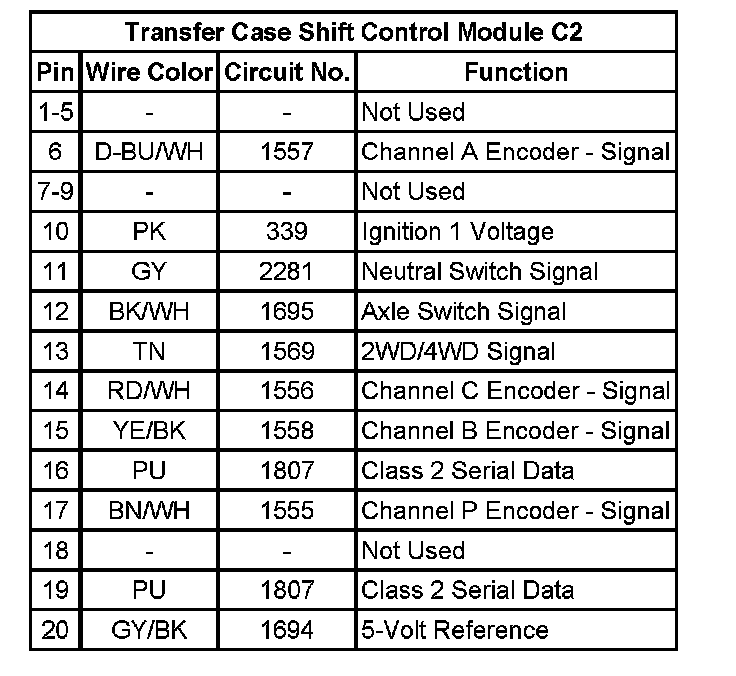

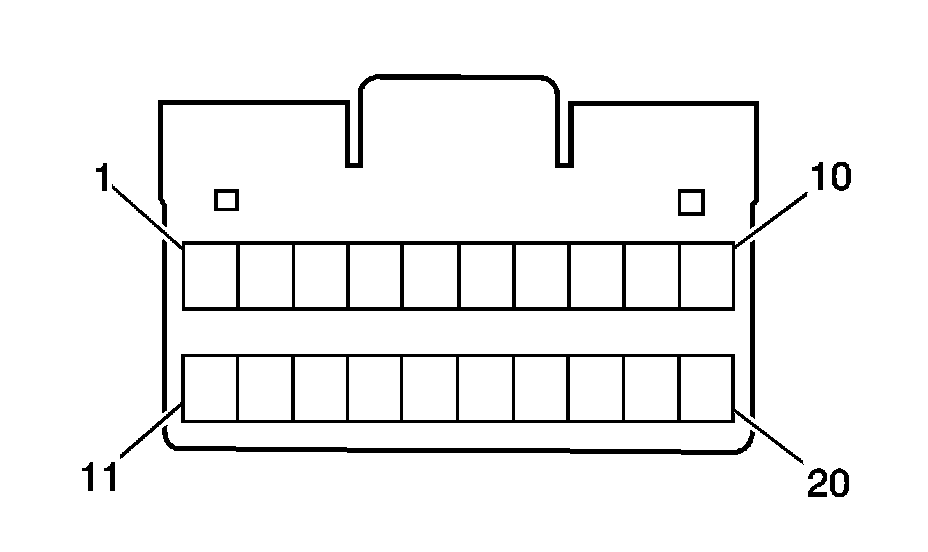

Transfer Case Shift Control Module C2:
