Home >> Chevrolet >> 2007 >> Colorado 4WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer



Longitudinal Accelerometer Sensor (4WD)

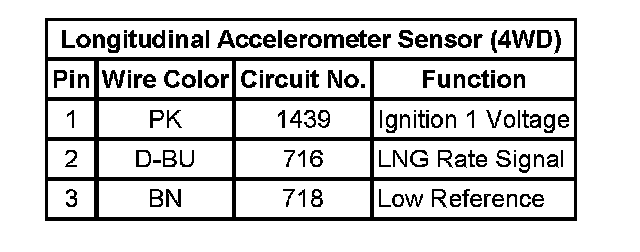

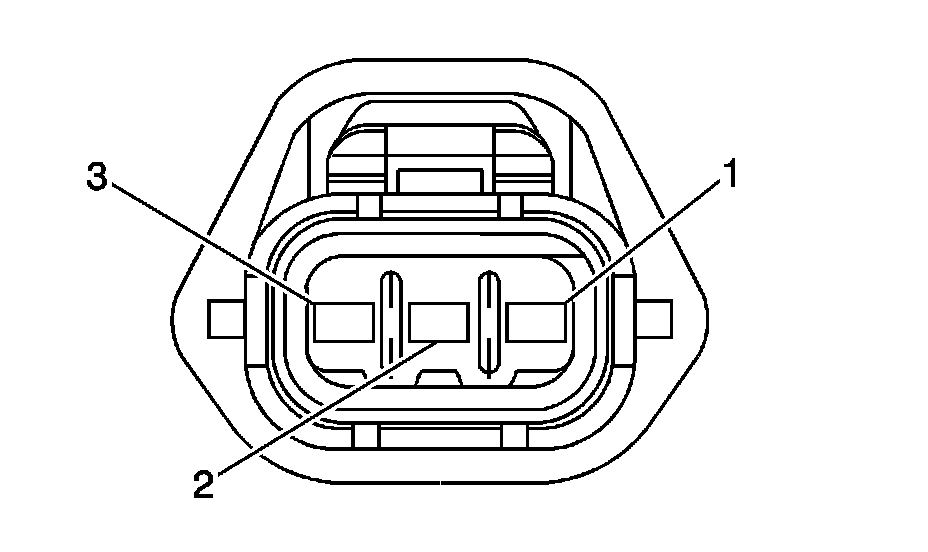

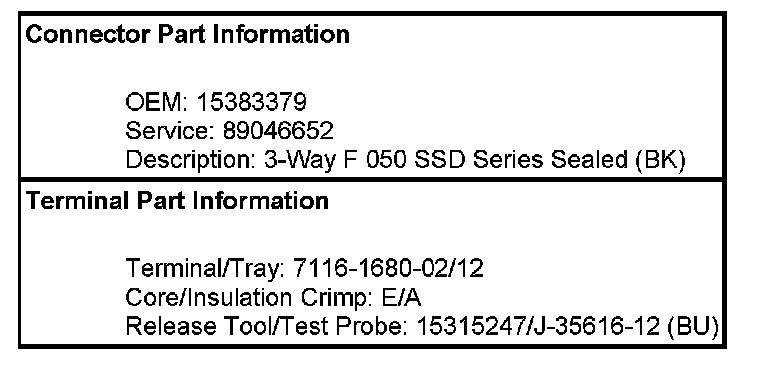

Longitudinal Accelerometer Sensor (4WD):
