Home >> Chevrolet >> 2007 >> Colorado 2WD L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Flow Meter/Sensor

Air Flow Meter/Sensor

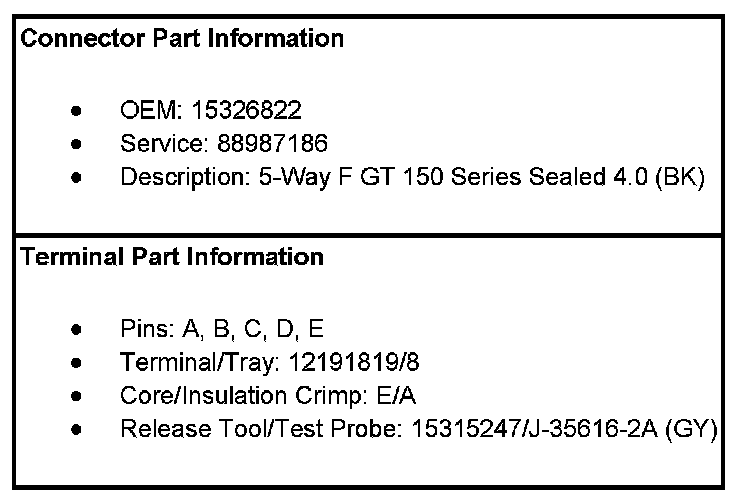

Engine Controls Connector End Views

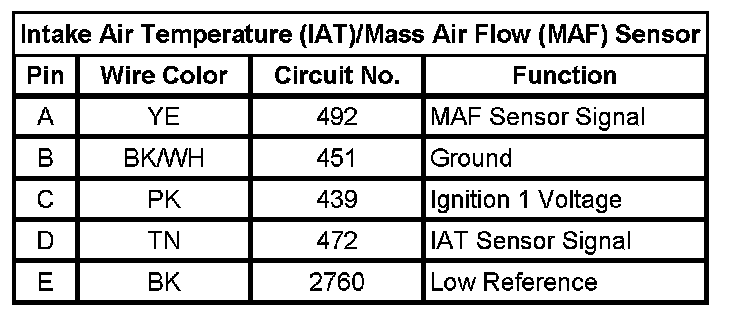

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
