Vehicle Speed Sensor: Diagrams

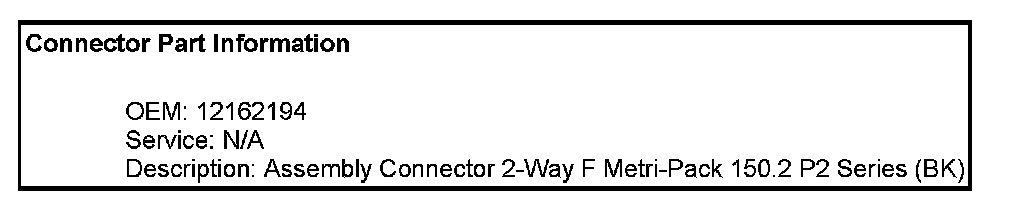

Automatic Transmission Related Connector End Views

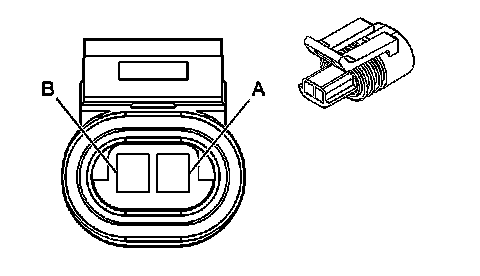

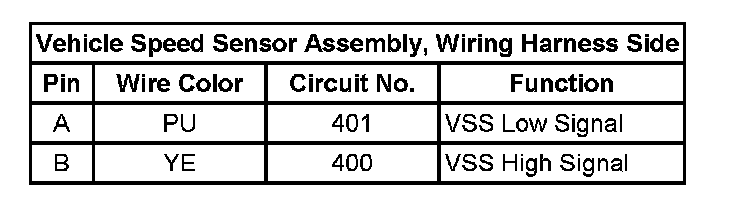

Vehicle Speed Sensor Assembly, Wiring Harness Side:
