Transmission Position Sensor/Switch: Diagrams

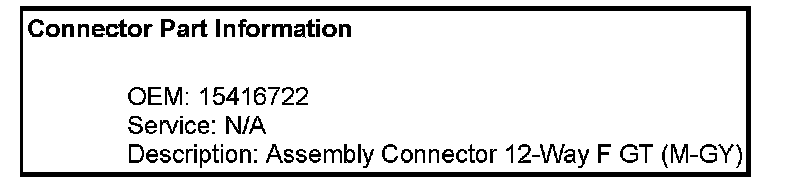

Automatic Transmission Related Connector End Views

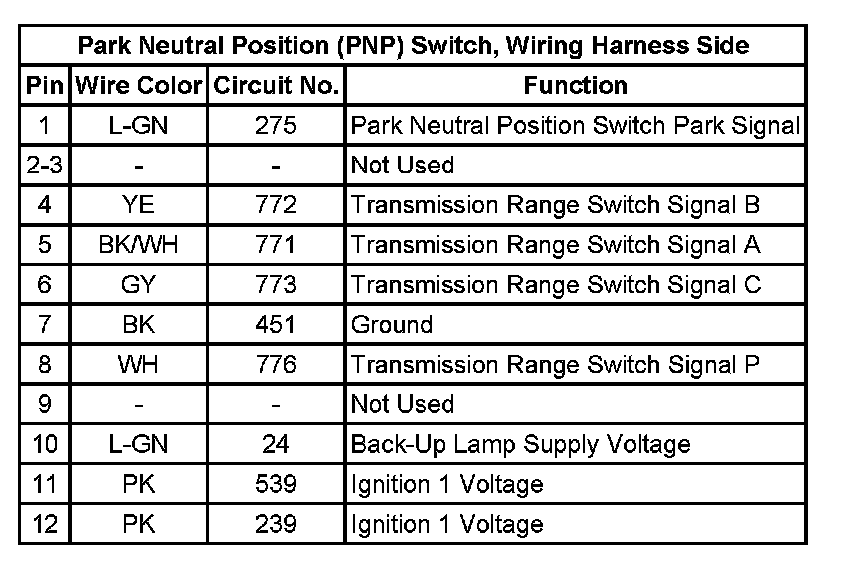

Park Neutral Position (PNP) Switch, Wiring Harness Side:
