Home >> Chevrolet >> 2007 >> Colorado 2WD L4-2.9L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

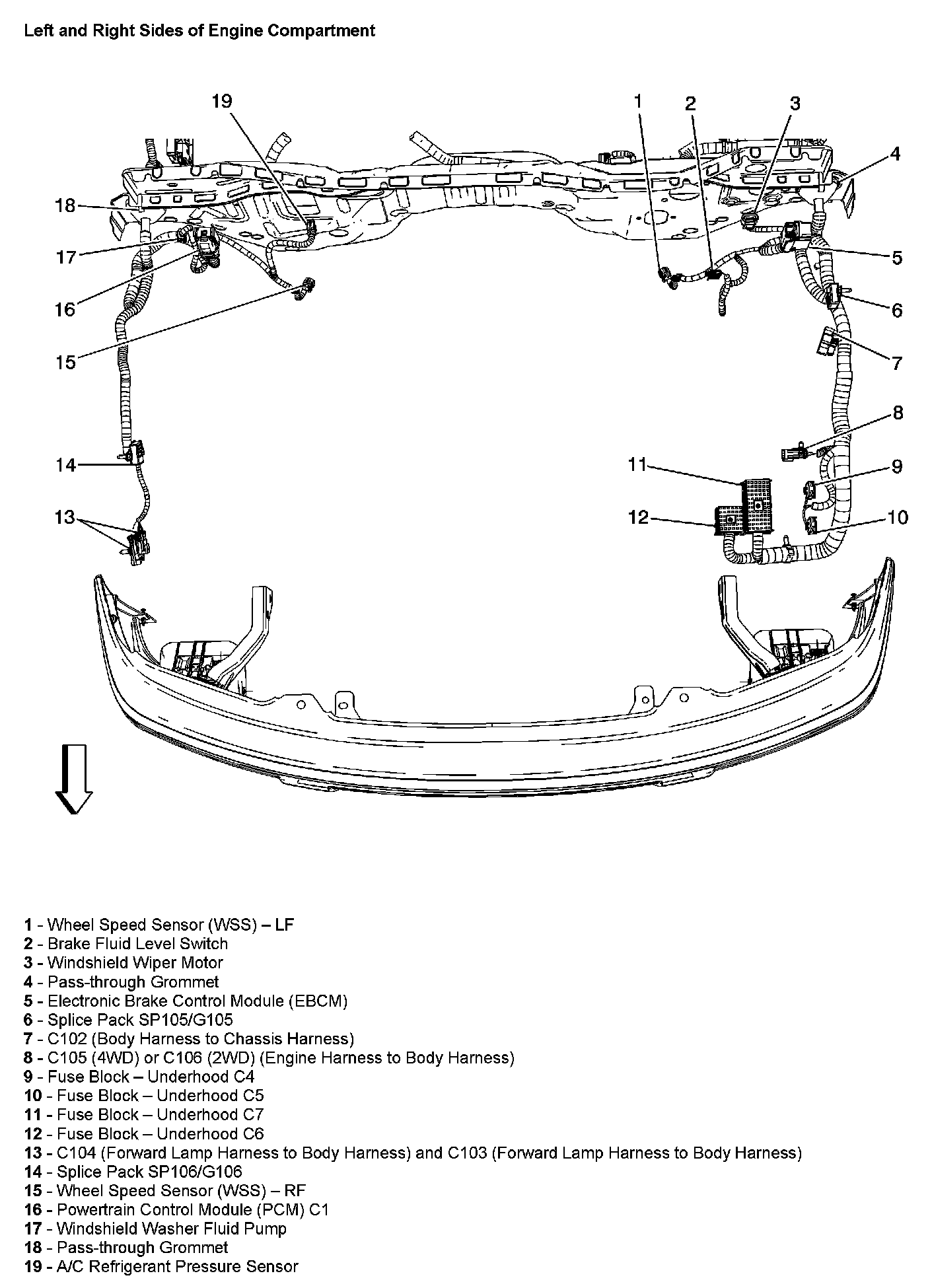

Left And Right Sides Of Engine Compartment:
