HVAC Module Assembly Subsystem Views
HVAC Component Views

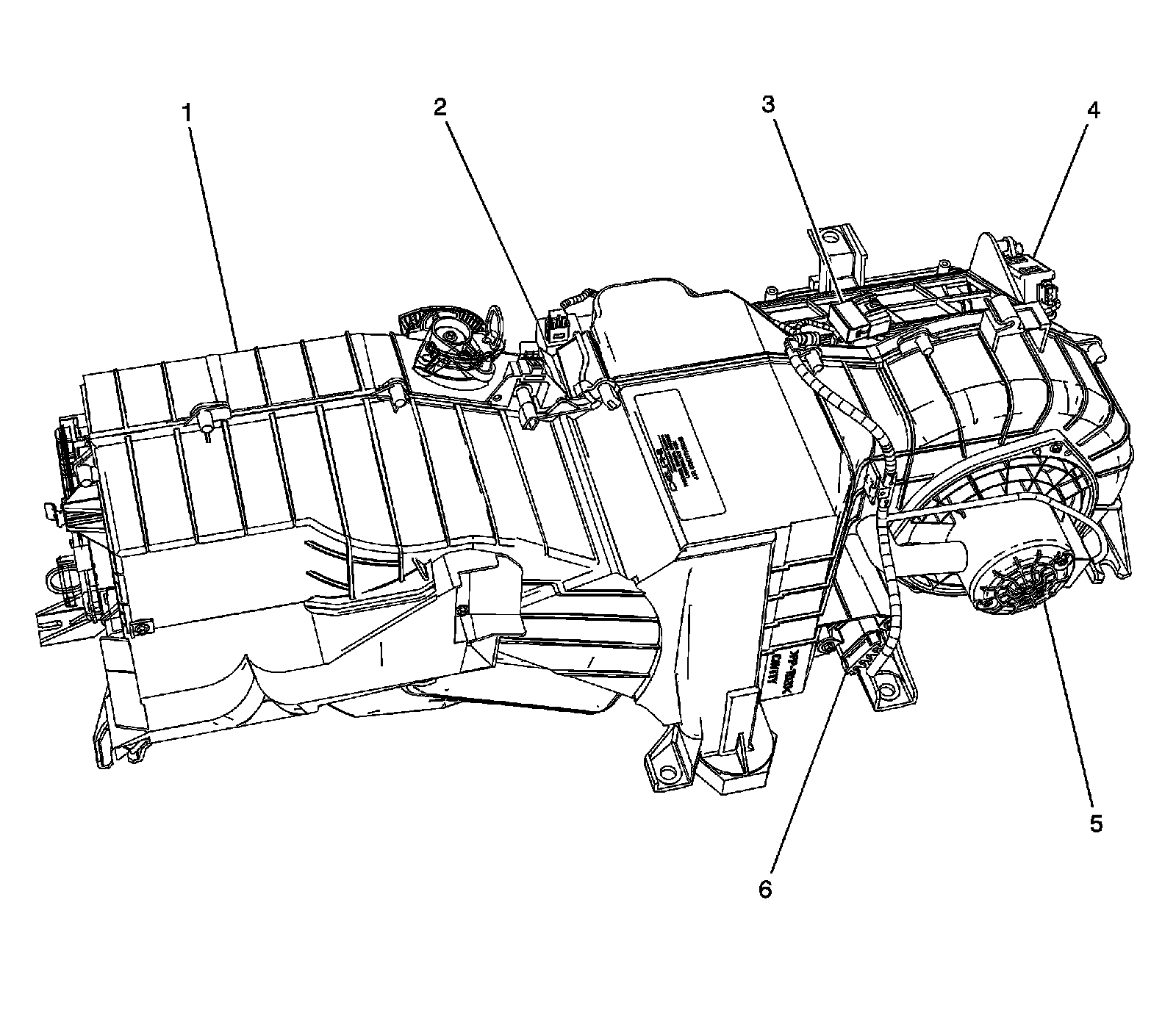

HVAC Module Assembly Subsystem Views
1 - HVAC Module Assembly
2 - Evaporative Temperature Sensor
3 - C203
4 - Recirculation Actuator
5 - Blower Motor
6 - Blower Motor Resistor Assembly
HVAC Component Views
HVAC Module Assembly Subsystem Views
1 - HVAC Module Assembly
2 - Evaporative Temperature Sensor
3 - C203
4 - Recirculation Actuator
5 - Blower Motor
6 - Blower Motor Resistor Assembly
